Commercial Gym Owners and Operators

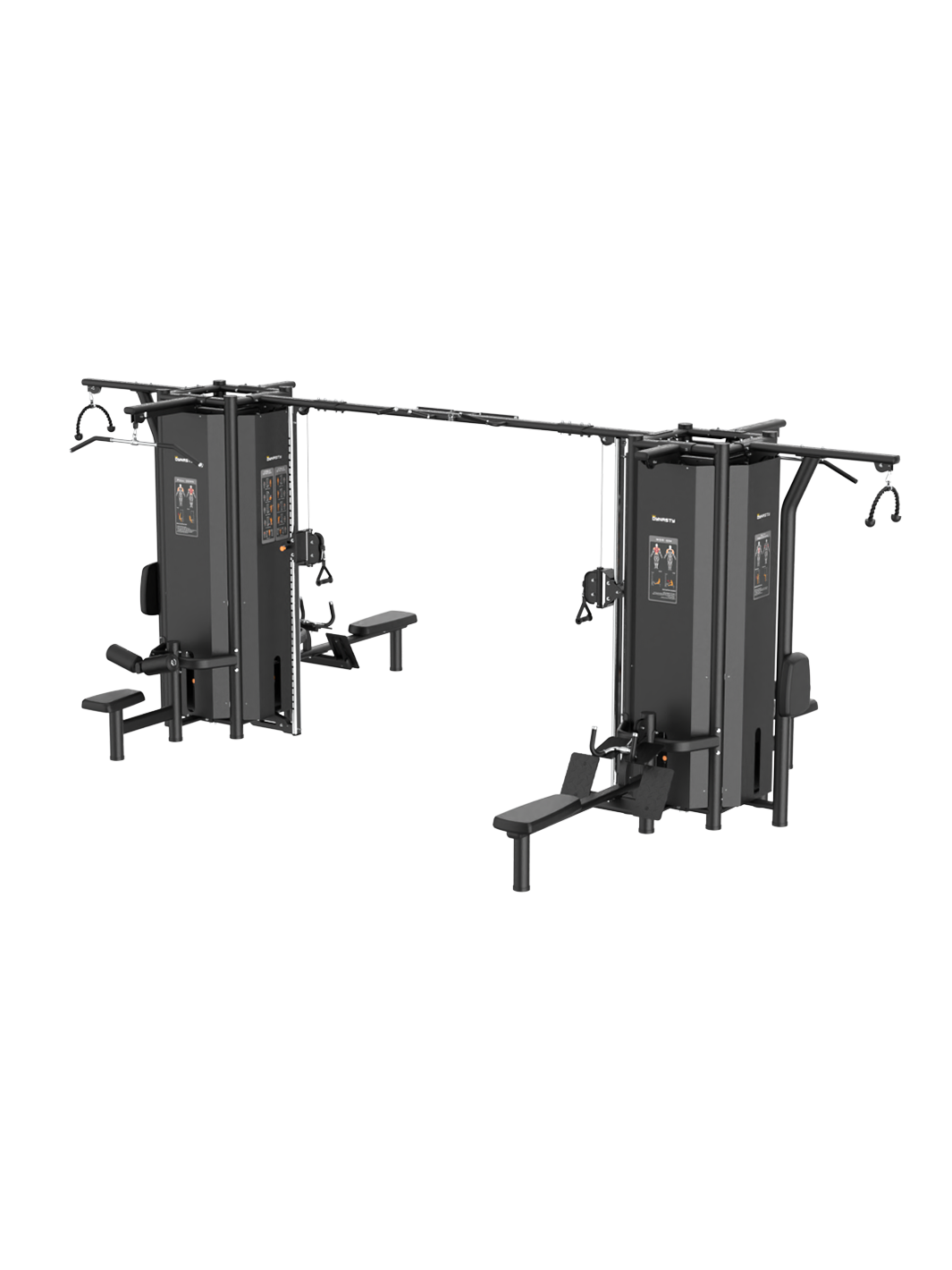

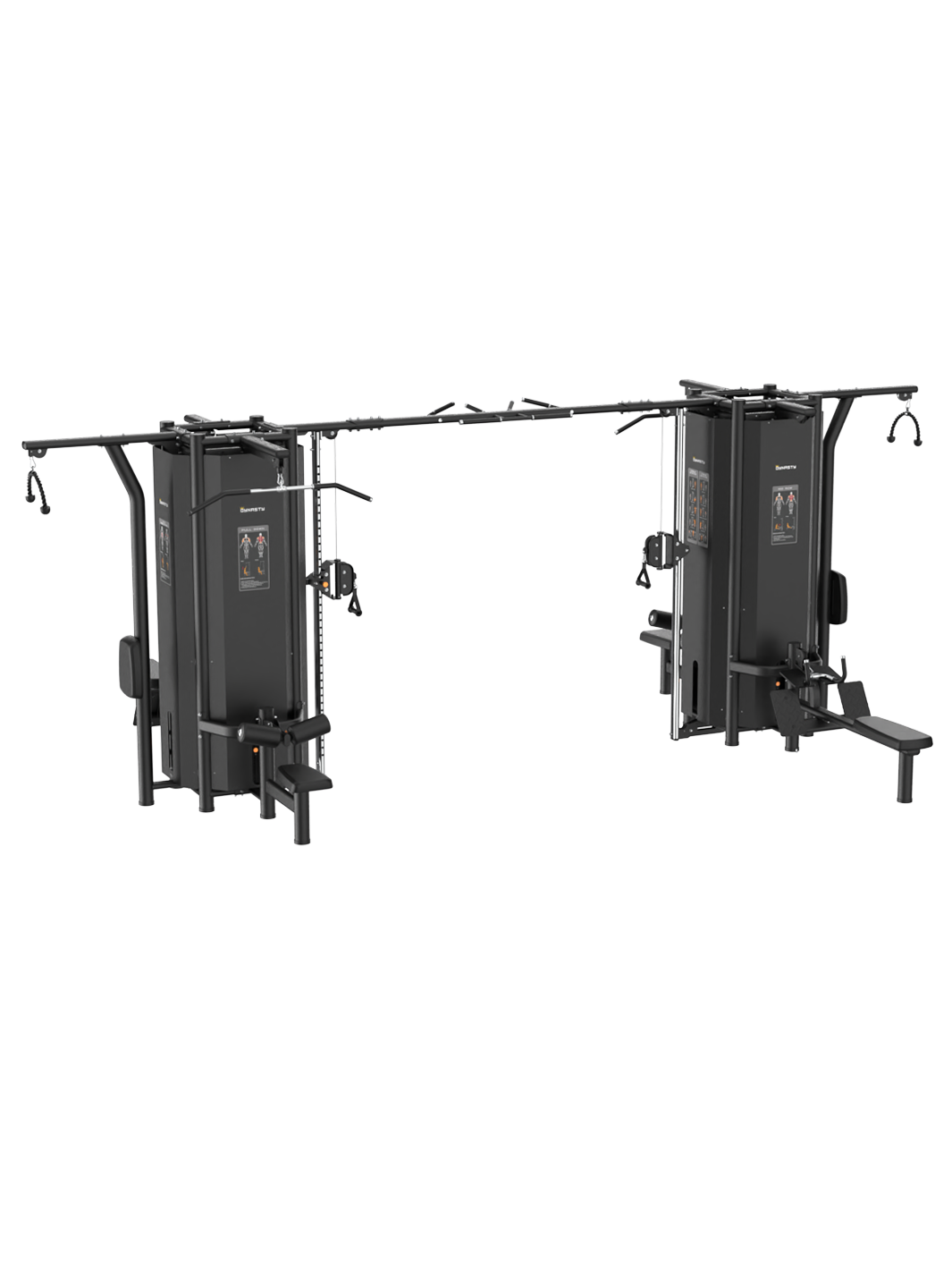

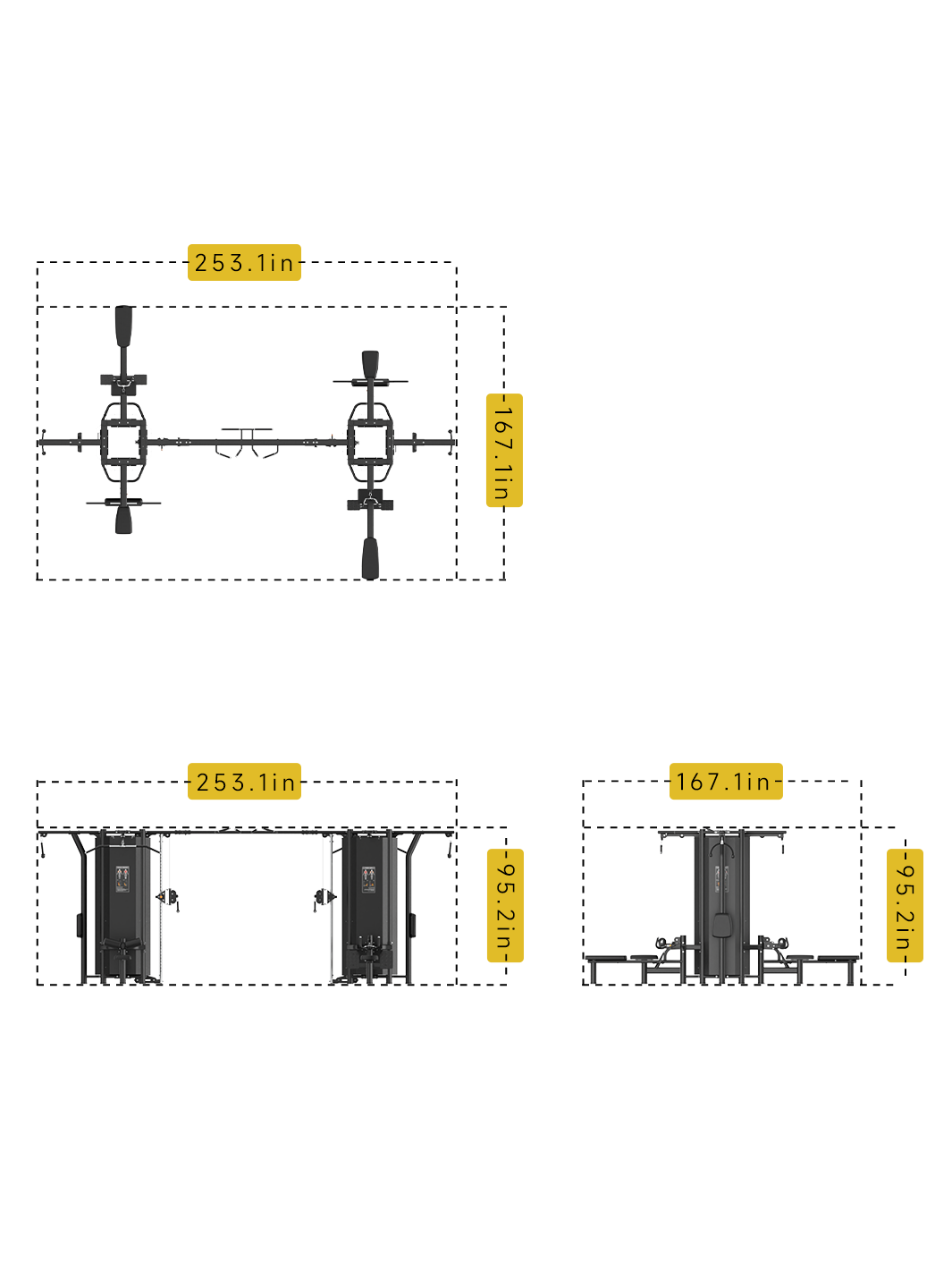

The DRE8039 is the highest-capacity cable station in the DRE80 lineup, designed specifically for facilities where eight concurrent cable users is a realistic peak-hour demand. Two lat pulldown positions, two low row positions, and two triceps pushdown positions mean the three most contested cable exercise stations in any commercial facility can each serve two users simultaneously — which is the difference between a cable zone that keeps members moving and one that creates queues. At 3,461 lbs and 253"×167" it is a permanent installation that becomes the structural anchor of a commercial training floor.

University and College Athletic Departments
Team cable training sessions with large rosters require the kind of throughput only an 8-stack configuration provides. The DRE8039 allows a coach to run eight athletes through pulldown, row, pushdown, and functional cable work simultaneously — effectively completing a full cable training block for a squad of eight in a single rotation without any athlete waiting. The ANSI/GB-conforming low row height and the 3-position lat pulldown thigh pad cover the full size range of a diverse athlete roster.

High-Volume Training Centres and Hotel Gyms
Any facility with unpredictable peak hour volumes — hotel gyms, corporate wellness centres, large HOA facilities — benefits from the DRE8039's ability to absorb demand spikes across eight independent positions without any single stack being shared. Members training during a busy period never encounter the "in use" constraint on any of the six dedicated module positions, and the Large Dual Pulley Module provides two additional simultaneous positions for cable fly, crossover, and functional work.

Physical Therapists and Sports Medicine Practitioners
At clinical scale — rehabilitation centres, sports medicine clinics, or physical therapy departments serving multiple practitioners simultaneously — the DRE8039 provides the cable exercise capacity of eight independent stations from one structure. Two practitioners can run lat pulldown rehabilitation protocols on separate patients simultaneously at different loads, two can run row protocols, two can run pushdown protocols, and the Large Dual Pulley Module serves functional cable exercise at any height for two additional patients concurrently.

Setting Up Any Lat Pulldown Module (×2)

1. Select the working weight on the chosen lat pulldown stack pin — each of the two lat pulldown modules has its own independent selector pin.
2. Adjust the V-shaped thigh pad to one of three positions for the user's thigh length and confirm it anchors firmly across both thighs.
3. Sit with thighs under the pad and grip the handle at the chosen width. Confirm cable tension before beginning.
4. Pull downward by driving elbows toward the sides, using the high-mounted pulley's extended range to initiate the pull from a deeper overhead stretch than standard pulldown machines provide. Return under full control.

Setting Up Any Low Row Module (×2)

1. Select the working weight on the chosen low row stack pin — each of the two low row modules has its own independent selector pin.
2. Sit on the long-track seat and place both feet on the angled extra-wide foot platform. Allow the ankle to rest at its natural angle on the platform rather than forcing a flat position.
3. Grip the handle at the desired width and sit upright with lats engaged.
4. Row by driving elbows behind the body and retracting the shoulder blades to peak back contraction. Return under control through the full eccentric arc.

Setting Up Any Triceps Pushdown Module (×2)

1. Select the working weight on the chosen triceps pushdown stack pin — each of the two pushdown modules has its own independent selector pin.
2. Position with the back against the integrated back support pad. Confirm the pad anchors the torso vertically before beginning.
3. Attach the chosen handle — straight bar or rope — to the cable and grip firmly.
4. Keep upper arms close to the sides and push down to full elbow extension, squeezing the triceps at lockout. Return under control.

Setting Up the Large Adjustable Dual Pulley Module

1. Select the working weight on each of the two dual pulley stacks independently.
2. Set the pulley height on each column across the 32 available positions using the adjustment handle — press to release, slide to height, release to lock.
3. For bilateral exercises, confirm both pulleys are at matching heights. For unilateral or rotational patterns, set each column height independently as required.
4. For pull-up exercises, grip the double-bridge handlebar at the chosen width. Use the dual side stabilising handles for balance approach during single-limb lower-body cable movements.
5. Always confirm all selector pins are fully seated and all pulley positions are locked before beginning any set.
