Load video: Abdominal/Back Extension Machine Animation

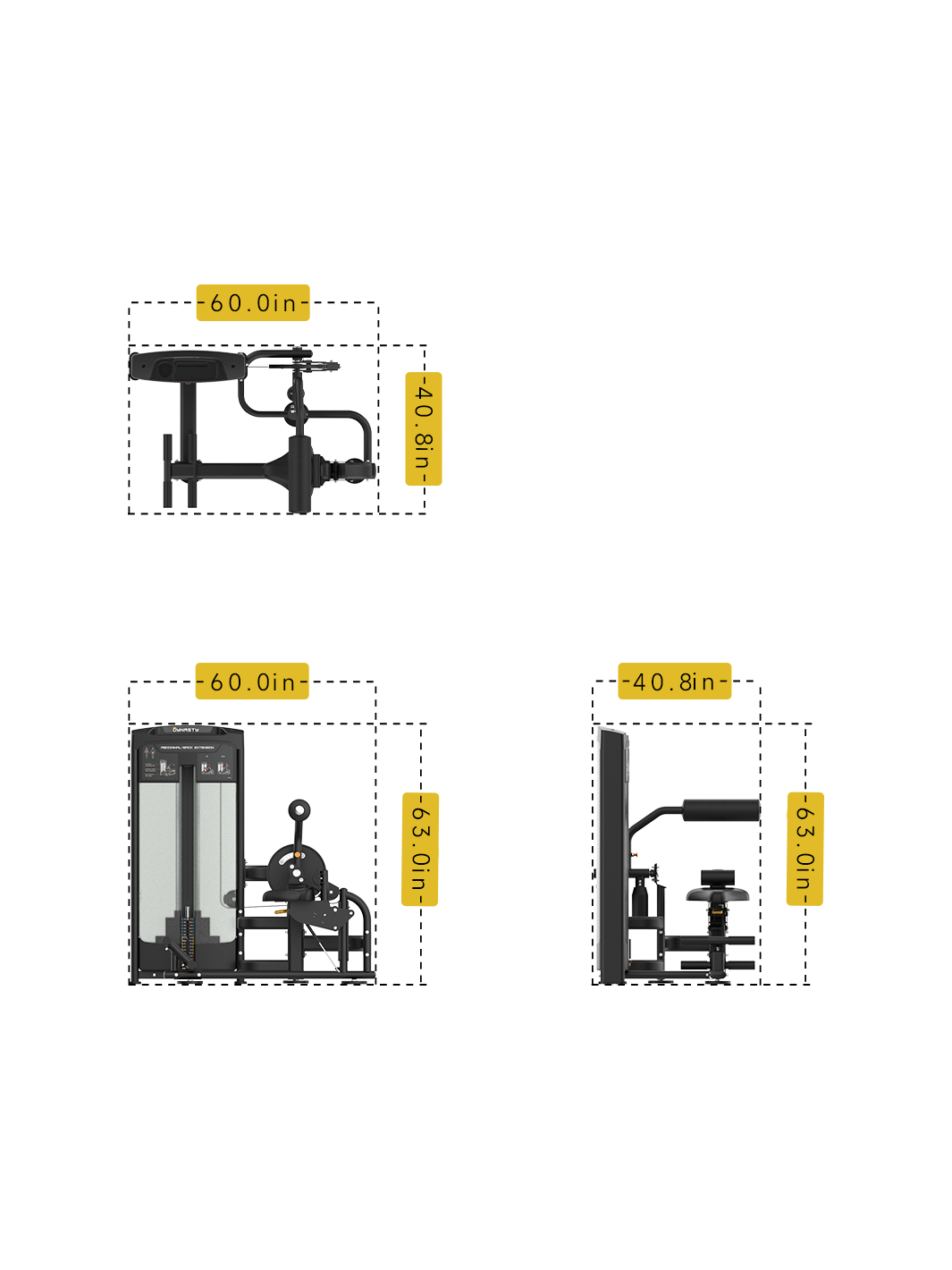

Abdominal/Back Extension Machine Measurement

Abdominal/Back Extension Machine Animation

Exercises and muscles targeted

Exercise	Muscles Targeted
Seated Abdominal Crunch	Rectus Abdominis (primary — spinal flexion against selectorized resistance through full arc from extended starting position to peak crunch), External Obliques (secondary stabiliser), Hip Flexors (stabilised by foot pegs — prevented from driving the movement)
Seated Abdominal Crunch — Rotational	Rectus Abdominis (primary), External and Internal Obliques (primary — rotating through the crunch arc adds oblique contraction alongside spinal flexion), Transverse Abdominis (deep core co-contraction)
Seated Back Extension	Erector Spinae — all three columns (primary — spinal extension against resistance from flexed starting position to full upright extension), Multifidus (primary — deep lumbar spinal stabiliser), Gluteus Maximus (secondary — hip extension at end range)
Back Extension — Slow Eccentric	Erector Spinae (eccentric lengthening through full controlled forward flexion — maximum hypertrophy stimulus for the spinal extensors), Multifidus (eccentric co-contraction), 1:1 felt weight maintains full resistance through the eccentric return
Abdominal Crunch — Slow Eccentric	Rectus Abdominis (eccentric lengthening from peak crunch through full extension — maximum abdominal hypertrophy stimulus per rep), pelvic back pad prevents hip extension compensation through the eccentric return
Core Superset — Crunch into Extension	Rectus Abdominis (crunch sets) and Erector Spinae (extension sets) — anterior and posterior core superset from one machine, training the antagonist muscle pair that together stabilise and control the spine through its complete flexion-extension range

Training both spinal flexion and spinal extension from the same machine in the same session is the complete core programming argument for the DRE8009. The rectus abdominis and erector spinae are the primary antagonist pair of the lumbar spine — one extends what the other flexes. Programming both through a full range with selectorized resistance develops the balanced core strength that protects the lumbar spine under load, which is why the back extension is as important to core programming as the abdominal crunch rather than being an afterthought to it.

Who this machine is built for

Serious Home Gym Builders
A dual-function selectorized core machine covering both weighted abdominal crunches and back extensions at 60.0"×41.0" with a 210 lb 1:1 stack is the most complete core training station available at this footprint. The pelvic support pad and infinitely adjustable pneumatic seat set the machine up precisely for each exercise mode, and the 210 lb stack provides the full progressive loading range from beginner core training through to the heaviest weighted core work a complete programme requires.

Bodybuilders and Physique Athletes
Abdominal definition requires both low body fat and developed rectus abdominis muscle — and the loaded crunch provides the hypertrophy stimulus the abdominals respond to at a level bodyweight crunches cannot deliver at advanced training stages. The 210 lb 1:1 stack covers the full weighted crunch progression from early volume through to maximum loaded sets. The back extension on the same machine ensures the erector spinae receives equal development volume — visually important for the lower back sweep and overall posterior core density that complete physique development requires.

Commercial Gym Owners and Operators
A dual-function core machine serving both crunch and back extension from one station halves the floor space and equipment cost of providing dedicated selectorized machines for both exercises. The pneumatic single-hand seat adjustment and 5-position arm pad handle the full range of a commercial membership quickly between users, and the pelvic support back pad's compensation-reduction function means the machine trains the target muscles effectively rather than requiring staff coaching to correct form.

Personal Trainers and Private Studios
Programming both abdominal and erector spinae volume within the same session is standard in well-structured core programming — the DRE8009 allows trainers to run a crunch-to-extension superset from one station without moving the client. The pelvic support pad's compensation control is particularly valuable for trainer-guided core sessions where hip flexor dominance during crunches is a common technique issue that the machine's pad addresses mechanically rather than requiring repeated verbal cueing.

Physical Therapists and Sports Medicine Practitioners
Selectorized seated core training in a machine-guided environment is a standard component of lumbar rehabilitation programming — machine-guided spinal flexion and extension allows the load to be precisely controlled, the range of motion to be set conservatively for early loading stages, and the pelvic support pad to maintain correct lumbar alignment throughout. Training both flexion and extension from the same machine ensures the lumbar stabiliser pair is developed symmetrically, which is particularly important in rehabilitation where erector spinae weakness is often matched by rectus abdominis weakness after spinal deconditioning. Exercise selection, load, and range of motion must always follow the clinical programme specific to each patient's condition and recovery stage.

How to setup and use

Setting Up the DRE8009

Select the working weight on the stack using the selector pin. Core exercises typically require different loads for the crunch and the extension — adjust the selector between exercises as needed.
Set the arm pad to one of 5 positions appropriate for the selected exercise mode. For the abdominal crunch the pad contacts the upper chest or shoulders and provides the resistance point for spinal flexion. For the back extension the pad contacts the upper back and provides resistance against spinal extension.
Adjust the seat height using the pneumatic air-assist mechanism — single-hand operation. The correct seat height places the pivot of the machine's swing frame at the approximate hip joint height, which aligns the machine's rotation axis with the body's natural spinal flexion/extension pivot.
Set the foot pegs to the position appropriate for the selected exercise and leg length — dual positions accommodate different leg lengths and the changed foot placement requirements between crunch and extension modes.
Confirm the pelvic support back pad is in full contact with the rear of the pelvis before beginning. This pad is what minimises hip compensation during both exercises.

Performing Seated Abdominal Crunch

Sit with the chest or upper shoulders against the arm pad and both feet on the foot pegs. Confirm the pelvic support pad contacts the lower back/pelvis from behind.
From the upright starting position with the spine extended and the abdominals at their greatest stretch, flex the spine by driving the torso downward against the resistance of the arm pad.
Continue the crunch to the fully flexed peak position, holding for one to two seconds at peak abdominal contraction.
Return under full eccentric control back to the upright starting position. The pelvic pad prevents the hips from extending backward to assist the return — maintaining tension in the abdominals throughout.

Performing Seated Back Extension

Adjust the arm pad to the back extension position and reconfirm the pelvic support pad contact.
Sit with the upper back against the arm pad in the forward-flexed starting position — spine gently rounded forward, abdominals relaxed.
Extend the spine by pushing the upper back against the arm pad to drive the torso upward and backward to the full upright or slightly extended position, contracting the erector spinae through the full extension arc.
Return under control to the forward-flexed starting position for the full eccentric loading of the erector spinae.

Owner's Manual

Access the complete assembly guide, parts list, and maintenance schedule below.

Download Owners Manual

Shipping & Delivery

All Dynasty Fitness equipment ships free across the 48 contiguous US states via freight carrier. If the product description says preorder, we'll send you an estimated delivery date via email.

Estimated delivery: 7–14 business days from order confirmation. You will receive a tracking number and a delivery window confirmation call before your shipment arrives. Deliveries are curbside standard, white glove delivery to room of choice is available at checkout.

Returns: Free within 30 days of delivery. Items must be in original condition and packaging. Refunds processed within 5 business days of return receipt.

Questions? Contact our team at:
📧Email: info@thedynastyfitness.com
📞Call: +1 (213)-584-0858

Need a buying guide?

Looking for one to one support before making final decision?
Feel free to contact us. Our expert support team would love to assist you.

Need Installation Help?

We have partnered with another company to help provide installation around the country. Please use the link below to see the price per machine for installation
See Installation Rates

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Save 10%

Abdominal/Back Extension DRE8009

$2,549.00

$2,549.00 ~~$2,849.00~~ 10% off (Save$300.00 )

Commercial Grade
Pay With HFA/FSA

Free Shipping

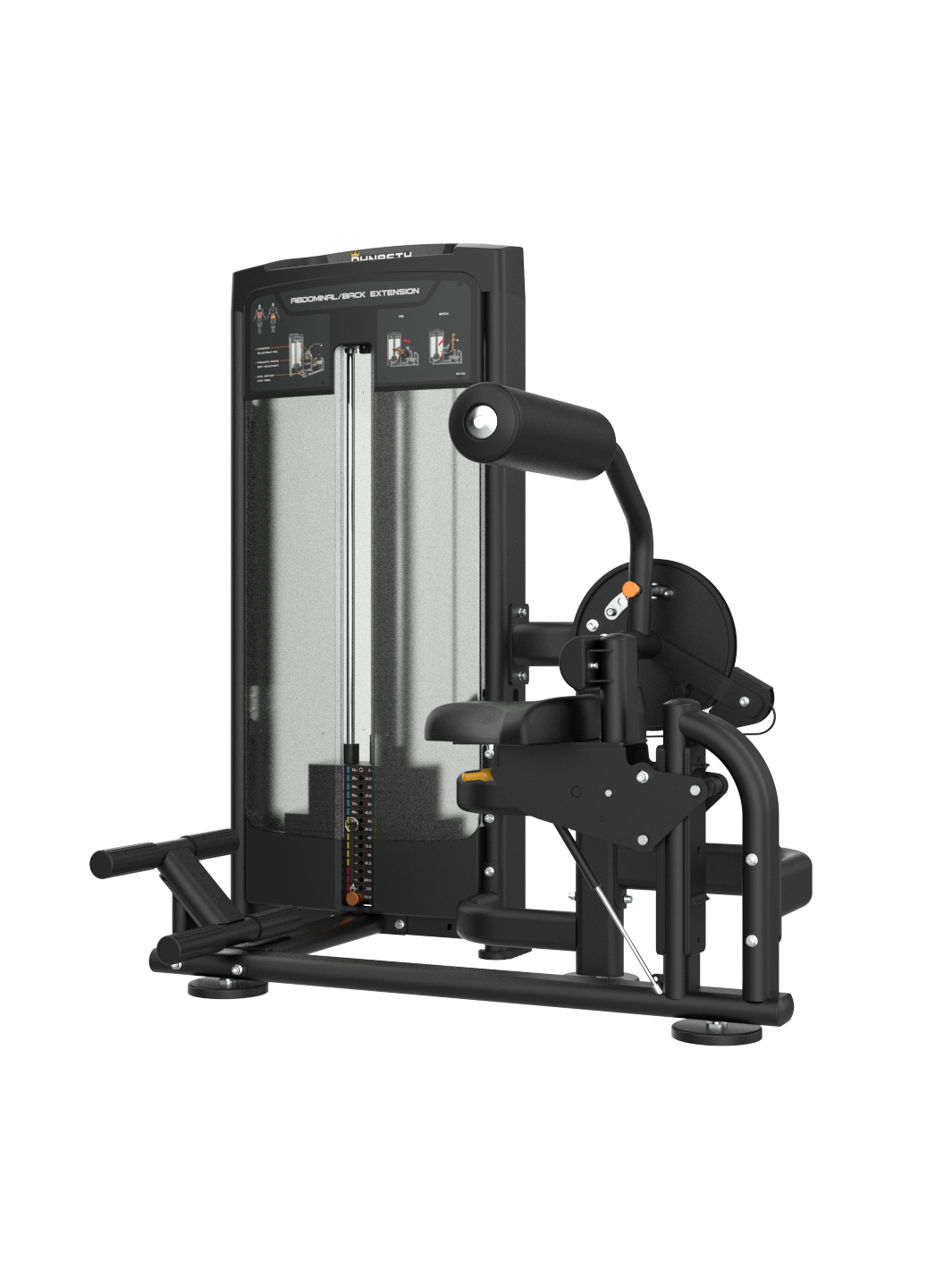

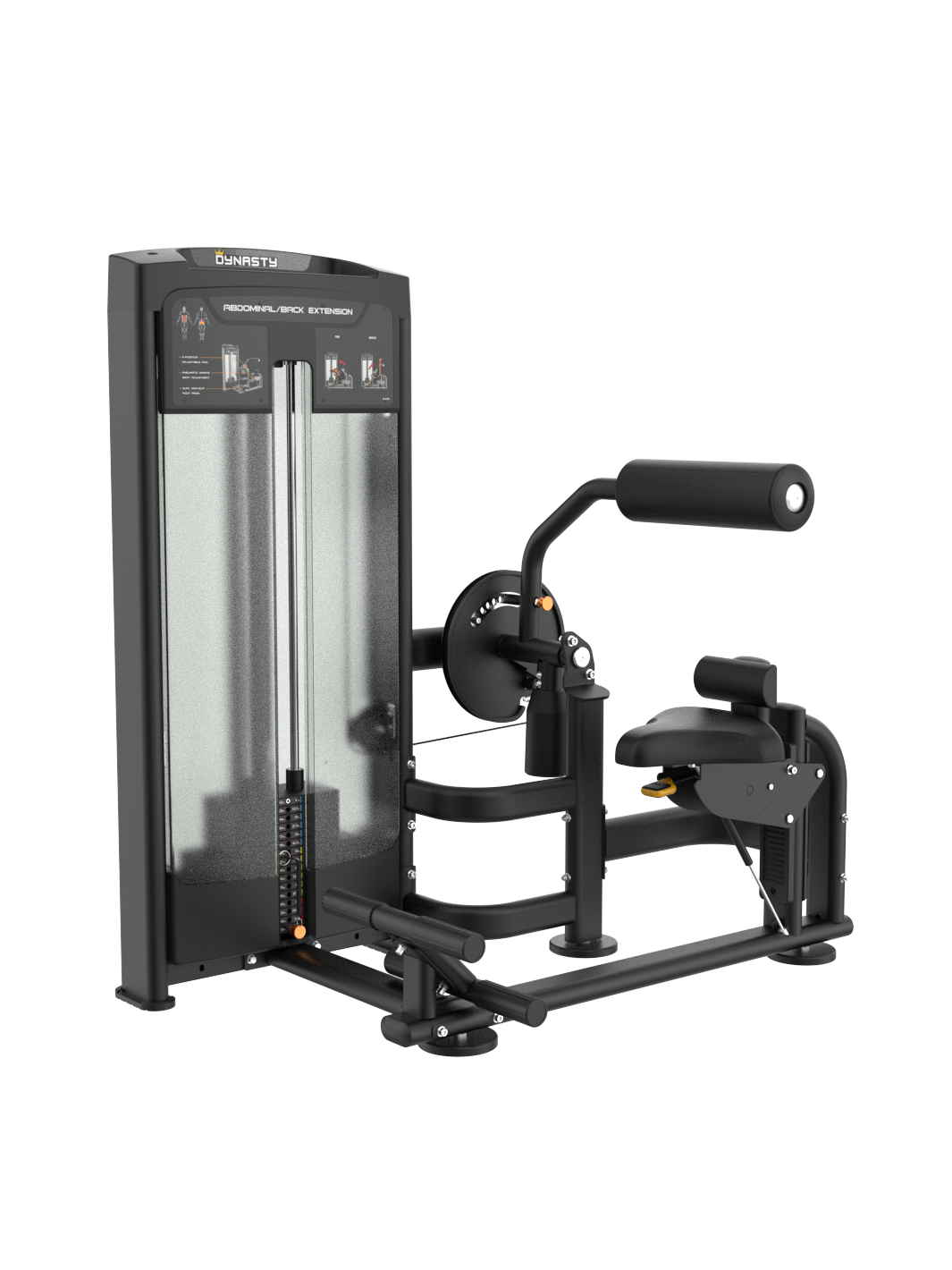

The Dynasty Fitness DRE8009 Abdominal/Back Extension is a dual-function selectorized core machine that trains both seated abdominal crunches and back extensions from one 210 lb Dynasty Flex-Stack station at a 1:1 felt weight ratio — covering the two opposing spinal movement patterns that together develop complete core strength from one compact 60.0"×41.0" footprint. A 5-position adjustable arm pad, pneumatically infinitely adjustable seat, rear pelvic support back pad, and dual-position foot pegs configure the machine precisely for both exercise modes across every user body proportion.

Dual-function design trains seated abdominal crunches and back extensions from one machine and one 210 lb stack — covering spinal flexion for rectus abdominis development and spinal extension for erector spinae strength from one 60.0"×41.0" station without two machines or two footprints
Rear pelvic support back pad aligns the pelvis at the correct angle for both exercises, minimising the hip flexor and hip extensor compensation that reduces core isolation — keeping the effort where it belongs in the abdominals during the crunch and the erectors during the extension
5-position adjustable arm pad combined with an infinitely adjustable pneumatic seat covers the starting position requirements of both exercise modes across the full range of user heights and torso proportions with single-hand, effortless seat adjustment
Dynasty Flex-Stack System delivers 1:1 felt weight — the 210 lb stack loads precisely as selected through both the abdominal crunch and back extension arcs, supporting progressive core loading from early rehabilitation stages through to advanced weighted core training

Limited time offer

Get 20% off when you order 4 or more pieces of equipment!

Exercises and muscles targeted

Exercise	Muscles Targeted
Seated Abdominal Crunch	Rectus Abdominis (primary — spinal flexion against selectorized resistance through full arc from extended starting position to peak crunch), External Obliques (secondary stabiliser), Hip Flexors (stabilised by foot pegs — prevented from driving the movement)
Seated Abdominal Crunch — Rotational	Rectus Abdominis (primary), External and Internal Obliques (primary — rotating through the crunch arc adds oblique contraction alongside spinal flexion), Transverse Abdominis (deep core co-contraction)
Seated Back Extension	Erector Spinae — all three columns (primary — spinal extension against resistance from flexed starting position to full upright extension), Multifidus (primary — deep lumbar spinal stabiliser), Gluteus Maximus (secondary — hip extension at end range)
Back Extension — Slow Eccentric	Erector Spinae (eccentric lengthening through full controlled forward flexion — maximum hypertrophy stimulus for the spinal extensors), Multifidus (eccentric co-contraction), 1:1 felt weight maintains full resistance through the eccentric return
Abdominal Crunch — Slow Eccentric	Rectus Abdominis (eccentric lengthening from peak crunch through full extension — maximum abdominal hypertrophy stimulus per rep), pelvic back pad prevents hip extension compensation through the eccentric return
Core Superset — Crunch into Extension	Rectus Abdominis (crunch sets) and Erector Spinae (extension sets) — anterior and posterior core superset from one machine, training the antagonist muscle pair that together stabilise and control the spine through its complete flexion-extension range

Who this machine is built for

How to setup and use

Setting Up the DRE8009

Select the working weight on the stack using the selector pin. Core exercises typically require different loads for the crunch and the extension — adjust the selector between exercises as needed.
Set the arm pad to one of 5 positions appropriate for the selected exercise mode. For the abdominal crunch the pad contacts the upper chest or shoulders and provides the resistance point for spinal flexion. For the back extension the pad contacts the upper back and provides resistance against spinal extension.
Adjust the seat height using the pneumatic air-assist mechanism — single-hand operation. The correct seat height places the pivot of the machine's swing frame at the approximate hip joint height, which aligns the machine's rotation axis with the body's natural spinal flexion/extension pivot.
Set the foot pegs to the position appropriate for the selected exercise and leg length — dual positions accommodate different leg lengths and the changed foot placement requirements between crunch and extension modes.
Confirm the pelvic support back pad is in full contact with the rear of the pelvis before beginning. This pad is what minimises hip compensation during both exercises.

Performing Seated Abdominal Crunch

Sit with the chest or upper shoulders against the arm pad and both feet on the foot pegs. Confirm the pelvic support pad contacts the lower back/pelvis from behind.
From the upright starting position with the spine extended and the abdominals at their greatest stretch, flex the spine by driving the torso downward against the resistance of the arm pad.
Continue the crunch to the fully flexed peak position, holding for one to two seconds at peak abdominal contraction.
Return under full eccentric control back to the upright starting position. The pelvic pad prevents the hips from extending backward to assist the return — maintaining tension in the abdominals throughout.

Performing Seated Back Extension

Adjust the arm pad to the back extension position and reconfirm the pelvic support pad contact.
Sit with the upper back against the arm pad in the forward-flexed starting position — spine gently rounded forward, abdominals relaxed.
Extend the spine by pushing the upper back against the arm pad to drive the torso upward and backward to the full upright or slightly extended position, contracting the erector spinae through the full extension arc.
Return under control to the forward-flexed starting position for the full eccentric loading of the erector spinae.

Owner's Manual

Access the complete assembly guide, parts list, and maintenance schedule below.

Download Owners Manual

Shipping & Delivery

All Dynasty Fitness equipment ships free across the 48 contiguous US states via freight carrier. If the product description says preorder, we'll send you an estimated delivery date via email.

Returns: Free within 30 days of delivery. Items must be in original condition and packaging. Refunds processed within 5 business days of return receipt.

Questions? Contact our team at:
📧Email: info@thedynastyfitness.com
📞Call: +1 (213)-584-0858

Need a buying guide?

Looking for one to one support before making final decision?
Feel free to contact us. Our expert support team would love to assist you.

Need Installation Help?

We have partnered with another company to help provide installation around the country. Please use the link below to see the price per machine for installation
See Installation Rates

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Abdominal/Back Extension DRE8009

$2,549.00

$2,549.00 ~~$2,849.00~~ 10% off (Save$300.00 )

Key Features

Dual-Function Design

The DRE8009 covers both seated abdominal crunches and seated back extensions from the same selectorized station via the 5-position arm pad and swing frame mechanism. The swing frame and reversing frame route the cable resistance to the arm pad from two directions depending on exercise mode — pulling the pad downward in crunch mode to resist spinal flexion, and pushing the pad forward in extension mode to resist spinal extension. Switching between exercises requires adjusting the arm pad position and seat height for the new exercise — the stack, seat, and foot pegs are shared across both modes.

5-Position Adjustable Arm Pad

The arm pad adjusts to five positions to set the starting contact point and resistance direction for each exercise and each user's torso length. In crunch mode, the correct pad position places the contact at the upper chest or shoulder — the point from which spinal flexion can be driven most effectively with the arms and shoulders providing the force transmission to the pad. In back extension mode, the correct pad position places the contact at the upper back — the point from which spinal extension is driven most effectively with the thoracic spine pushing against the pad. Five positions cover the torso length range from shorter to taller users for both modes.

Rear Pelvic Support Back Pad

The pelvic support back pad contacts the posterior pelvis and lower lumbar region to anchor the pelvis during both exercises. In the abdominal crunch, the common compensation is for the hips to slide forward as the weight increases, which allows the hip flexors to contribute to the forward spinal movement rather than the abdominals driving pure spinal flexion. The pelvic pad prevents this hip slide. In the back extension, the compensation is for the hips to extend backward rather than the spine extending, which shifts the stimulus from the erector spinae to the glutes and hamstrings. The pelvic pad prevents this hip extension compensation. Both compensations reduce the core isolation the machine is designed to produce — the pelvic pad corrects both mechanically.

Pneumatic Infinite Seat Adjustment

The seat adjusts infinitely along inner and outer slide rails via gas spring — single-hand operation covering the full seated height range without stepped positions. The seat height determines where the machine's pivot aligns relative to the user's hip joint, which is the critical fit variable for both spinal flexion and extension machines. Too high and the hips cannot flex comfortably; too low and the spine is not in the correct starting orientation relative to the arm pad. The infinite adjustment allows this to be set precisely for every user rather than approximating with stepped increments.

Product Information
Product Name	Abdominal/Back Extension
Model	DRE8009
Series	DRE80 Selectorized Series
Product Type	Selectorized Dual-Function Abdominal and Back Extension Machine
Functions	Seated abdominal crunch and seated back extension — both modes from one machine
Target Muscles	Rectus Abdominis (crunch primary) — Erector Spinae, Multifidus (extension primary)
Grade	Commercial
Main Frame Tubing	PT50×100×2.5mm
Colour	Black
Dimensions and Weight
Length	60.0 in (152.3 cm)
Width	41.0 in (103.8 cm)
Height	63.0 in (160.2 cm)
Net Weight	198 lbs (90 kg)
Weight Stack
Standard Weight Stack	210 lbs
Resistance System	Dynasty Flex-Stack System — 1:1 felt weight ratio
Adjustability and Support
Arm/Torso Pad Positions	5 positions — adapts to crunch and back extension starting requirements
Seat Adjustment	Infinitely adjustable — pneumatic gas spring, single-hand operation, inner/outer slide rails
Pelvic Support Back Pad	Aligns pelvic angle — minimises hip compensation in both exercise modes
Foot Pegs	Dual-position non-slip — different leg lengths and exercise modes
Frame and Construction
Bearings	6005 ×2, flange bearing φ50.8×φ25.4×15.9
Guide Rod	φ19×2×1319mm
Counterweight	13 kg — mechanism balance
Indoor Use Only	Yes

Q: How does one machine perform both abdominal crunches and back extensions?
A: The DRE8009 uses a swing frame and reversing frame mechanism that routes the cable resistance to the arm pad in two directions depending on the exercise mode selected. In crunch mode the cable pulls the pad downward, resisting the torso's forward flexion as the spine crunches — the abdominals must generate force to push against the pad through the full arc. In back extension mode the cable pushes the pad forward, resisting the torso's backward extension — the erector spinae must generate force to push against the pad through the extension arc. Switching between modes requires adjusting the arm pad position to one of five settings and resetting the seat height for the new exercise.

Q: What does the pelvic support back pad do for each exercise?
A: In the abdominal crunch, the primary compensation is for the hips to slide forward as the load increases, which recruits the hip flexors to drive the forward movement rather than the abdominals performing pure spinal flexion. The pelvic support pad contacts the posterior pelvis and prevents this hip slide, ensuring the abdominals generate all of the force. In the back extension, the compensation is for the hips to extend backward rather than the lumbar spine extending — which recruits the glutes and hamstrings rather than the erector spinae. The pelvic pad prevents the hip extension, keeping the movement in the lumbar spine where the erector spinae training stimulus belongs.

Q: What load range does the 210 lb stack cover for core exercises?
A: The 210 lb 1:1 stack covers the complete core training load spectrum — from very light loads for early rehabilitation or beginner core conditioning (where the starting weight can be set to the minimum plate selection) through to the heavy weighted crunch and back extension loads that advanced core training and competitive physique preparation require. Most users will train abdominal crunches at lower absolute loads than back extensions due to the relative strength difference between the rectus abdominis and erector spinae — the 210 lb stack accommodates both within the same machine without either exercise running out of resistance.

Q: How is the DRE8009 different from the DRE8027 Multi Abdominal?
A: The DRE8027 is a kneeling cable crunch machine with a multi-function overhead cable system that also serves lat pulldowns, triceps pushdowns, and face pulls. It targets the abdominals exclusively in crunch mode. The DRE8009 is a seated dual-function machine covering both abdominal crunches and back extensions from a seated position with a pelvic support pad that controls hip compensation in both exercises. The DRE8009 adds the back extension exercise category that the DRE8027 does not cover, while the DRE8027 adds the multi-function cable exercise capability and kneeling position that the DRE8009 does not. For complete core training from a single machine, the DRE8009 covers both sides of the spinal movement pair.

Q: What Dynasty Fitness machines pair with the DRE8009 for a complete core training area?
A: The DRE8009 covers seated weighted abdominal crunches and back extensions. Pair it with the Abdominal Crunch DRE8035 for the dedicated seated crunch machine targeting the rectus abdominis through a fixed-arc isolation movement with chest pad support. The Multi Abdominal DRE8027 adds kneeling cable crunches for a different loading angle and position alongside the seated crunch of the DRE8009. The Multi Back Extension DRE8040 adds the dedicated prone back extension for erector spinae development alongside the seated back extension mode of the DRE8009. Programming all four machines covers abdominal and erector spinae isolation from multiple positions, pad supports, and resistance angles for the most comprehensive selectorized core training programme available in the DRE80 series.
