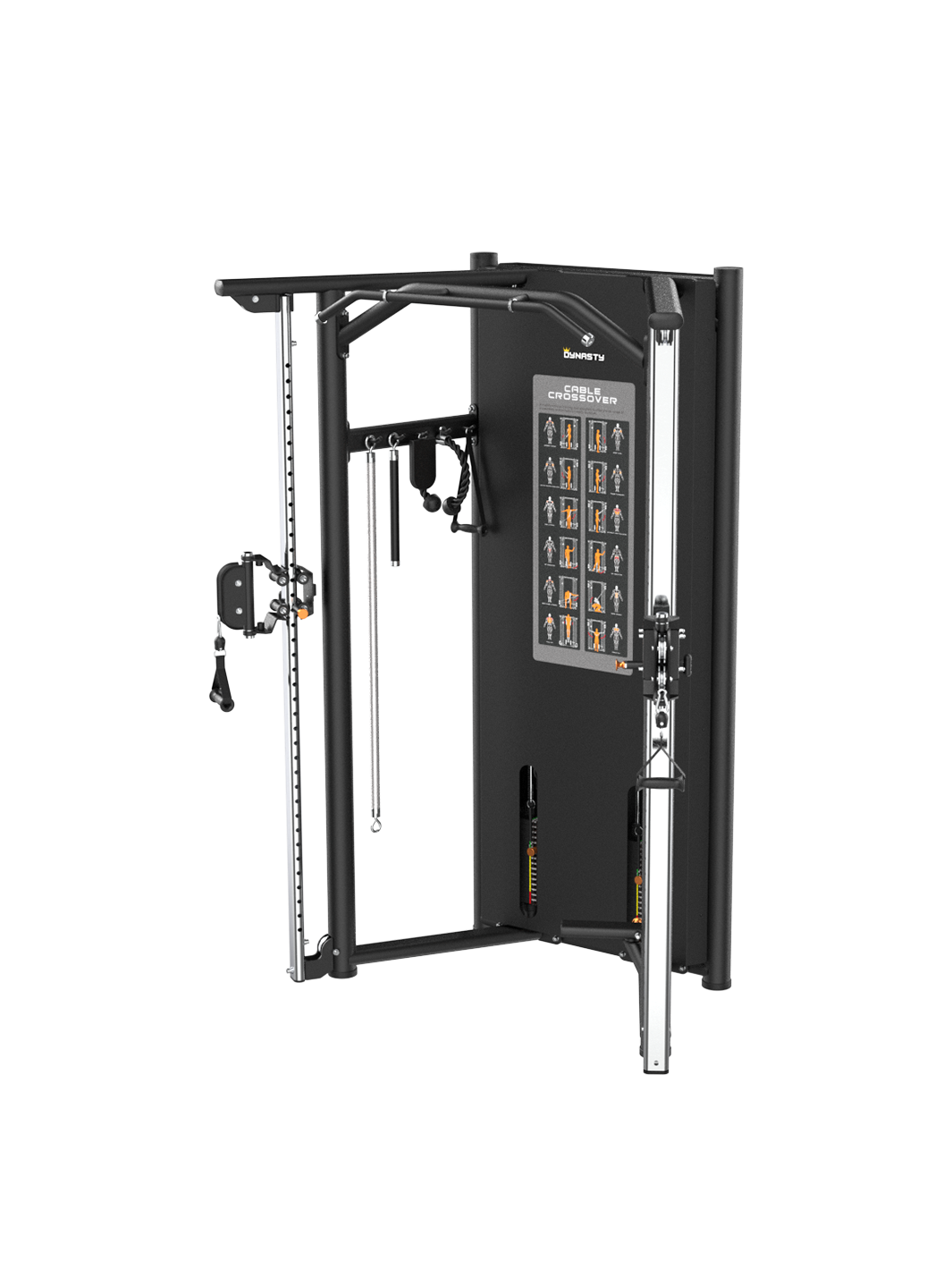

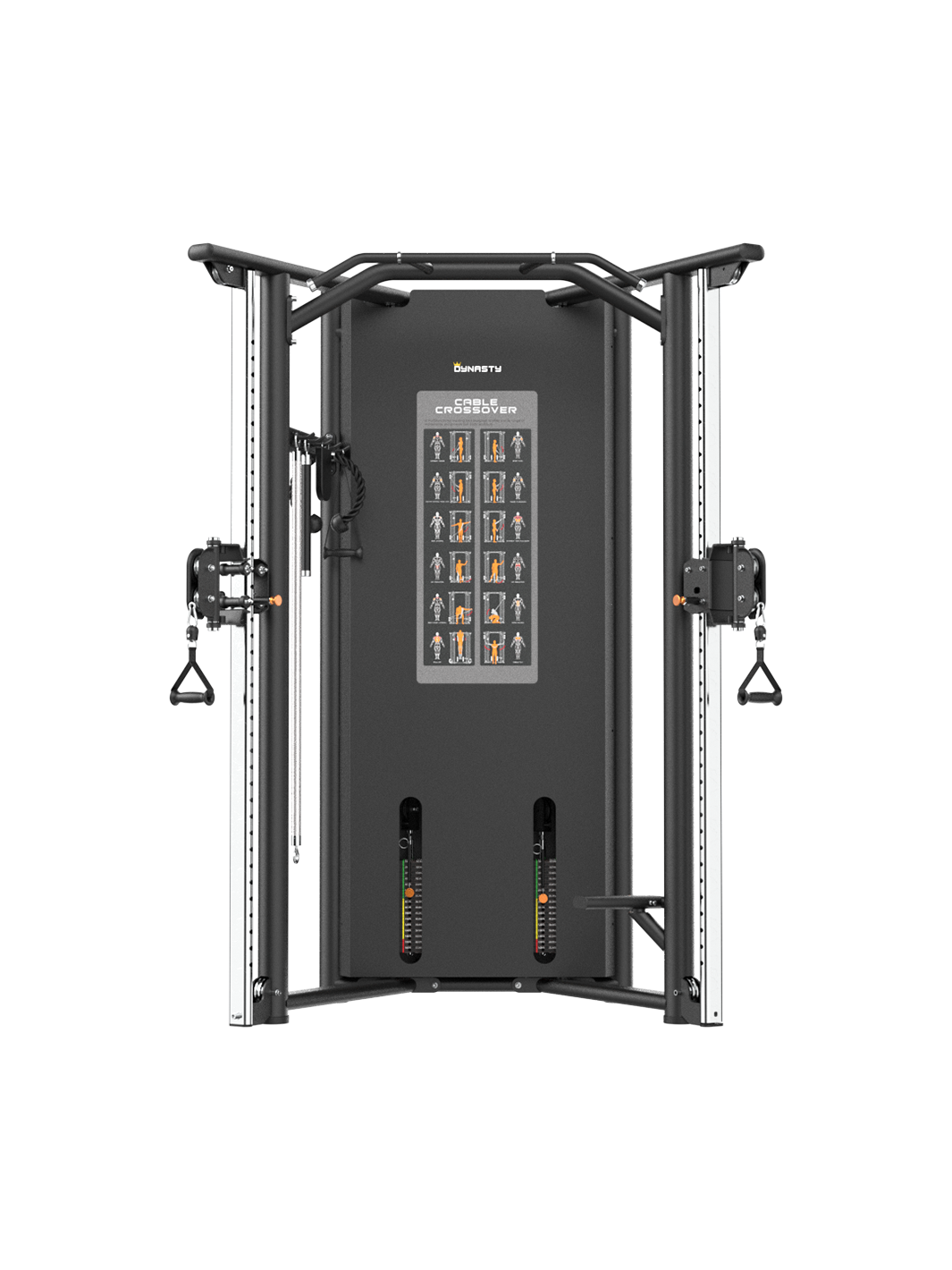

Dual Adjustable Pulley DRE8021

Regular price $3,419.00
Sale price $3,419.00 Regular price $3,799.00 10% off (Save$380.00 )

Key Features

1.

39-Position Height Adjustment

Each pulley column adjusts across 39 positions on high-strength spring pin mechanisms running in ultra-smooth adjustment rails. The spring pin design releases and locks with a single-hand handle press, allowing position changes in seconds without tools. The 39-position density means the difference in cable angle between adjacent positions is small enough to be functionally meaningful — the cable angle at position 19 genuinely differs from position 20 in a way that changes the resistance vector on the target muscle. Standard functional trainers with 12 to 20 positions space their positions further apart, which forces exercises to approximate the correct height rather than hit it precisely. Both columns adjust independently, which is the feature that unlocks rotational and diagonal cable patterns where the two pulleys need to be at different heights within the same exercise.
2.

1.7+ Metre Horizontal Training Space

The 69" distance between the two columns is specifically called out as a design differentiator. Most dual-stack functional trainers in the same class measure 50 to 60 inches between columns — a difference that is mechanically significant for cable fly exercises. At a wider column separation, the cable vector at the fully-opened starting position of a fly is more horizontal, which produces a greater pectoral stretch under tension before the adduction begins. At a narrower column separation, the cable angle at the same starting position is steeper, which reduces the effective stretch range. The 1.7+ metre separation ensures the fly stretch phase loads the pectorals from a genuine lengthened starting position at every cable height the 39-position system provides.
3.

Three-Position Pull-Up Bar

The upper fixed bar provides three distinct grip positions — wide pronated, neutral mid-width, and narrow supinated with each angle calculated through biomechanics to align with the natural muscle force curve of the target back muscles at that grip width. The wide pronated grip positions the shoulder in the external rotation orientation that loads the upper lats broadly through horizontal adduction from a wide starting arm position. The neutral mid-width grip distributes loading across the mid and upper lats with a balanced biceps involvement. The narrow supinated grip places the shoulder in the position that maximises biceps contribution through supination, making it the chin-up grip for combined lat and biceps development. The right-side step platform allows every user height to reach the bar without a jump start, which also allows a safer, controlled starting position for the first rep rather than initiating from a dynamic jump under full bodyweight.
4.

4-Position Attachment Storage System

The left side of the machine carries a hook rack with four storage positions for cable attachments. The included accessories — short pull handle, straight push handle, tension rope, foot tension sleeve, tensile sleeve sets, and long tension sleeve sets — are all designed to hang on these hooks. Having the attachments stored at the machine rather than on the floor or on a separate rack means the transition between exercises within a session requires only reaching to the hook, not walking to a separate storage unit. The four positions accommodate the full set of included accessories plus additional aftermarket attachments.
5.

Two Independent Weight Stacks

The left and right stacks each carry independent 210 lb weight stacks with independent selector pins. No mechanical connection exists between the two sides — loading, adjusting, or working one stack has no effect on the other. The independence enables unilateral cable work at different loads per side, bilateral cable exercises where each arm works against its own stack, rotational patterns where only one stack is loaded, and simultaneous dual-user programming during commercial sessions. Both stacks offer 250 lb upgrade capacity.

Product Information
Product NameDual Adjustable Pulley
ModelDRE8021
SeriesDRE80 Selectorized Series
Product TypeDual-Stack Adjustable Functional Cable Trainer
FunctionsCable fly, cable row, cable pushdown, cable curl, cable lateral raise, woodchop, rotational patterns, unilateral cable exercises, pull-ups, chin-ups
GradeCommercial
ColourBlack

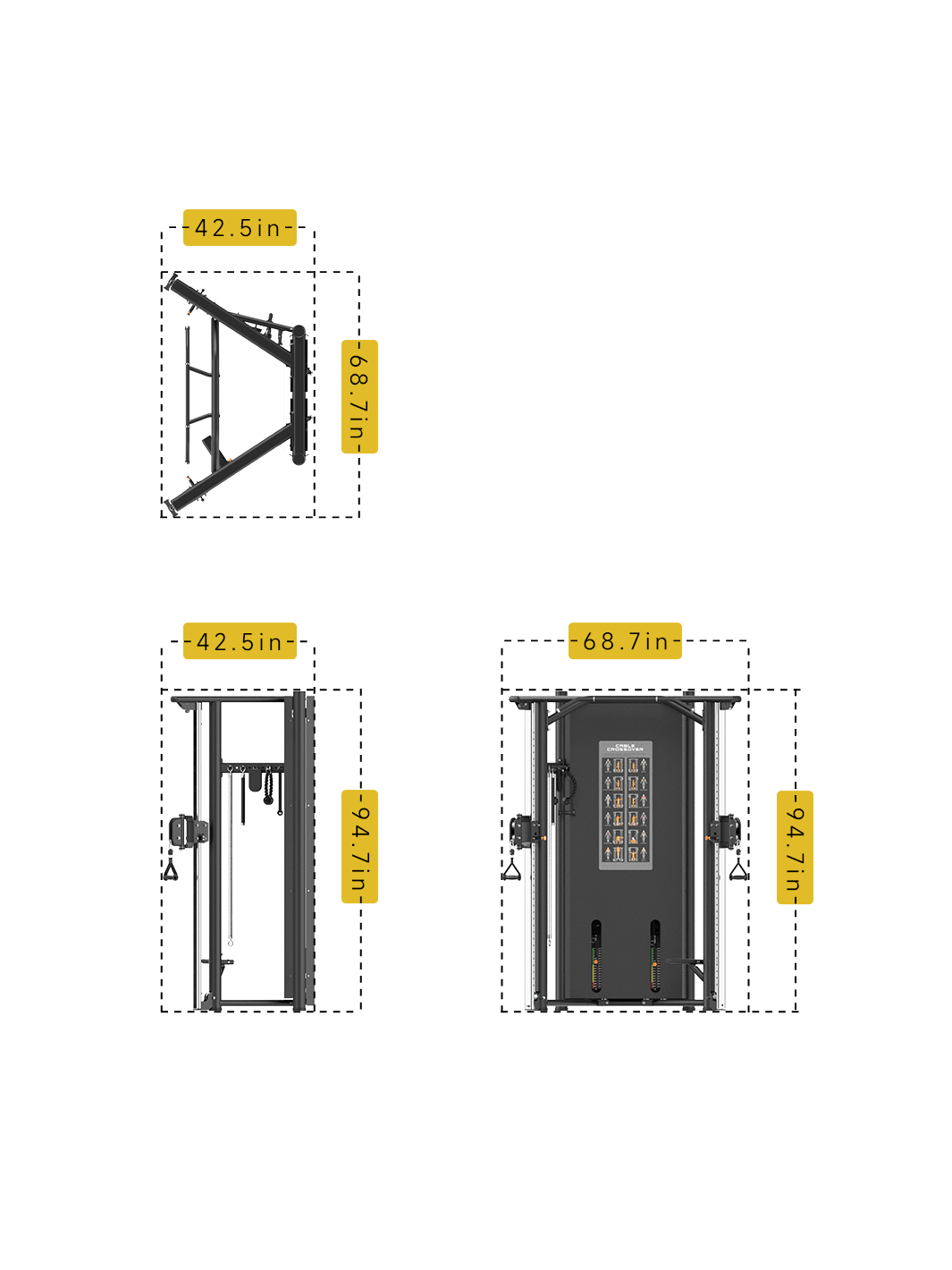

Dimensions and Weight
Length (column separation)69 in (175.3 cm) — 1.7+ m horizontal training space
Width43 in (109.2 cm)
Height95 in (240.5 cm)
Net Weight912 lbs (414 kg)
Weight Stacks
Standard Weight Stack210 lbs per side (two independent stacks)
Upgraded Weight Stack250 lbs per side
Stack ConfigurationFully independent — each side adjustable to different working weights
Pulley System
Pulley Positions per Column39 positions — floor to overhead
Adjustment MechanismHigh-strength spring pins — ultra-smooth adjustment rails, single-hand handle
Cable Attachments (included)Short pull handle, straight push handle, tension rope, foot tension sleeve, tensile sleeve sets x2, long tension sleeve sets x2, gourd hooks x5
Attachment Storage4-position storage hooks — left side
Bearings608-2Z x16, copper bearings x6
Pull-Up Bar
Grip Positions3 positions — wide pronated, neutral mid-width, narrow supinated
Grip AnglesBiomechanically calculated — each angle matched to muscle force curve
Step PlatformRight side — accommodates users of all heights for pull-up access
Frame and Construction
FrameCage rack with left and right stand frames, upper connection frame
Indoor Use OnlyYes
