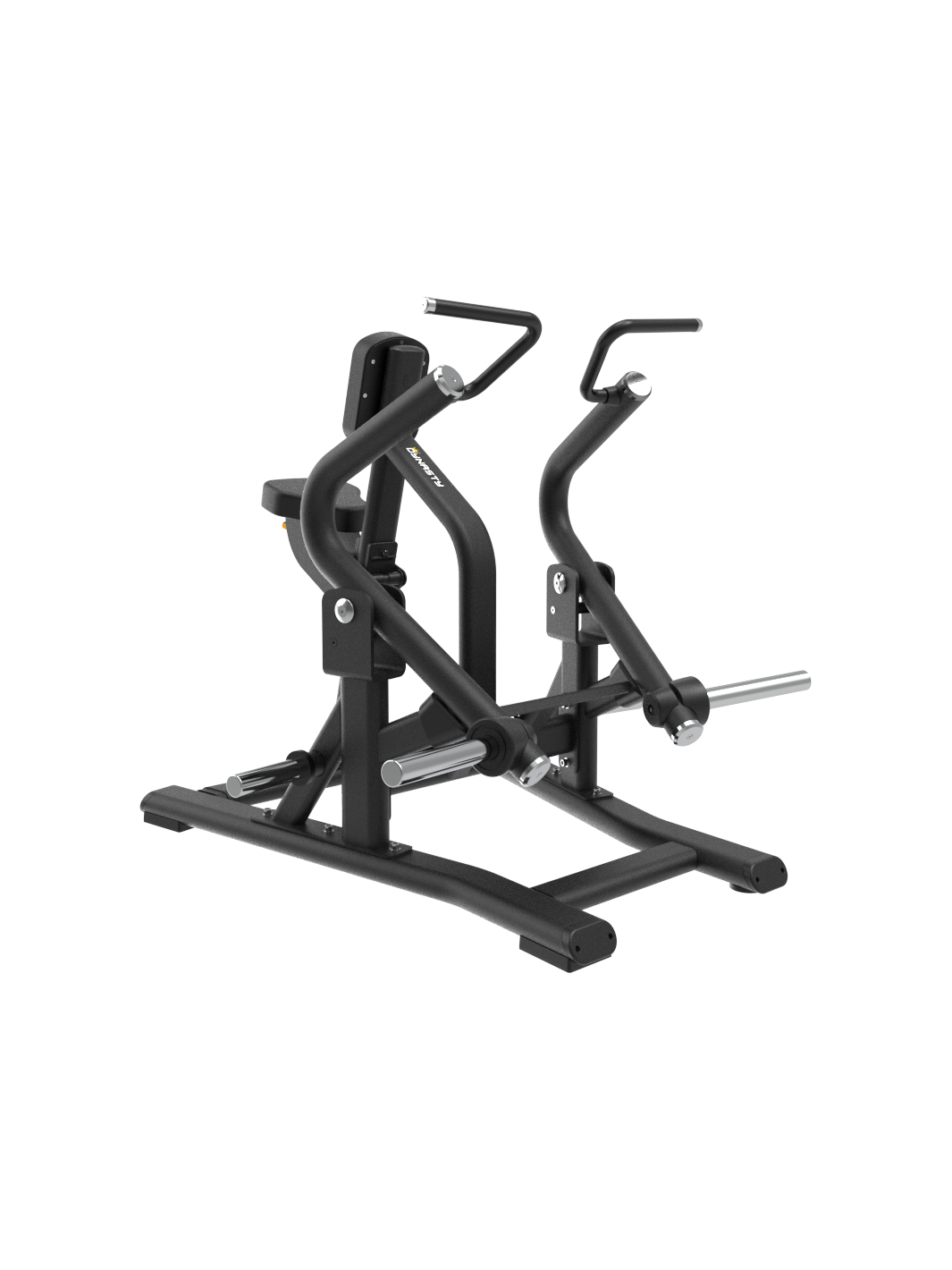

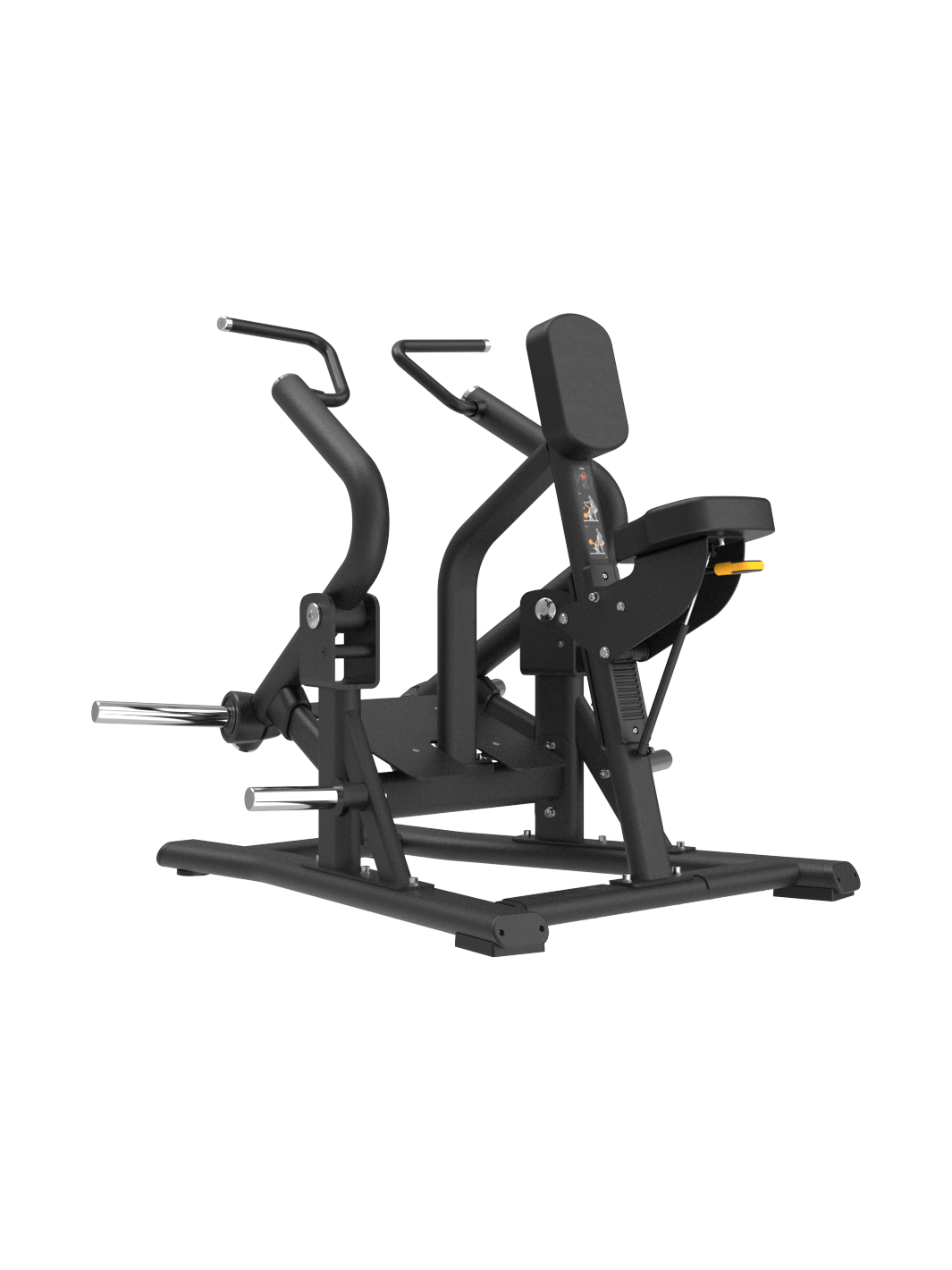

Seated Row DSH005

Regular price $2,159.00
Sale price $2,159.00 Regular price $2,399.00 10% off (Save$240.00 )

Key Features

1.

Multi-Grip Handle System: Width and Grip Angle Variation

The handle assembly provides multiple grip positions covering wide, narrow, overhand, and neutral orientations from the same contact point without swapping attachments. Each orientation changes the arm path, the elbow position at peak contraction, and the primary muscle emphasis of the pull. Wide overhand grip creates a flared elbow path that drives more load through the rhomboids and mid-trapezius. Narrow neutral grip keeps the elbows close to the body and shifts load onto the latissimus dorsi. Unlike a single-grip seated row station, the DSH005 covers both back width and thickness development from the same starting position, which makes it the more complete back machine per unit of floor space.
2.

Pneumatic Infinite Seat Adjustment

The seat adjusts to any height within its range using a pneumatic handle that releases and locks with a single press rather than requiring the user to lift their bodyweight and reposition a pin. This matters operationally in two contexts. In a commercial facility where the same machine serves users of significantly different heights across a training day, the pneumatic system eliminates the friction of indexed adjustment and reduces the time each user spends setting up. In a studio or home gym context, it allows the same user to experiment with small seat height changes between sets to find the exact position where the chest pad and handle geometry feel most aligned for their proportions.
3.

Precision-Angled Chest Pad

The chest pad is angled and positioned at the specific distance from the handles that allows the arms to extend fully in the starting position without requiring the user to reach forward unnaturally, and that allows full scapular retraction at the peak pull position without the handles contacting the body before the back muscles have reached full contraction. Unlike a vertical chest pad that creates a fixed torso angle, the angled design on the DSH005 accommodates the natural forward lean of a heavy seated row without forcing the user to brace rigidly upright throughout the set. The pad also keeps the lumbar spine in a neutral position by preventing the trunk from rounding forward under fatigue.
4.

Ergonomic Wide Angled Footplates

Two wide footplates are angled outward to accommodate different ankle mobility levels and foot widths without requiring the user to stand on their toes or fight their ankle range of motion to keep the feet grounded during the pull. During a heavy seated row the legs push against the footplates as a counter-force, particularly when driving with heavy loads that create significant horizontal resistance. Unlike small or flat footplates where the foot slides under heavy load or where users with limited ankle dorsiflexion cannot maintain full contact, the angled wide design maintains a stable foot base for users of varying proportions throughout the full weight range.
5.

PT60×120×2.5mm Commercial Steel Frame

The main frame uses PT60×120×2.5mm rectangular steel tubing, which is the structural specification that determines how the frame handles the bending and torsional loads generated during heavy bilateral rowing. The PT60×120 profile provides a deep section depth that resists the forward bending moment created when a user pulls hundreds of pounds of plate load rearward against the frame. Unlike machines built to narrower tube specifications that flex under maximum loads, the DSH005 frame stays rigid across the 661 lb bilateral load capacity, which keeps the rowing path consistent and prevents the frame movement that users can feel as instability during heavy working sets.
6.

661 lb Bilateral Load Capacity with Olympic Plate Loading

The DSH005 accepts Olympic plates on two independent weight horns providing up to 661 lbs of bilateral total resistance across both sides combined. Plate loading delivers a free-weight training feel through the rowing arc because the inertia and momentum characteristics of plate-loaded equipment differ from selectorized alternatives where the weight stack's guided travel dampens the natural resistance variation through the movement. For athletes who train heavy barbell rows or deadlifts as primary movements, the plate-loaded rowing feel on the DSH005 creates a more compatible training stimulus than selectorized back machines that cap resistance at lower loads. Load the DSH005 with the Dynasty Fitness Urethane Grip Plate Set for a premium finish that matches the matte black frame aesthetic and protects the weight horns during daily loading and unloading.

Product Information
Product NameSeated Row
ModelDSH005
SeriesDSH Plate Loaded Series
Product TypePlate-Loaded Seated Row Machine
Primary FunctionBilateral seated horizontal row — lat, rhomboid, and trapezius development
Target MusclesLatissimus Dorsi, Rhomboids, Trapezius (primary), Biceps Brachii, Rear Deltoid, Teres Major (secondary)
GradeCommercial
ColourMatte Black

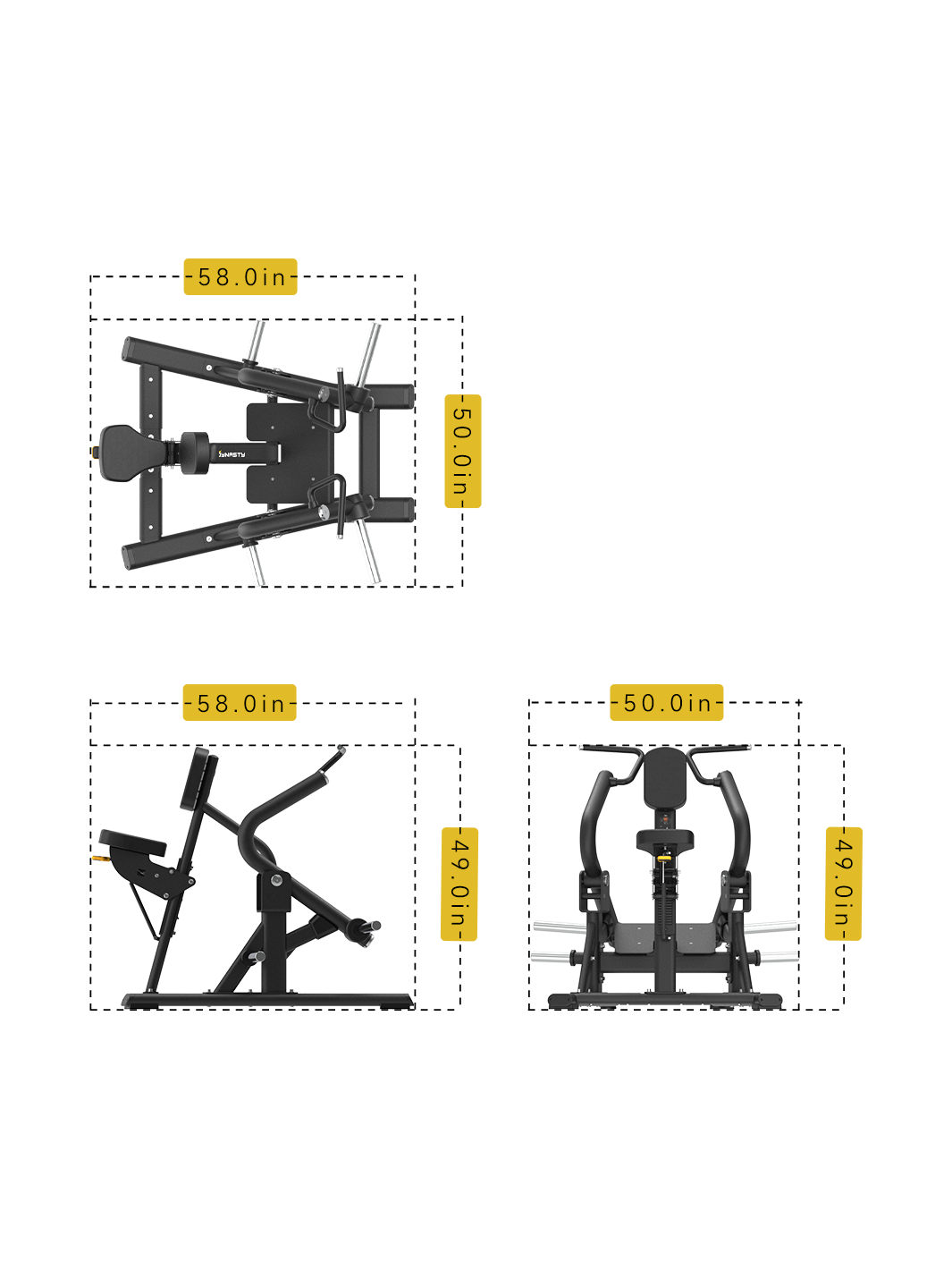

Dimensions and Weight
Length58.3 in (148.0 cm)
Width50.2 in (127.5 cm)
Height48.8 in (124.0 cm)
Net Weight273 lbs (124 kg)
Load Capacity
Maximum Load Capacity661 lbs (300 kg) — 330 lbs (150 kg) per side
Loading SystemPlate-loaded — Olympic plates, dual weight horns
Adjustability
Seat AdjustmentPneumatic infinite adjustment — single-hand, tool-free
Handle Grip OptionsWide, narrow, overhand, underhand, and neutral orientations
Frame and Construction
Main Frame TubingPT60×120×2.5mm rectangular steel
FinishMatte black powder coat
Chest PadPrecision-angled, ergonomically positioned for full row range of motion
FootplatesWide, ergonomically angled, slip-resistant — bilateral
Indoor Use OnlyYes
