What do the 12 vertical and 6 horizontal positions mean in practice?

Each arm adjusts independently across 12 height levels — from floor level through low, mid, and high positions to overhead — and 6 horizontal angles that change how wide or narrow the cable approaches from. The vertical position controls which muscle region the cable loads through the exercise arc. The horizontal position controls the width of the cable path, which changes the angle of adduction or abduction through fly, raise, and rotational movements. Setting both arms to the same position produces standard bilateral cable exercises. Setting them to different positions produces the diagonal cable angles needed for rotational woodchop patterns, sport-specific movement training, and asymmetric functional exercises that standard fixed-position machines cannot replicate.

Can both arms be used at the same time at different weights?

Yes. The two stacks are completely independent — each arm has its own selector pin and its own cable assembly, with no mechanical connection between the two sides. One arm can be set to 30 lbs for a shoulder isolation exercise while the other is set to 80 lbs for a rowing exercise at the same time. This makes the DRE8046 effective for supersets where the same machine serves two different exercises within one training block, for two-user concurrent training from opposite arms, and for bilateral exercises where the programming intentionally loads each arm at a different weight.

What handles are included and what does each one do?

The DRE8046 ships with a rally rope for face pulls and rope-grip pushdowns, rally kits for standard handle cable exercises, a foot traction kit for lower body cable work including hip kickbacks and ankle pulls, a push-pull handle for pressing and pulling patterns, long reach cable sets for extended-grip exercises, and a short pull handle for close-grip cable work. All attachments store on the hook rack's seven gourd hooks at the machine. This selection covers upper body pulling and pushing, core rotation, and lower body cable exercises out of the box without additional accessory purchases.

How does the DRE8046 compare to the DRE8021 Dual Adjustable Pulley?

The DRE8021 is a dual-stack adjustable cable station with 39 height positions per column and a 1.7+ metre column separation specifically sized for maximum pectoral fly range, featuring a pull-up bar and 4-position attachment storage. The DRE8046 is a functional trainer with arm positions that adjust both vertically and horizontally — 12 vertical × 6 horizontal — adding the lateral angle adjustment that the DRE8021's vertical-only columns do not provide. The DRE8046 is the choice for functional training variety with multi-plane arm positioning. The DRE8021 is the choice for maximum cable fly range and pull-up training alongside cable exercise variety.

What Dynasty Fitness machines pair with the DRE8046?

The DRE8046 covers the full functional cable training library. The Adjustable Cable Crossover DRE8024 adds dedicated cable crossover capability with 38 positions per column and a fixed-column separation optimised for fly exercises. The 4-Stack Multi Station DRE8023 extends the training area to concurrent multi-user lat pulldown, low row, triceps pushdown, and adjustable cable from dedicated stations alongside the DRE8046's functional training zone. For dedicated selectorized isolation, the ISO-Lateral Chest Press DRE8001, ISO-Lateral Shoulder Press DRE8004, and Standing Multi Flight DRE8034 complement the DRE8046's functional movement patterns with fixed-arc isolation for the chest, shoulders, and upper body.

Load video: Dual-Arm Functional Trainer DRE8046

Exercises and muscles targeted

The 12 vertical by 6 horizontal position system per arm produces the cable angle combinations that cover pressing, pulling, rotating, and lower body cable work from one machine. Matching both arms produces bilateral exercises; setting them differently produces the diagonal paths rotational and sport-specific patterns require.

Exercise	Muscles Targeted
Cable Chest Fly (high, mid, or low arm)	Pectoralis Major (primary, fibre emphasis shifts with arm height), Anterior Deltoid, Serratus Anterior (secondary)
Cable Row / Pulldown	Latissimus Dorsi, Rhomboids, Middle Trapezius (primary), Biceps Brachii, Rear Deltoid (secondary)
Cable Woodchop / Rotation (diagonal settings)	External and Internal Obliques (primary), Latissimus Dorsi, Rectus Abdominis, Transverse Abdominis (secondary)
Cable Lateral Raise / Curl / Pushdown	Lateral Deltoid, Biceps Brachii, or Triceps Brachii (primary, depending on arm height and attachment)
Cable Hip Kickback / Ankle Pull (foot traction kit)	Gluteus Maximus (primary), Gluteus Medius, Hamstrings (secondary)
Face Pull (high arm + rally rope)	Posterior Deltoid, Infraspinatus, Teres Minor, Middle Trapezius (primary), Rhomboids (secondary)

How to setup and use

Setting Up the DRE8046

Select the working weight on each stack independently using the selector pins.
Adjust each arm across its 12 vertical and 6 horizontal positions for your exercise.
Retrieve your attachment from the hook rack and connect it to the active cable.
Position yourself at the correct working distance to create cable tension at the start.
Confirm both pins are seated and both arm positions locked before beginning.

Performing Bilateral and Unilateral Exercises

For bilateral work, set both arms to the same position and stand centred between them.
Perform the exercise through the full range; each arm runs against its own stack.
For unilateral work, load one arm and stand sideways to it through the full range.
For woodchops, set one arm high or low and drive the rotation from your core.
For lower body work, attach the foot traction kit to the low cable at your ankle.

Who this machine is built for

Commercial gym owners: 72 arm positions per side and two independent stacks serve fly, row, pull, push, rotation, and lower body work from one floor position, with two users training at once.

Personal training studios: The 72-position system covers every cable angle a programming cycle needs, and five included attachments cover all exercise categories out of the box.

University and college athletic departments: The 12x6 adjustment covers the diagonal and multi-plane cable paths sport-specific movement training requires, with two athletes training simultaneously.

Sports performance facilities: Handles the full functional library from single-leg cable work to rotational woodchops, with a cage frame stable under off-axis loading.

Physical therapists and sports medicine practitioners: Independent arm angles and dual stacks allow precise, asymmetric cable rehabilitation, with programming following the practitioner's plan.

Owner's Manual

Access the complete assembly guide, parts list, and maintenance schedule below.

Download Owners Manual

Shipping & Delivery

All Dynasty Fitness equipment ships free to the 48 contiguous US states. Smaller items ship via UPS; large machines ship via freight. For pre-order items, we’ll email you an estimated delivery date.

Processing time: UPS orders typically ship within 5–7 business days. Freight orders usually ship within 2–4 weeks, depending on the product and your location. You’ll receive a tracking number by email once your order ships.

Freight delivery: Delivery is curbside only. The carrier will call you to schedule a delivery appointment, and an adult must be present to sign. Please arrange help to move the equipment from the curb.

Returns: Unused, unassembled items in their original packaging can be returned within 30 days of delivery for store credit. Returns must be approved by our team before shipping back. A 30% restocking fee applies, and return shipping is the customer’s responsibility. If your order arrives damaged, defective, or incorrect, notify us within 48 hours and we’ll replace or exchange it at no cost to you.

Questions? Contact our team at:
📧Email: info@thedynastyfitness.com 📞Call: +1 (213)-584-0858

Need a buying guide?

Looking for one to one support before making final decision?
Feel free to contact us. Our expert support team would love to assist you.

Need Installation Help?

We have partnered with another company to help provide installation around the country. Please use the link below to see the price per machine for installation
See Installation Rates

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Pre Order - Mid NovemberSave 10%

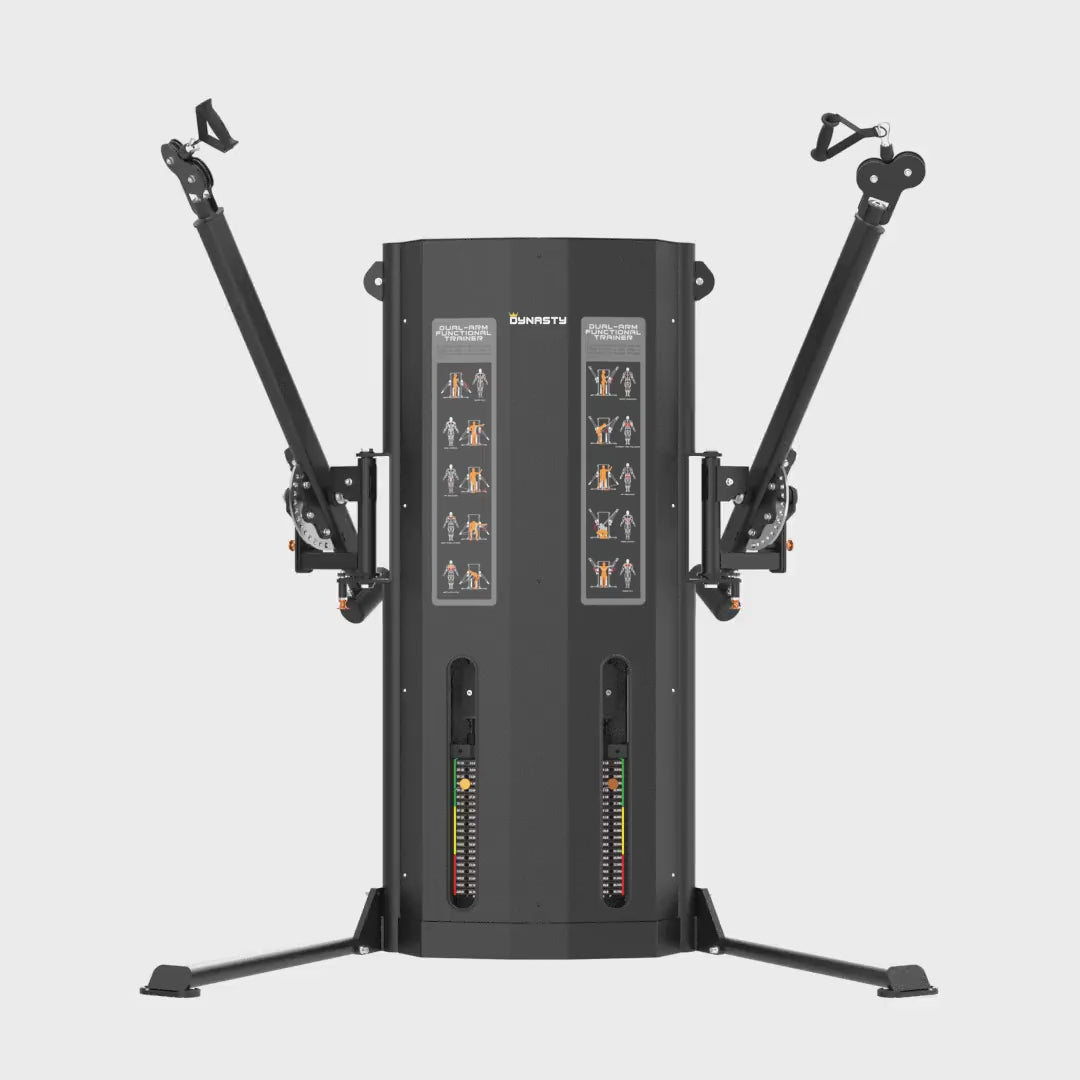

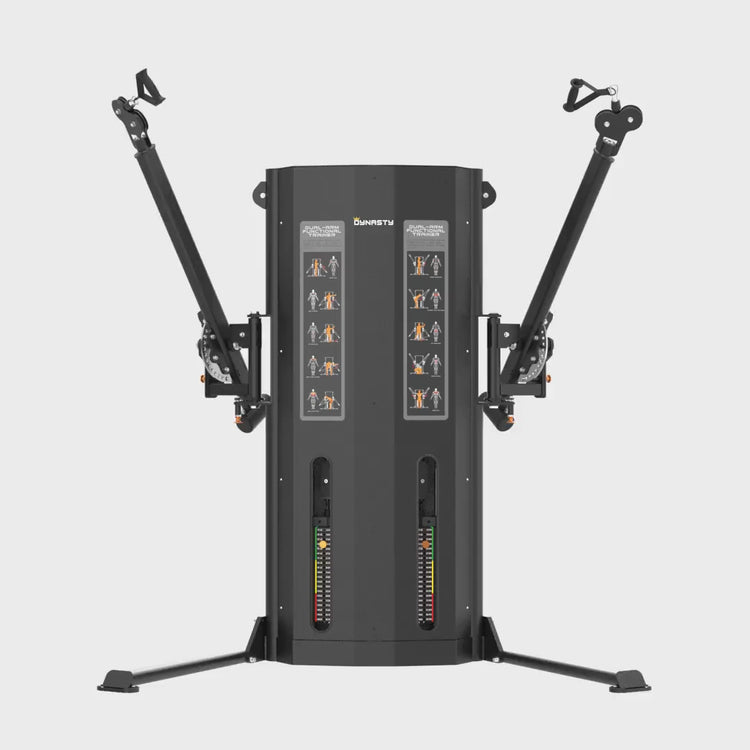

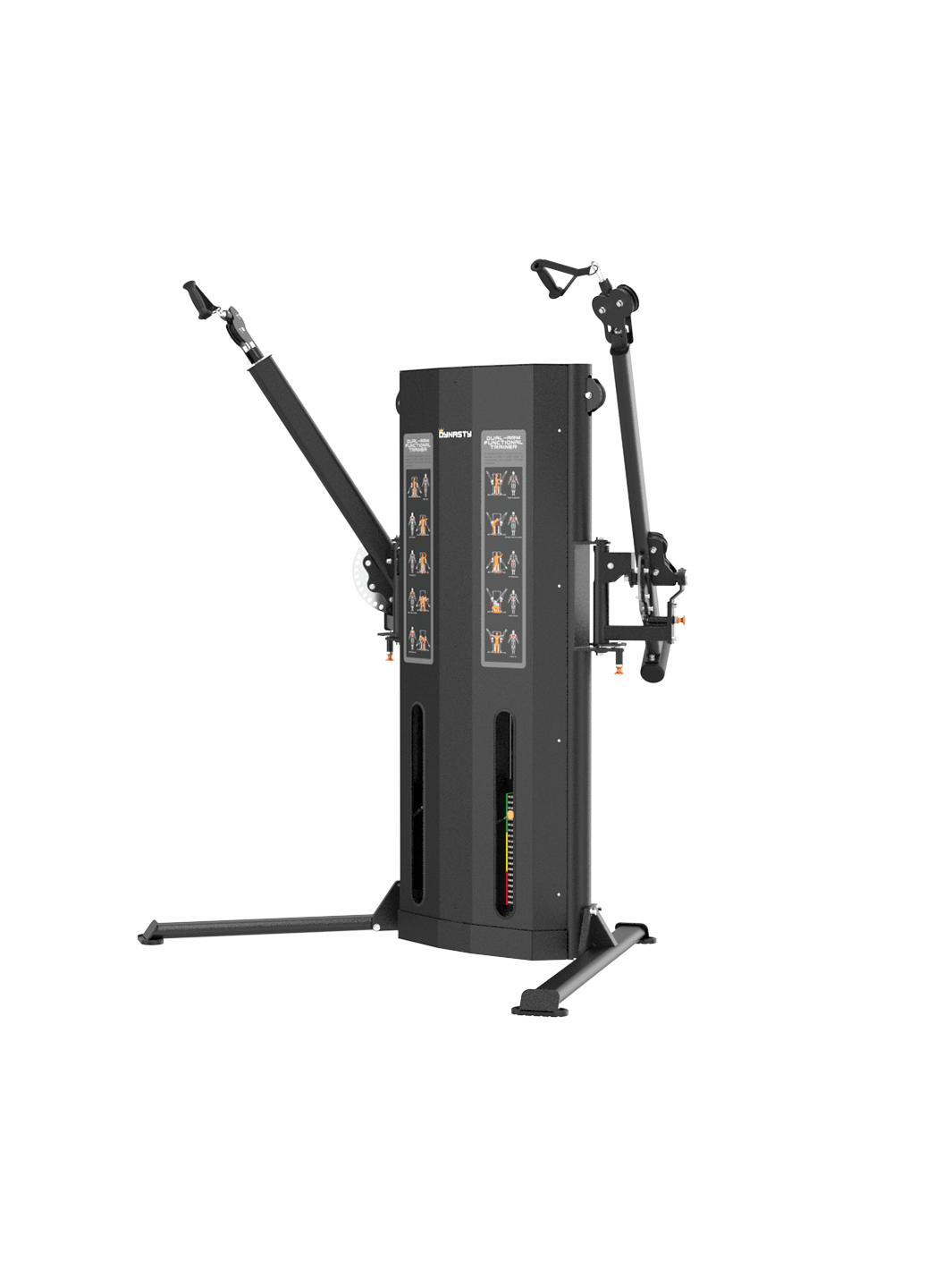

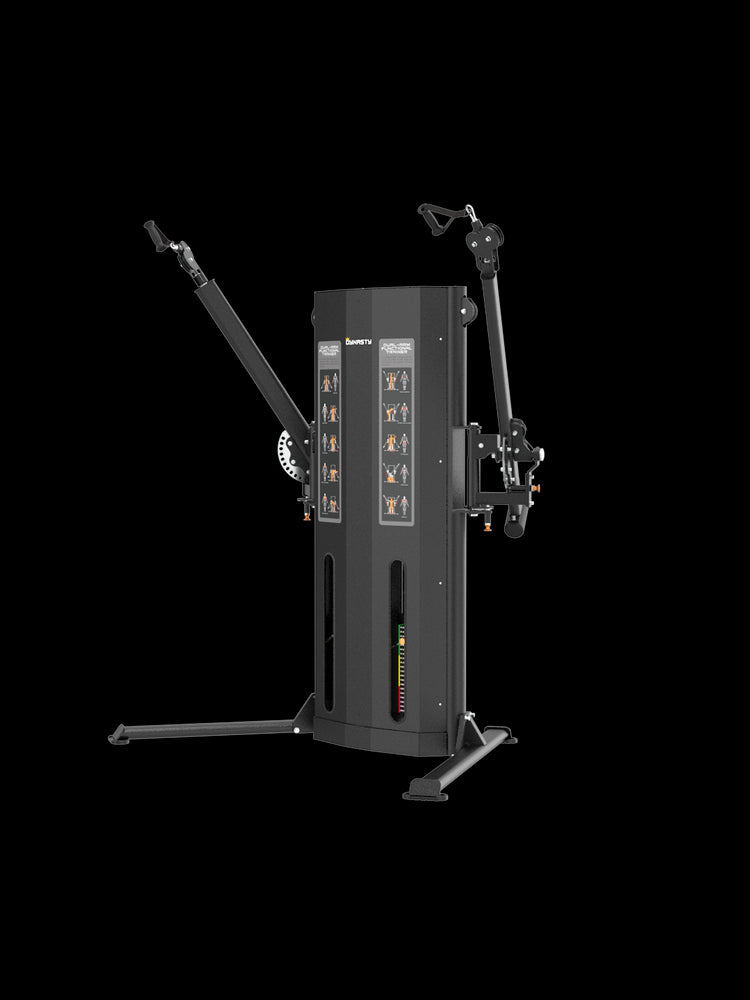

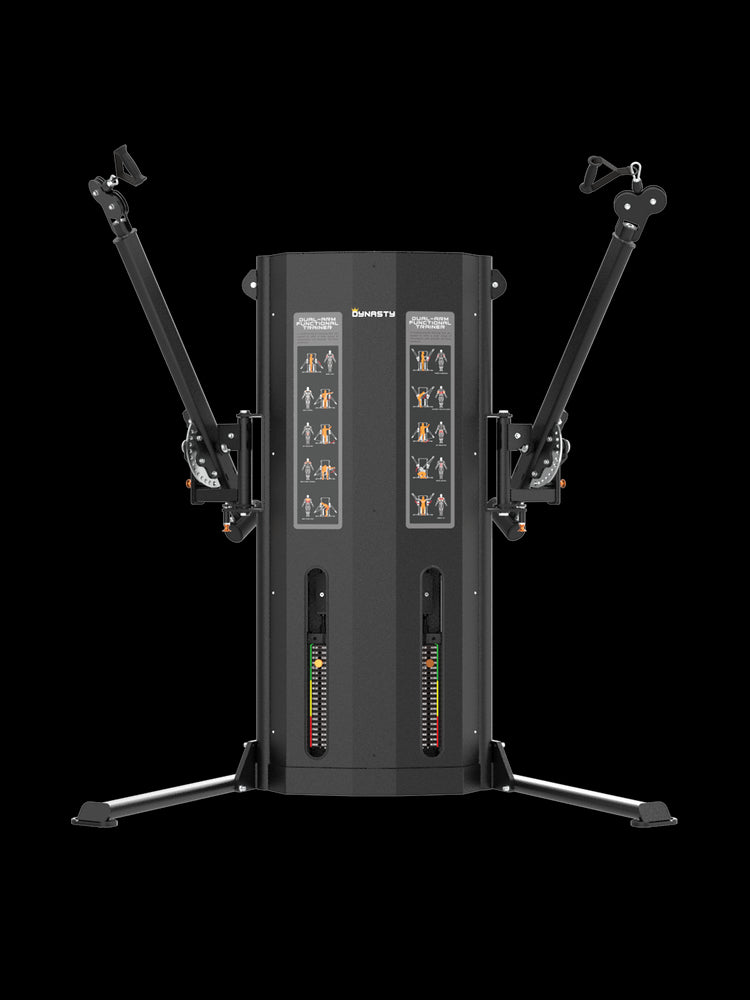

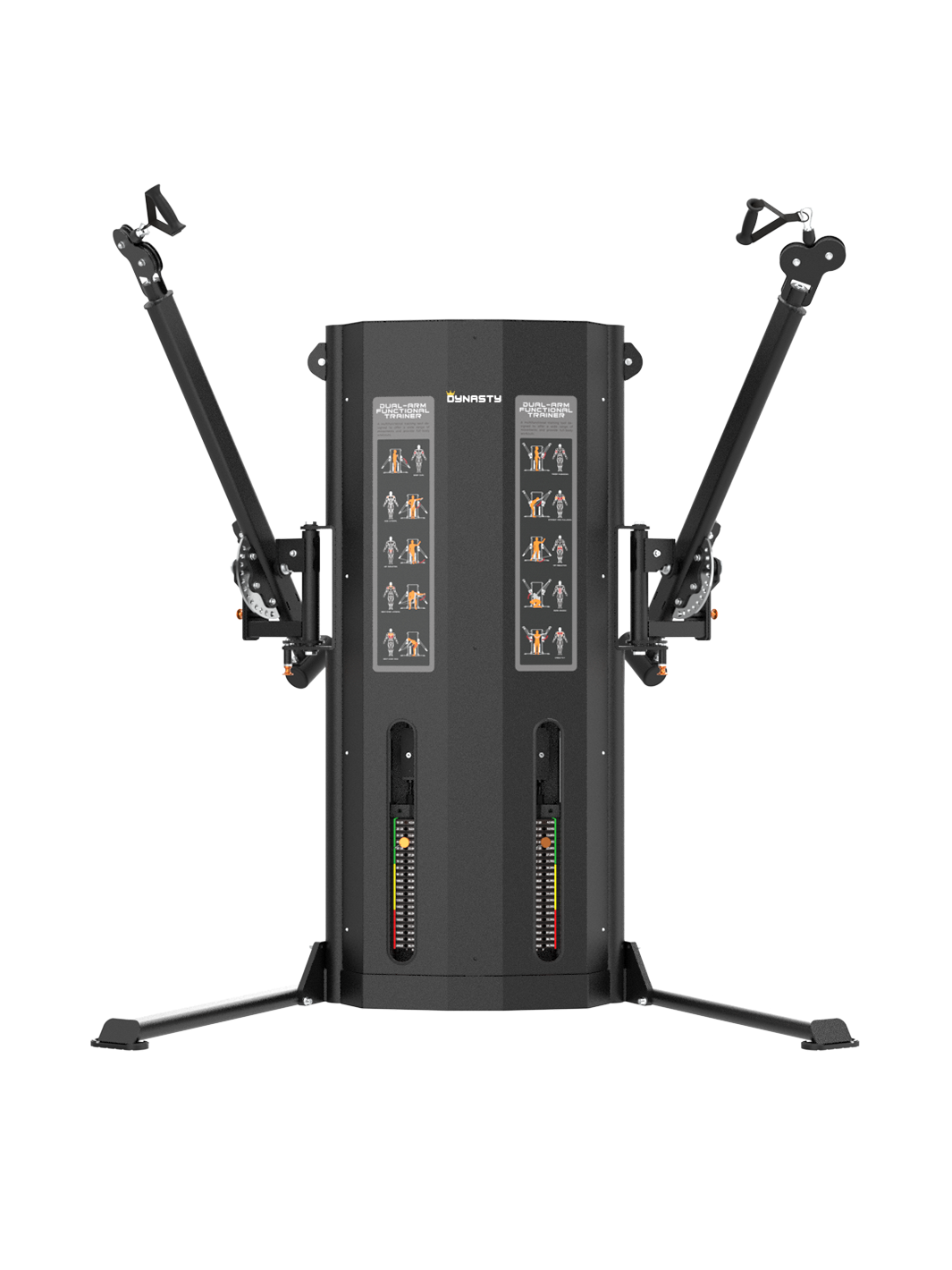

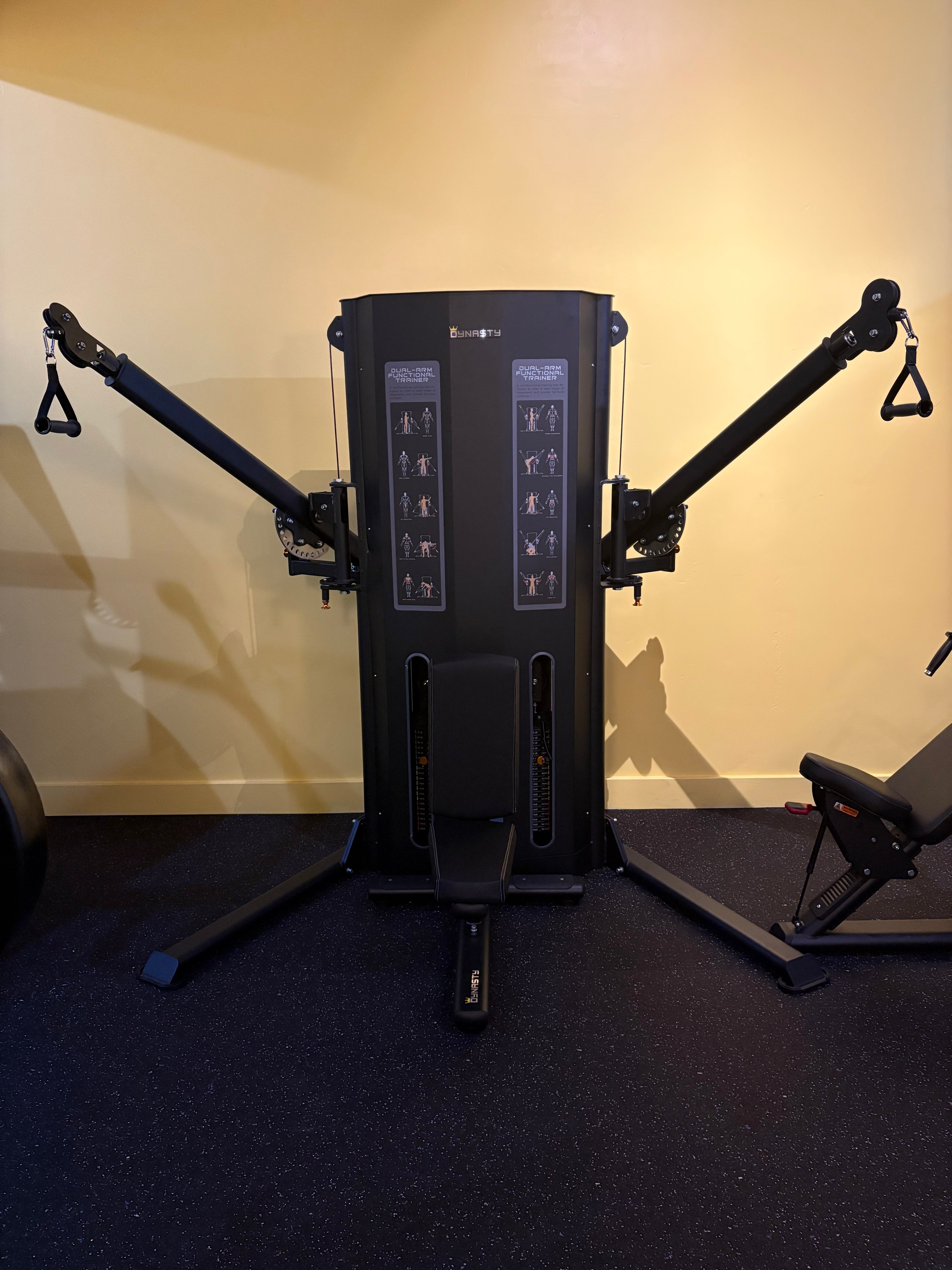

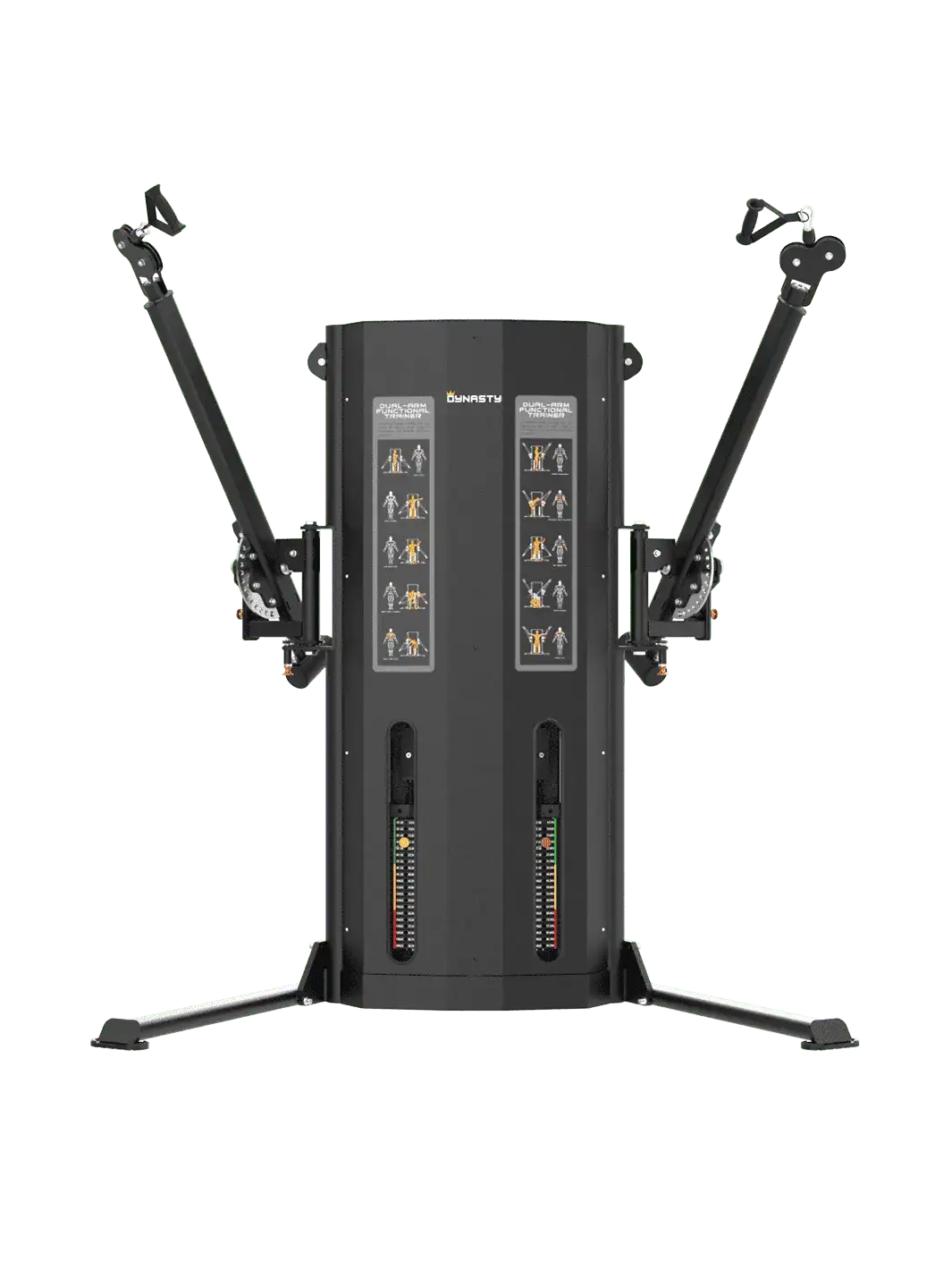

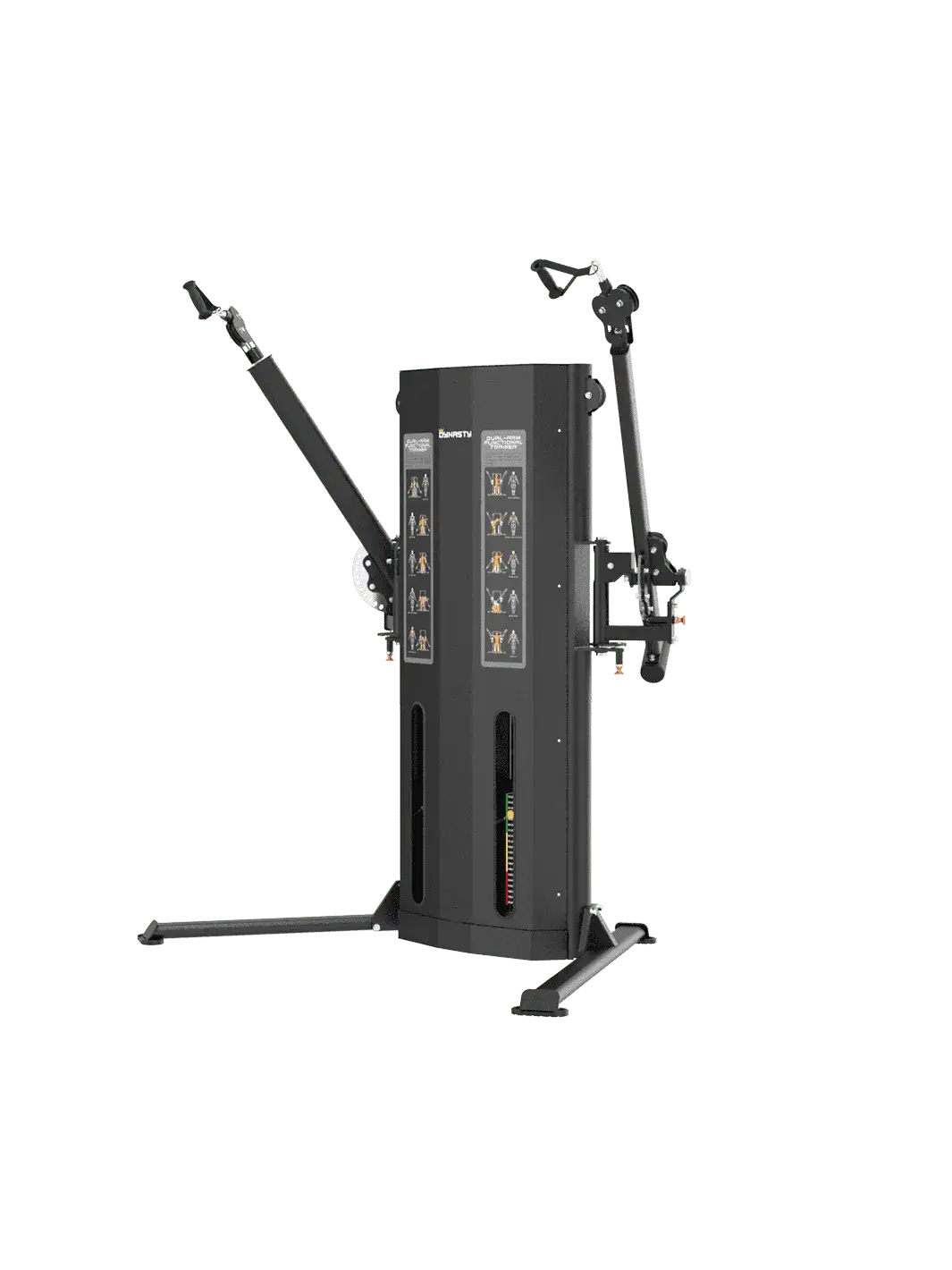

Dual-Arm Functional Trainer DRE8046

$3,329.00

$3,329.00 ~~$3,699.00~~ 10% off (Save$370.00 )

Commercial Grade
Pay With HFA/FSA

Free Shipping
Financing Available

The DRE8046 Dual-Arm Functional Trainer is a selectorized cable station with two completely independent 200 lb weight stacks and two arms that each adjust across 12 vertical and 6 horizontal positions, giving 72 configurations per arm. It covers pressing, pulling, rotational, and full-body cable patterns from every angle.

Built on a high-strength cage frame at 91"x52"x88" with five included attachments, the DRE8046 is the most versatile standalone cable trainer in the DRE80 series.

72 positions per arm: 12 vertical and 6 horizontal settings cover every cable angle from floor-level work to overhead.
Two independent 200 lb stacks: Load each arm to a different weight for unilateral work, asymmetric loading, or two users at once.
Five included attachments: Rally rope, foot traction kit, push-pull handle, long reach cables, and short pull handle, stored on the hook rack.
High-strength cage frame: Holds structural stability under the off-axis loading directions functional training produces.

Limited time offer

Get 20% off when you order 4 or more pieces of equipment!

Exercises and muscles targeted

Exercise	Muscles Targeted
Cable Chest Fly (high, mid, or low arm)	Pectoralis Major (primary, fibre emphasis shifts with arm height), Anterior Deltoid, Serratus Anterior (secondary)
Cable Row / Pulldown	Latissimus Dorsi, Rhomboids, Middle Trapezius (primary), Biceps Brachii, Rear Deltoid (secondary)
Cable Woodchop / Rotation (diagonal settings)	External and Internal Obliques (primary), Latissimus Dorsi, Rectus Abdominis, Transverse Abdominis (secondary)
Cable Lateral Raise / Curl / Pushdown	Lateral Deltoid, Biceps Brachii, or Triceps Brachii (primary, depending on arm height and attachment)
Cable Hip Kickback / Ankle Pull (foot traction kit)	Gluteus Maximus (primary), Gluteus Medius, Hamstrings (secondary)
Face Pull (high arm + rally rope)	Posterior Deltoid, Infraspinatus, Teres Minor, Middle Trapezius (primary), Rhomboids (secondary)

How to setup and use

Setting Up the DRE8046

Select the working weight on each stack independently using the selector pins.
Adjust each arm across its 12 vertical and 6 horizontal positions for your exercise.
Retrieve your attachment from the hook rack and connect it to the active cable.
Position yourself at the correct working distance to create cable tension at the start.
Confirm both pins are seated and both arm positions locked before beginning.

Performing Bilateral and Unilateral Exercises

For bilateral work, set both arms to the same position and stand centred between them.
Perform the exercise through the full range; each arm runs against its own stack.
For unilateral work, load one arm and stand sideways to it through the full range.
For woodchops, set one arm high or low and drive the rotation from your core.
For lower body work, attach the foot traction kit to the low cable at your ankle.

Who this machine is built for

Commercial gym owners: 72 arm positions per side and two independent stacks serve fly, row, pull, push, rotation, and lower body work from one floor position, with two users training at once.

Personal training studios: The 72-position system covers every cable angle a programming cycle needs, and five included attachments cover all exercise categories out of the box.

Sports performance facilities: Handles the full functional library from single-leg cable work to rotational woodchops, with a cage frame stable under off-axis loading.

Physical therapists and sports medicine practitioners: Independent arm angles and dual stacks allow precise, asymmetric cable rehabilitation, with programming following the practitioner's plan.

Owner's Manual

Access the complete assembly guide, parts list, and maintenance schedule below.

Download Owners Manual

Shipping & Delivery

Need a buying guide?

Looking for one to one support before making final decision?
Feel free to contact us. Our expert support team would love to assist you.

Need Installation Help?

We have partnered with another company to help provide installation around the country. Please use the link below to see the price per machine for installation
See Installation Rates

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Dual-Arm Functional Trainer DRE8046

$3,329.00

$3,329.00 ~~$3,699.00~~ 10% off (Save$370.00 )

Key Features

12 Vertical × 6 Horizontal Arm Adjustment

Each arm adjusts independently across 12 height positions and 6 horizontal angles, producing 72 configurations per side. Setting the arms to different positions produces the diagonal and asymmetric cable paths that rotational core work, woodchops, and sport-specific movements require and single-plane machines cannot.

Two Independent 200 lb Weight Stacks

Left and right stacks have no mechanical connection, so loading one does not affect the other. This enables bilateral work at different loads per side, unilateral training, rotational patterns using one stack, and two users training from opposite arms at once. Both stacks are fixed at 200 lbs.

Five Included Handle Attachments

The DRE8046 ships with a rally rope, rally kits, foot traction kit, push-pull handle, long reach cable sets, and short pull handle, stored on the hook rack's seven gourd hooks. These cover upper body, core, rotational, and lower body cable work without additional accessory purchases.

High-Strength Cage Frame

The cage frame holds structural stability under the multi-directional loading functional training generates. Unlike pressing machines with a predictable load direction, this trainer is loaded from every angle the 72-position system allows, and the high-strength build minimises vibration across all of them.

Product Information
Product Name	Dual-Arm Functional Trainer
Model	DRE8046
Series	DRE80 Selectorized Series
Product Type	Selectorized Dual-Arm Functional Cable Trainer
Functions	Cable fly, row, pull, push, lateral raise, curl, pushdown, rotation/woodchop, face pull, lower body cable exercises
Grade	Commercial
Colour	Black

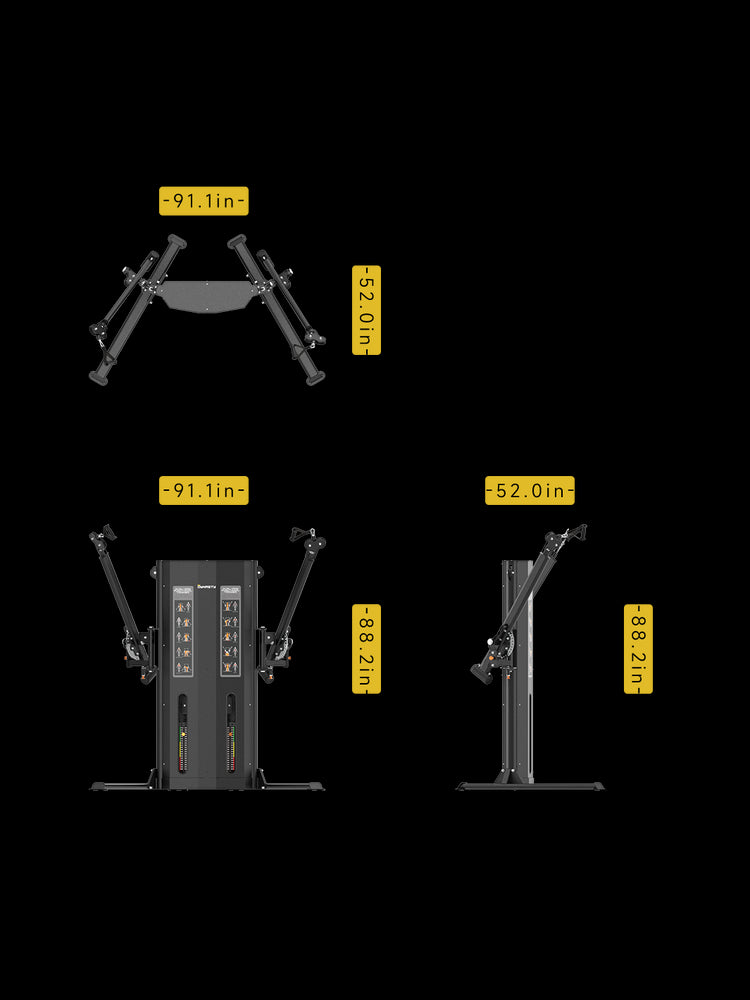

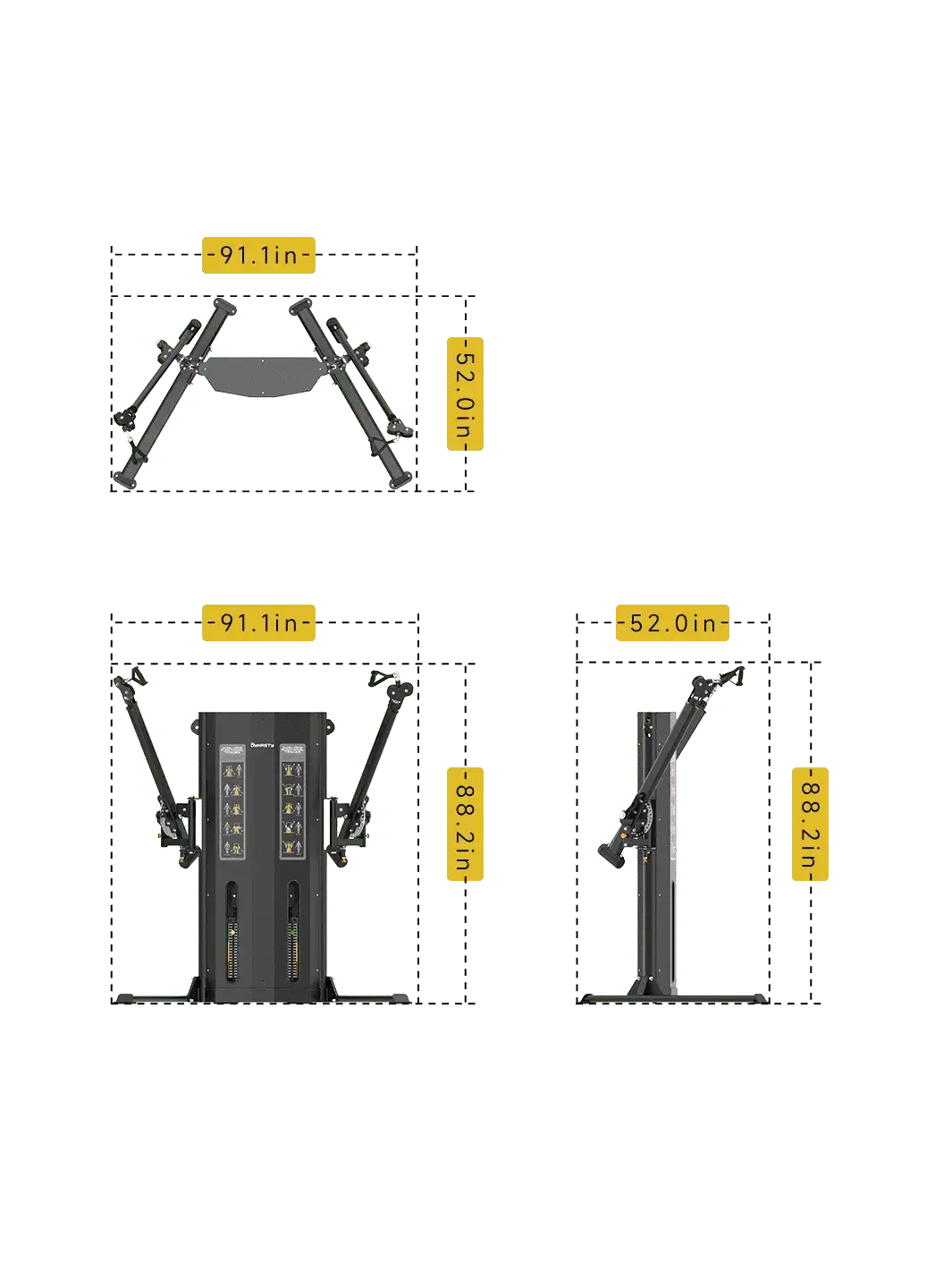

Dimensions and Weight
Length	91 in (231.5 cm)
Width	52 in (132.0 cm)
Height	88 in (224.0 cm)
Net Weight	948 lbs (430 kg)
Weight Stacks
Standard Weight Stack	200 lbs × 2 independent stacks
Stack Configuration	Fully independent — each arm adjustable to different working weights
Arm Adjustment System
Vertical Positions per Arm	12 positions — floor level to overhead
Horizontal Positions per Arm	6 positions — narrow to wide angle
Total Configurations per Arm	72 position combinations
Arm Independence	Fully independent — each arm adjustable to different positions simultaneously
Included Accessories
Included Handles	Rally rope, rally kit ×2, foot traction kit, push-pull handle, long reach cable set ×2, short pull handle
Storage	Hook rack with 7 gourd hooks
Frame and Construction
Frame	High-strength cage frame with left and right arm force racks and ground racks
Pulleys	20 small pulleys — dual rotating pulley frames and fixed pulley frames
Guide Rods	× 4
Bearings	6005-2Z
Indoor Use Only	Yes
