Load video: 7° Angled Smith Machine DRE6030

Exercises and muscles targeted

Exercise	Muscles Targeted
Smith Machine Squat	Quadriceps — all four heads (primary — bilateral knee extension under bar load), Gluteus Maximus (primary — hip extension through full squat range), Hamstrings (secondary — hip extension stabiliser), Adductor Magnus (secondary — posterior adductor at depth)
Smith Machine Bench Press	Pectoralis Major — Sternal Head (primary — horizontal pressing under guided bar), Triceps Brachii (primary — elbow extension), Anterior Deltoid (secondary), Serratus Anterior (scapular stabiliser)
Smith Machine Incline Press	Pectoralis Major — Clavicular Head (primary — incline angle targets upper chest), Anterior Deltoid (increased secondary vs flat press), Triceps Brachii (primary)
Smith Machine Overhead Press	Anterior and Lateral Deltoid (primary — vertical pressing from rack height), Triceps Brachii (primary), Upper Trapezius (secondary — scapular elevation at lockout)
Smith Machine Bent-Over Row	Latissimus Dorsi (primary — horizontal pull with bar anchored to guided path), Rhomboids, Middle Trapezius (primary — scapular retraction), Biceps Brachii (secondary), Rear Deltoid (secondary), Erector Spinae (lumbar stabiliser)
Smith Machine Deadlift	Erector Spinae (primary — lumbar extension under load), Gluteus Maximus, Hamstrings (primary — hip extension), Quadriceps (primary — knee extension from floor), Upper Trapezius (secondary — bar hold), Forearms (grip)
Smith Machine Romanian Deadlift	Hamstrings (primary — hip-hinge movement emphasises hamstring eccentric stretch), Gluteus Maximus (primary), Erector Spinae (secondary — lumbar hold through hip hinge)
Smith Machine Lunge	Quadriceps (primary — front leg knee extension), Gluteus Maximus (primary — front leg hip extension), Hamstrings (secondary), Hip Stabilisers (reduced vs free-weight lunge — bar path provides lateral stability)
Smith Machine Calf Raise	Gastrocnemius (primary — plantar flexion under bar load with straight knee), Soleus (secondary), Tibialis Anterior (stabiliser during lowering)

The 7° angle of the DRE6030's guide system is what makes its exercise variety superior to a vertical Smith machine. The 7° forward tilt means the bar path moves naturally with the body's centre of mass as it shifts forward during squats and backward during rows — matching the path a free barbell would follow rather than forcing the body to compensate for a mechanically vertical bar. The independent safety stops allow low starting positions for deadlifts and bent-over rows without the stops being in the way, expanding the exercise library beyond what vertical Smith machines with fixed-height safety systems cover.

Who this machine is built for

Serious Home Gym Builders
A 7° angled Smith machine covers squats, presses, rows, deadlifts, lunges, and overhead work from one 45.2"×88.5" station with 14 rack heights, independent safety stops for solo training, and 8 plate storage horns keeping the training area organised. For home gym setups where a barbell rack, bench, and multiple stations would otherwise be needed, the DRE6030 consolidates compound barbell training into one commercially graded, self-spotting structure.

Bodybuilders and Physique Athletes
The Smith machine is standard bodybuilding equipment for isolation-focused barbell compound work — Smith squats with narrow or wide stance for specific quad and glute targeting, incline and decline Smith presses for pectoral region emphasis, and Smith machine rows for controlled back thickness training at loads that free-bar alternatives require a spotter to match. The 7° angle produces a more natural pressing and squatting arc than vertical Smith machines, and the dual band peg system adds end-range resistance for peak contraction emphasis across every exercise.

Commercial Gym Owners and Operators
A Smith machine is one of the highest-utilisation pieces of equipment on any commercial floor — it allows members to train squats, presses, and rows without a spotter, which is the critical commercial advantage over a free barbell rack for solo training. The DRE6030's 661 lb load capacity, independent safety stops, and 14 rack positions handle the full exercise range and membership size range of a commercial facility. The 8 plate storage horns keep weight plates off the floor and out of the surrounding training area.

Personal Trainers and Private Studios
A Smith machine allows trainers to programme heavy compound barbell movements with clients who are not yet technically proficient enough to handle a free barbell safely — the guided bar path provides the stability scaffold while the client develops squat, press, and row mechanics under load. The 7° angle produces mechanics closer to free-bar training than vertical alternatives, which means the skill transfer to free-bar movements is higher. The independent safety stops eliminate the need for the trainer to act as spotter during max-effort sets.

University and College Athletic Departments
Smith machine squat, press, and row training is used in athletic programmes where the guided bar path allows athletes to train at higher loads during technique development phases or during post-injury return-to-training where free-bar stability demand is temporarily reduced. The 7° angle's more natural bar path makes it appropriate for team use across a wide range of athletic body types and limb proportions. The 14 racking positions cover every athlete height across a team roster.

Physical Therapists and Sports Medicine Practitioners
The guided bar path of a Smith machine makes it one of the most commonly used tools in orthopaedic rehabilitation for reintroducing compound barbell loading — squats and presses can be performed at clinically appropriate loads without the balance and stability demand that free barbells require, which is the critical distinction for patients in early return-to-loading phases. The 7° angle produces a more natural joint loading direction than vertical Smith machines, which reduces the ankle and knee compensation that vertical bar paths create during squatting. The independent safety stops allow range of motion to be restricted to each patient's safe working depth. Exercise selection, load, and range of motion must always follow the clinical programme specific to each patient's condition and recovery stage.

How to setup and use

Setting Up the DRE6030

Set the barbell to the required starting rack height using the 14-position hook shaft system. Rotate the bar to engage the hook onto the rack at the selected height — the hooks rotate out to unrack and back in to re-rack at any point during the set.
Set the independent safety stops on both sides to the lowest safe depth for the exercise — just below the lowest point of the movement for squats and presses, or just above floor level for deadlifts and rows. The safety stops are independent and compact, so they do not interfere with the starting position of low-pull exercises.
Load weight plates onto the barbell and distribute evenly on both sides. Store additional plates on the 8 storage horns (4 per side) within arm's reach of the bar.
For band-assisted exercises, attach bands to the upper pegs and loop them over the barbell — the bands pull the bar upward at the bottom of the movement, reducing the effective load where the bar is heaviest. For band-resisted exercises, anchor bands to the lower pegs and loop them over the barbell — the bands pull downward at the top, increasing resistance where the bar is lightest.
Stand or position under the bar at the correct stance width and foot position for the selected exercise before rotating the bar out of the rack.

Performing Smith Machine Squat

Position the bar across the upper back at the chosen squat bar position — high bar for quad emphasis, low bar for posterior chain emphasis.
Stand with feet shoulder to hip width apart and slightly forward of the bar due to the 7° angle — the angled path means the bar will travel slightly forward as it descends, matching the natural shift of the centre of mass.
Squat to the depth set by the safety stops, driving the knees outward over the toes and keeping the chest upright.
Drive upward through the legs to full extension and re-rack by rotating the bar back onto the hooks.

Performing Smith Machine Bench Press and Row

For bench press: position a bench under the bar at the correct height and lie with the bar directly above the chest or upper chest for the selected press variation. Unrack, press to full extension, and re-rack by rotating.
For bent-over row: set the safety stops just above knee height. Stand with a hip-width stance and hinge forward to grip the bar. Set the stops as the catch if the back fails — a safety feature free-bar rows cannot provide. Row the bar to the lower chest and lower under control.

Owner's Manual

Access the complete assembly guide, parts list, and maintenance schedule below.

Download Owners Manual

Shipping & Delivery

All Dynasty Fitness equipment ships free across the 48 contiguous US states via freight carrier. If the product description says preorder, we'll send you an estimated delivery date via email.

Estimated delivery: 7–14 business days from order confirmation. You will receive a tracking number and a delivery window confirmation call before your shipment arrives. Deliveries are curbside standard, white glove delivery to room of choice is available at checkout.

Returns: Free within 30 days of delivery. Items must be in original condition and packaging. Refunds processed within 5 business days of return receipt.

Questions? Contact our team at:
📧Email: info@thedynastyfitness.com
📞Call: +1 (213)-584-0858

Need a buying guide?

Looking for one to one support before making final decision?
Feel free to contact us. Our expert support team would love to assist you.

Need Installation Help?

We have partnered with another company to help provide installation around the country. Please use the link below to see the price per machine for installation
See Installation Rates

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Save 10%

7° Angled Smith Machine DRE6030

$2,649.00

$2,649.00 ~~$2,949.00~~ 10% off (Save$300.00 )

Commercial Grade
Pay With HFA/FSA

Free Shipping

The Dynasty Fitness DRE6030 7° Angled Smith Machine is a precision barbell training station built around a dual-axis linear guide system angled at 7° to match the natural forward-inclined bar path of squats, presses, rows, and deadlifts — producing a more anatomically correct movement than vertical Smith machines that force the bar through a straight up-and-down path the body does not naturally follow. Fourteen racking positions, independent left and right safety stops, a dual band peg system with upper and lower pegs, and eight weight plate storage horns complete a 661 lb capacity commercial Smith machine at 45.2"×88.5"×96.8".

7° angled dual-axis guide system tilts the bar path forward to match the natural arc that the barbell follows during squats, presses, and rows — reducing the joint compensation that vertical Smith machines require to keep the body under a bar that does not move the way the body naturally moves under load
14 racking positions on hook shafts both short and long cover every starting height from deadlift and bent-over row floor-level positions through to overhead press rack height, with independent left and right safety stops that adjust without interfering with the low starting positions these exercises require
Dual band peg system covers both ends of the strength curve — upper pegs anchor bands that assist during the bottom of the lift where the bar is heaviest relative to muscle strength, lower pegs anchor bands that add end-range resistance where the muscles are strongest and bodyweight or plate load alone provides the least stimulus
Eight weight plate storage horns (4 per side) keep all working plates at the machine and out of the lifting zone, with the horns positioned specifically to avoid interference with the barbell path at any of the 14 rack heights

Limited time offer

Get 20% off when you order 4 or more pieces of equipment!

Exercises and muscles targeted

Exercise	Muscles Targeted
Smith Machine Squat	Quadriceps — all four heads (primary — bilateral knee extension under bar load), Gluteus Maximus (primary — hip extension through full squat range), Hamstrings (secondary — hip extension stabiliser), Adductor Magnus (secondary — posterior adductor at depth)
Smith Machine Bench Press	Pectoralis Major — Sternal Head (primary — horizontal pressing under guided bar), Triceps Brachii (primary — elbow extension), Anterior Deltoid (secondary), Serratus Anterior (scapular stabiliser)
Smith Machine Incline Press	Pectoralis Major — Clavicular Head (primary — incline angle targets upper chest), Anterior Deltoid (increased secondary vs flat press), Triceps Brachii (primary)
Smith Machine Overhead Press	Anterior and Lateral Deltoid (primary — vertical pressing from rack height), Triceps Brachii (primary), Upper Trapezius (secondary — scapular elevation at lockout)
Smith Machine Bent-Over Row	Latissimus Dorsi (primary — horizontal pull with bar anchored to guided path), Rhomboids, Middle Trapezius (primary — scapular retraction), Biceps Brachii (secondary), Rear Deltoid (secondary), Erector Spinae (lumbar stabiliser)
Smith Machine Deadlift	Erector Spinae (primary — lumbar extension under load), Gluteus Maximus, Hamstrings (primary — hip extension), Quadriceps (primary — knee extension from floor), Upper Trapezius (secondary — bar hold), Forearms (grip)
Smith Machine Romanian Deadlift	Hamstrings (primary — hip-hinge movement emphasises hamstring eccentric stretch), Gluteus Maximus (primary), Erector Spinae (secondary — lumbar hold through hip hinge)
Smith Machine Lunge	Quadriceps (primary — front leg knee extension), Gluteus Maximus (primary — front leg hip extension), Hamstrings (secondary), Hip Stabilisers (reduced vs free-weight lunge — bar path provides lateral stability)
Smith Machine Calf Raise	Gastrocnemius (primary — plantar flexion under bar load with straight knee), Soleus (secondary), Tibialis Anterior (stabiliser during lowering)

Who this machine is built for

How to setup and use

Setting Up the DRE6030

Set the barbell to the required starting rack height using the 14-position hook shaft system. Rotate the bar to engage the hook onto the rack at the selected height — the hooks rotate out to unrack and back in to re-rack at any point during the set.
Set the independent safety stops on both sides to the lowest safe depth for the exercise — just below the lowest point of the movement for squats and presses, or just above floor level for deadlifts and rows. The safety stops are independent and compact, so they do not interfere with the starting position of low-pull exercises.
Load weight plates onto the barbell and distribute evenly on both sides. Store additional plates on the 8 storage horns (4 per side) within arm's reach of the bar.
For band-assisted exercises, attach bands to the upper pegs and loop them over the barbell — the bands pull the bar upward at the bottom of the movement, reducing the effective load where the bar is heaviest. For band-resisted exercises, anchor bands to the lower pegs and loop them over the barbell — the bands pull downward at the top, increasing resistance where the bar is lightest.
Stand or position under the bar at the correct stance width and foot position for the selected exercise before rotating the bar out of the rack.

Performing Smith Machine Squat

Position the bar across the upper back at the chosen squat bar position — high bar for quad emphasis, low bar for posterior chain emphasis.
Stand with feet shoulder to hip width apart and slightly forward of the bar due to the 7° angle — the angled path means the bar will travel slightly forward as it descends, matching the natural shift of the centre of mass.
Squat to the depth set by the safety stops, driving the knees outward over the toes and keeping the chest upright.
Drive upward through the legs to full extension and re-rack by rotating the bar back onto the hooks.

Performing Smith Machine Bench Press and Row

For bench press: position a bench under the bar at the correct height and lie with the bar directly above the chest or upper chest for the selected press variation. Unrack, press to full extension, and re-rack by rotating.
For bent-over row: set the safety stops just above knee height. Stand with a hip-width stance and hinge forward to grip the bar. Set the stops as the catch if the back fails — a safety feature free-bar rows cannot provide. Row the bar to the lower chest and lower under control.

Owner's Manual

Access the complete assembly guide, parts list, and maintenance schedule below.

Download Owners Manual

Shipping & Delivery

All Dynasty Fitness equipment ships free across the 48 contiguous US states via freight carrier. If the product description says preorder, we'll send you an estimated delivery date via email.

Returns: Free within 30 days of delivery. Items must be in original condition and packaging. Refunds processed within 5 business days of return receipt.

Questions? Contact our team at:
📧Email: info@thedynastyfitness.com
📞Call: +1 (213)-584-0858

Need a buying guide?

Looking for one to one support before making final decision?
Feel free to contact us. Our expert support team would love to assist you.

Need Installation Help?

We have partnered with another company to help provide installation around the country. Please use the link below to see the price per machine for installation
See Installation Rates

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

7° Angled Smith Machine DRE6030

$2,649.00

$2,649.00 ~~$2,949.00~~ 10% off (Save$300.00 )

Key Features

7° Angled Dual-Axis Linear Guide System

The 7° forward tilt of the guide rods matches the natural forward shift of the barbell's path during squats, presses, and rows — rather than forcing the bar vertically, which the body must then compensate for by adjusting ankle, knee, and hip position. The dual-axis bearing system (φ30 bearings ×4 and needle bearings ×4) ensures the bar slides with minimal friction throughout the full range of every exercise, maintaining consistent resistance feel from the bottom to the top of every lift.

14 Racking Positions

Short and long hook shafts on both sides provide 14 distinct barbell starting heights covering floor-level deadlift and row positions through to overhead press rack height. The barbell re-racks at any height by rotating the hooks back onto the nearest hook shaft — which means the bar can be safely re-racked at any point during a set without requiring a spotter to catch it.

Independent Safety Stops

Left and right safety stops adjust independently and are compact enough to be positioned just above floor level without obstructing the bar path during deadlifts and bent-over rows — exercises that vertical Smith machines with fixed-height safety systems cannot safely accommodate from a true starting position. Independent adjustment also allows asymmetric safety configurations for unilateral exercises where one side reaches a different depth than the other.

Dual Band Peg System

Upper pegs position bands to pull the bar upward during the early concentric phase — useful for overcoming sticking points in squats and presses where the bar is heaviest relative to muscle strength at the bottom. Lower pegs position bands to pull the bar downward at the top of the movement — adding resistance at the peak contraction where plate load alone provides the least stimulus. Both systems are available simultaneously for exercises where the full strength curve needs both assistance at the bottom and resistance at the top.

Eight Weight Plate Storage Horns

Four storage horns on each side keep every working plate set within arm's reach of the bar without encroaching on the training zone or the bar path at any of the 14 rack heights. Having storage integrated into the machine structure eliminates the separate plate tree and the floor-level plate management that freestanding Smith machines require, which is particularly relevant in commercial environments where training area cleanliness and safety around the lifting zone matter.

Product Information
Product Name	7° Angled Smith Machine
Model	DRE6030
Series	DRE60 Free Weight Series
Product Type	7° Angled Commercial Smith Machine
Functions	Squat, bench press, incline/decline press, overhead press, bent-over row, deadlift, Romanian deadlift, lunge, calf raise
Resistance Type	Plate-loaded barbell + optional resistance bands
Grade	Commercial
Colour	Gray

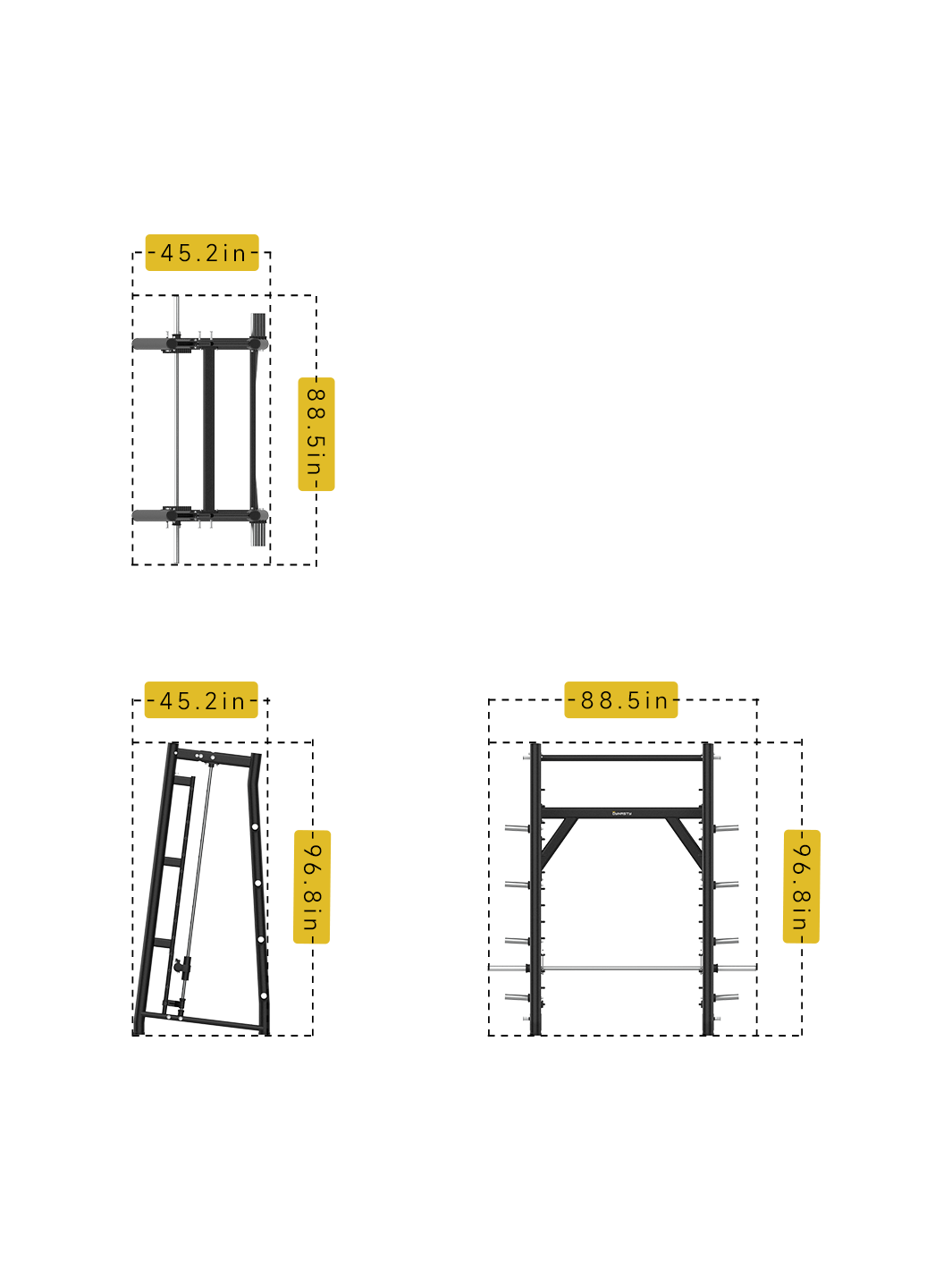

Dimensions and Capacity
Length	45.2 in (114.8 cm)
Width	88.5 in (224.8 cm)
Height	96.8 in (245.9 cm)
Net Weight	465 lbs (211 kg)
Max Load Capacity	661 lbs (300 kg)
Guide System
Bar Path Angle	7° forward incline — anatomically matched to natural bar path
Guide System	Dual-axis precision linear guide rods ×2
Bearings	φ30 bearings ×4, needle bearings ×4
Racking and Safety
Racking Positions	14 positions — short hook shafts ×4 and long hook shafts ×4
Safety Stops	Independent left and right — compact, low-profile, adjustable to floor level
Band Pegs and Storage
Band Pegs	Dual system — upper pegs (lift-off assistance) and lower pegs (end-range resistance)
Weight Plate Storage	8 horns total — 4 per side, positioned outside the lifting zone
Frame and Construction
Frame	Left and right stand frames with cross braces and upper connection frame — commercial-grade steel
Floor Mats	×4
Indoor Use Only	Yes

Q: Why does the 7° angle matter compared to a vertical Smith machine?
A: A vertical Smith machine forces the bar straight up and down regardless of how the body naturally moves under a barbell. In a free-weight squat, the barbell travels slightly forward as the body descends and the hips move back — following the body's centre of mass. In a vertical Smith squat, the body must compensate for the fixed vertical path by adjusting ankle, knee, and hip position in ways that do not reflect natural squat mechanics. The 7° forward tilt of the DRE6030 matches the natural forward shift of the bar path, producing squat, press, and row mechanics that more closely resemble free-bar training while still providing the guided bar path that Smith machines are valued for.

Q: How do the independent safety stops work and why are they important for rows and deadlifts?
A: Each safety stop adjusts independently and locks at any height along the guide rails. They are compact in profile — designed specifically to sit close to the bar without protruding into the training area. This allows them to be set just above floor level for deadlifts and bent-over rows without the stop height creating an obstacle at the starting position of the lift, which is the common problem with fixed-height or bulky safety systems on other Smith machines. If the lift fails, the bar rests on the stops at whatever depth they are set to — providing a catch at any height the user selects rather than only at a fixed high position.

Q: How does the dual band peg system work for different exercises?
A: Upper band pegs are positioned near the top of the frame — bands looped from the upper pegs over the barbell pull the bar upward, which reduces the effective weight of the bar at the bottom of the movement where the bar is heaviest relative to the muscles' force production capacity. This assists the lift-off phase and helps overcome the bottom sticking point in squats and presses. Lower band pegs are positioned near floor level — bands looped from the lower pegs over the barbell pull the bar downward, which increases resistance at the top of the movement where plate load alone provides the least challenge. Both peg systems can be used simultaneously for exercises where the full strength curve needs both bottom assistance and top resistance.

Q: What is the maximum safe load for the DRE6030?
A: The DRE6030 has a maximum load capacity of 661 lbs (300 kg) — this includes the combined weight of the barbell, all plates loaded, and the user's own bodyweight contribution to any exercise where the body is under the bar. For exercises where the user's weight is not on the bar (bench press, overhead press), the plate load capacity is limited only by the 661 lb structural maximum. For squats and similar exercises, the effective plate load ceiling is the 661 lb maximum minus the user's body weight.

Q: What additional equipment pairs with the DRE6030 for a complete barbell training area?
A: The DRE6030 handles all major compound barbell movements from one station. Pair it with an adjustable bench for incline, flat, and decline press variations. The DRE60 series Glute/Ham Developer Bench DRE6032 complements the posterior chain work of the Smith deadlift and Romanian deadlift with dedicated GHD raise and Nordic curl training. For accessory isolation work alongside the compound barbell training, the DRE80 selectorized series machines cover every major isolation exercise — leg extensions, leg curls, chest fly, lat pulldowns, and arm isolation — from dedicated stations that the Smith machine does not replace.
