Multi Back Extension DPB410

Regular price $2,149.00
Sale price $2,149.00 Regular price $2,399.00 10% off (Save$250.00 )

Key Features

1.

Knee-Flexed Hip Extension Mechanics

The leg pad sits behind the knee, keeping it flexed throughout the movement. A bent knee shortens the hamstrings so they cannot generate their full contribution to hip extension, shifting the primary load onto the gluteus maximus, which is not disadvantaged by the knee position. The glute dominates across the full range rather than sharing the work as it would in a straight-leg back extension.
2.

9-Position Pneumatic Leg Pad System

The pad adjusts to 9 height and angle positions using two gas springs paired with a toothed plate mechanism. The gas spring assist means the pad moves with light one-handed pressure rather than lifting and slamming against a pin, a daily-use advantage in commercial facilities where the pad is adjusted dozens of times across a session for users of different heights and thigh lengths.
3.

5-Level Rear Footplate Height Adjustment

The elevated rear footplate sets the height the feet contact the platform, which determines knee flexion at the start of the movement. A lower setting increases flexion and shortens the hamstrings further, pushing more load onto the glutes. A higher setting reduces flexion for slightly more hamstring co-activation, giving control over the glute-versus-posterior-chain balance within one machine.
4.

Dual Anti-Slip Footplates

Two footplate covers serve flat and angled stance modes, giving a choice of foot orientation that suits different hip positions and ankle mobility profiles. The flanged edges create a physical stop that prevents the feet sliding forward or off the plate during the drive and eccentric phases, which under heavy loads would otherwise break position and reduce rep quality.
5.

Two Leg and Thigh Pads

Two padded contact pads rest against the back of the leg at the thigh and calf when mounted. As the primary contact point receiving the hip extension force, they distribute that force evenly rather than concentrating it at a pressure point that forces a mid-rep adjustment. The 100mm depth cushions heavy plate loads while holding the positional stability shallow pads cannot.
6.

Single Barbell Tube Loading

One centrally positioned barbell tube on the swing arm accepts Olympic plates, keeping the load balanced symmetrically across the hip extension arc and consistent with a plate-loaded setup. A rubber bumper at the base of the carriage cushions the swing arm at the bottom of the arc, protecting the frame and reducing impact sound.
7.

Front-Mounted Support Handles

Five grip points across two handle styles sit at the front of the machine for entry, exit, and positional bracing. They let you mount safely, position correctly against the leg pad, and brace without strain during the drive, which matters most for solo commercial use where no partner is available to assist entry on heavier plate loads.

Product Information
Product NameMulti Back Extension
ModelDPB410
SeriesDPB Plate Loaded Series
Product TypePlate-Loaded Multi Back Extension Machine
FunctionHip extension under knee-flexed conditions — glute and posterior chain development
Target MusclesGluteus Maximus (primary), Erector Spinae (secondary), Hamstrings (secondary — reduced by knee flexion)
GradeCommercial
Standard ColourBlack

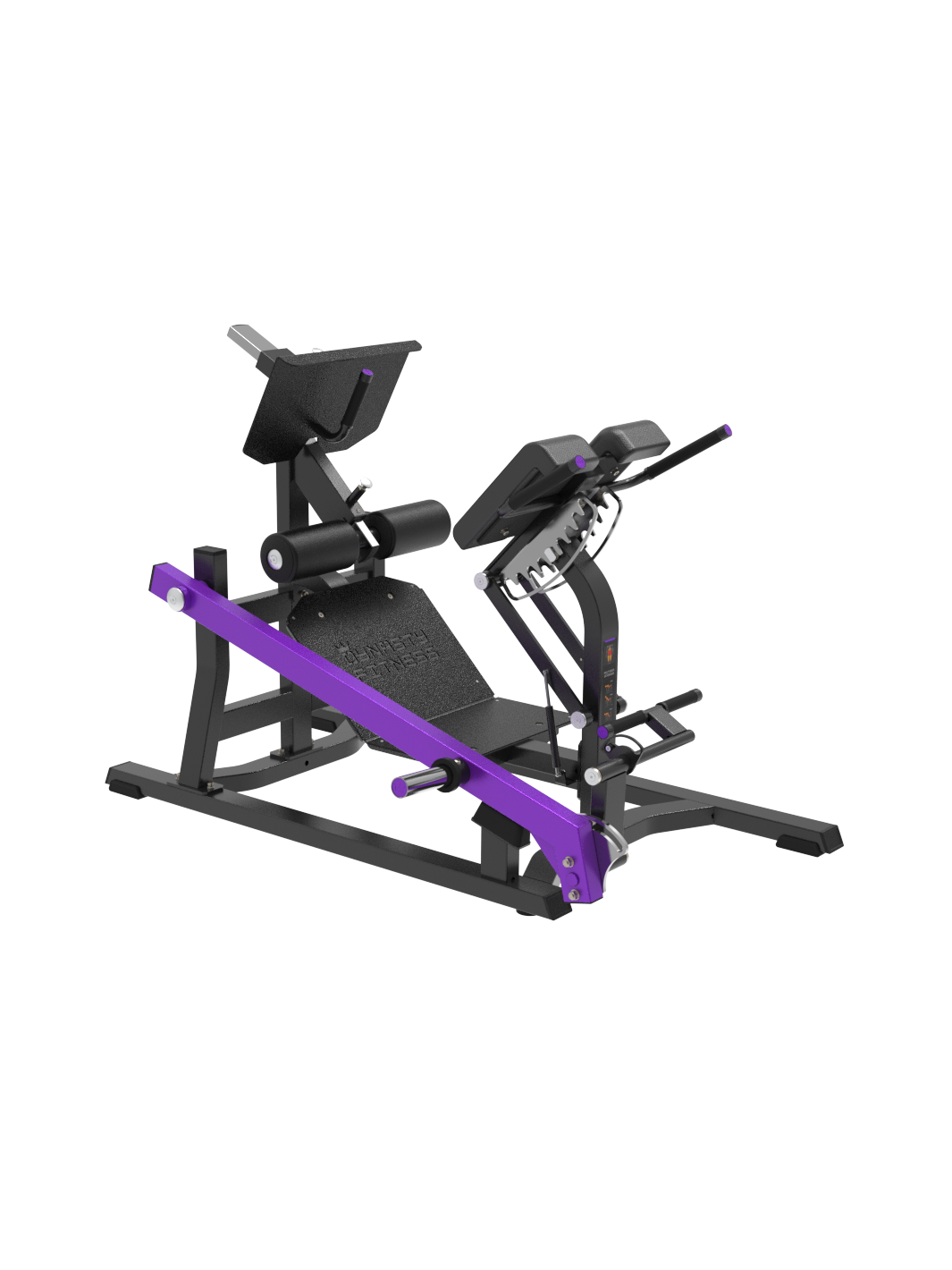

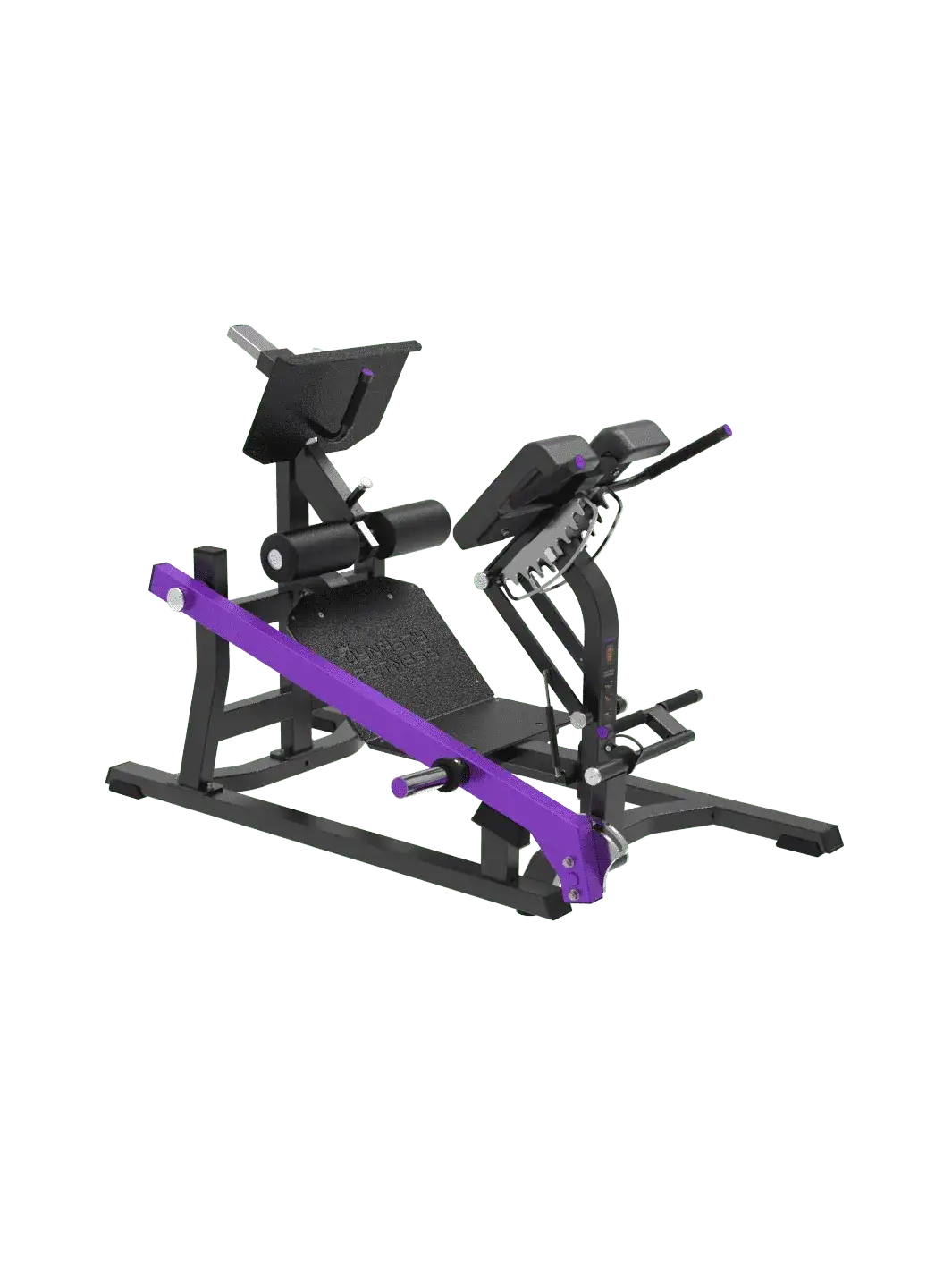

Custom Colour OptionPurple — pre-order only, contact Dynasty Fitness for lead time

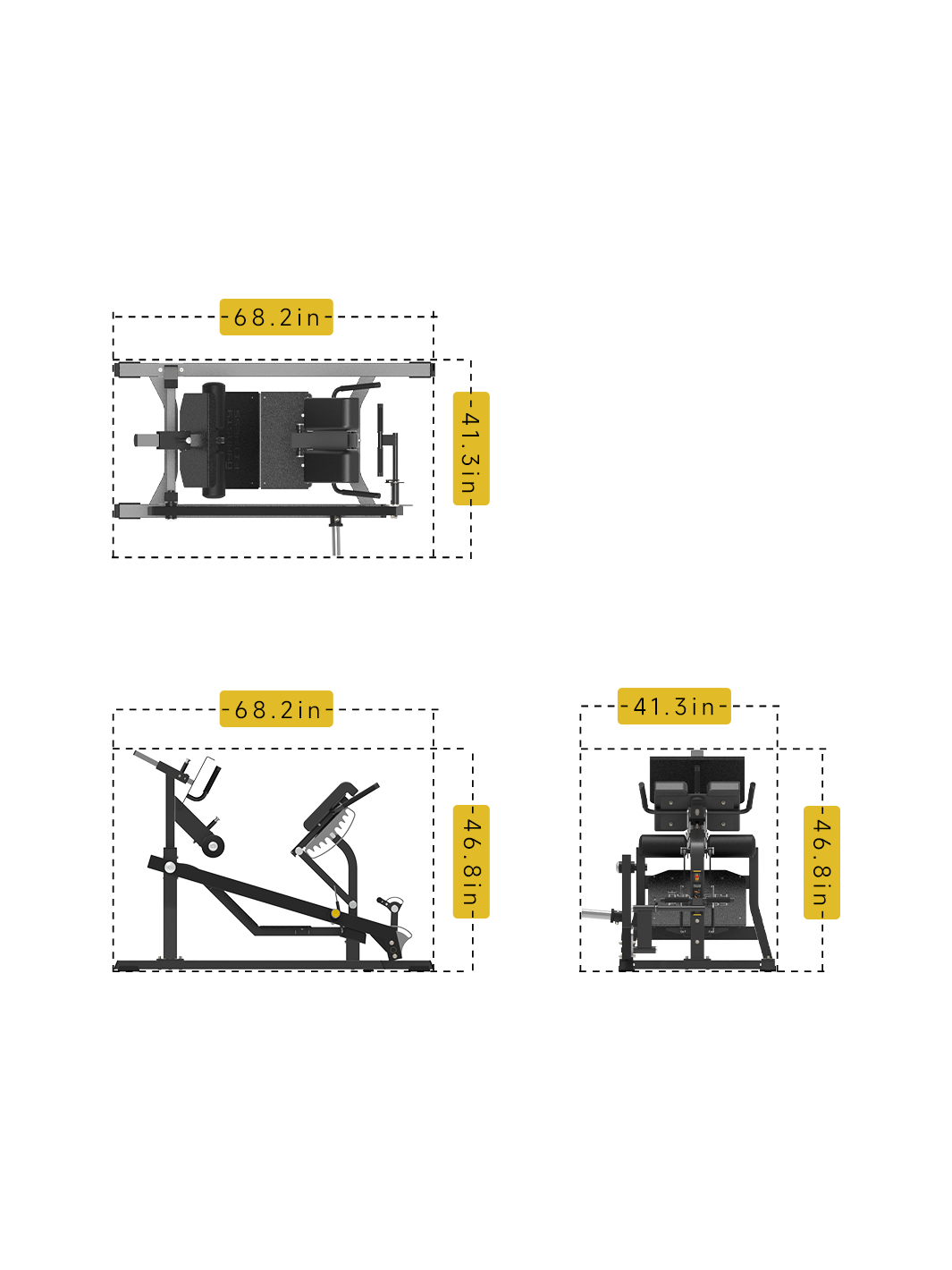

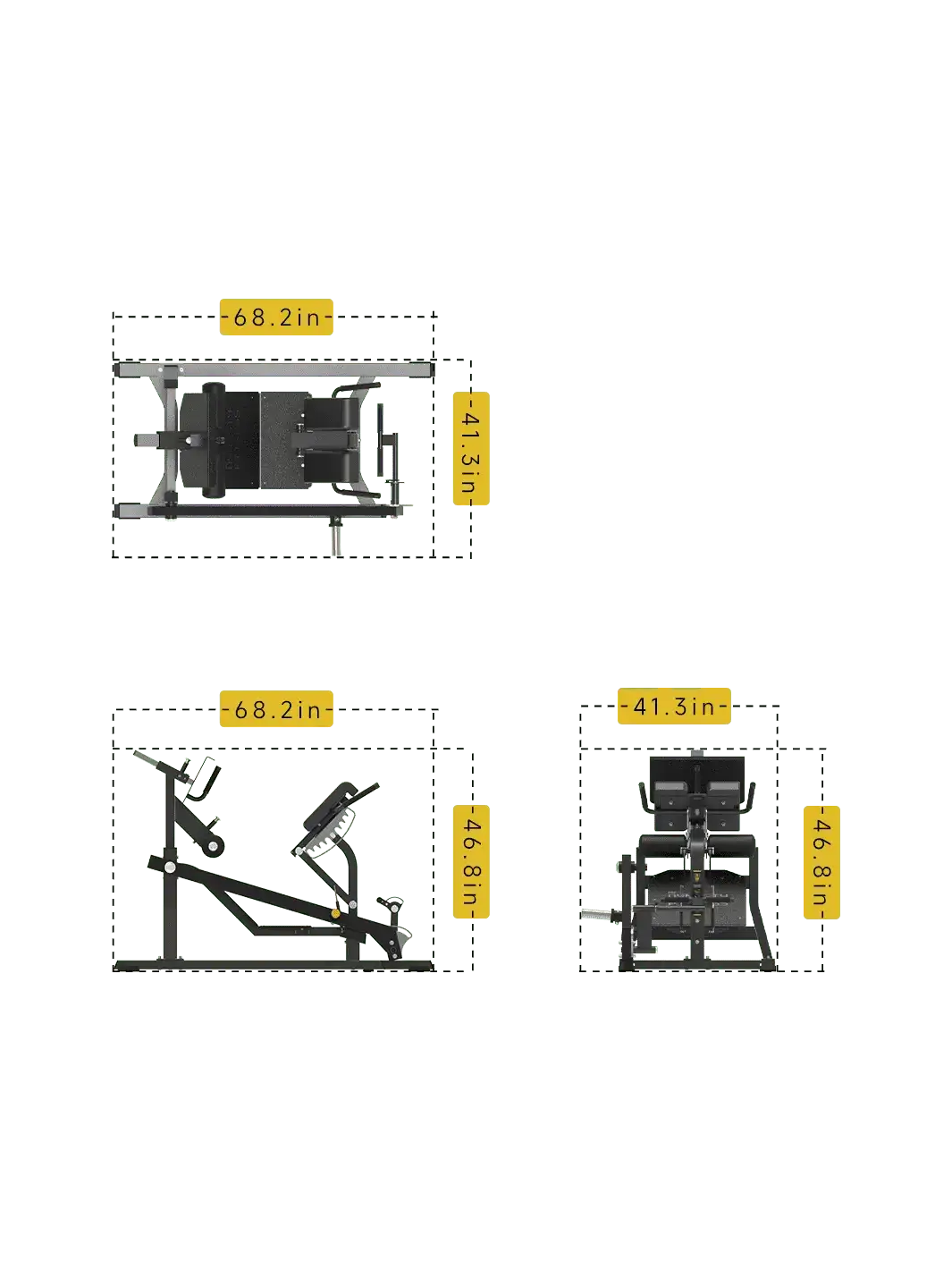

Dimensions and Weight
Length68.2 in (173.3 cm)
Width41.4 in (105.1 cm)
Height46.8 in (118.9 cm)
Net Weight302 lbs (137 kg)
Load and Resistance
Loading SystemPlate-loaded — Olympic plates via single central barbell tube
Barbell Tube1 x φ48×3.0×345mm
Swing Arm Bearings6006-2Z (x2), 6002-2Z (x8)
Adjustability
Leg Pad Positions9 positions — pneumatic, gas spring assisted (x2)
Rear Footplate Height5 levels — sets knee flexion angle
Footplate ModesFlat and angled — flanged anti-slip edges (528×272mm and 528×416mm covers)
Pads and Handles
Leg and Thigh Pads2 x 351×180×100mm
Front Support Handles5 grips — 3 x φ31×φ24×128mm, 2 x STφ31×φ24×210mm
Floor Mats3 x rubber mats, 120×33×90mm
Levelling Foot1 x adjustable, φ60×57mm
Indoor Use OnlyYes
