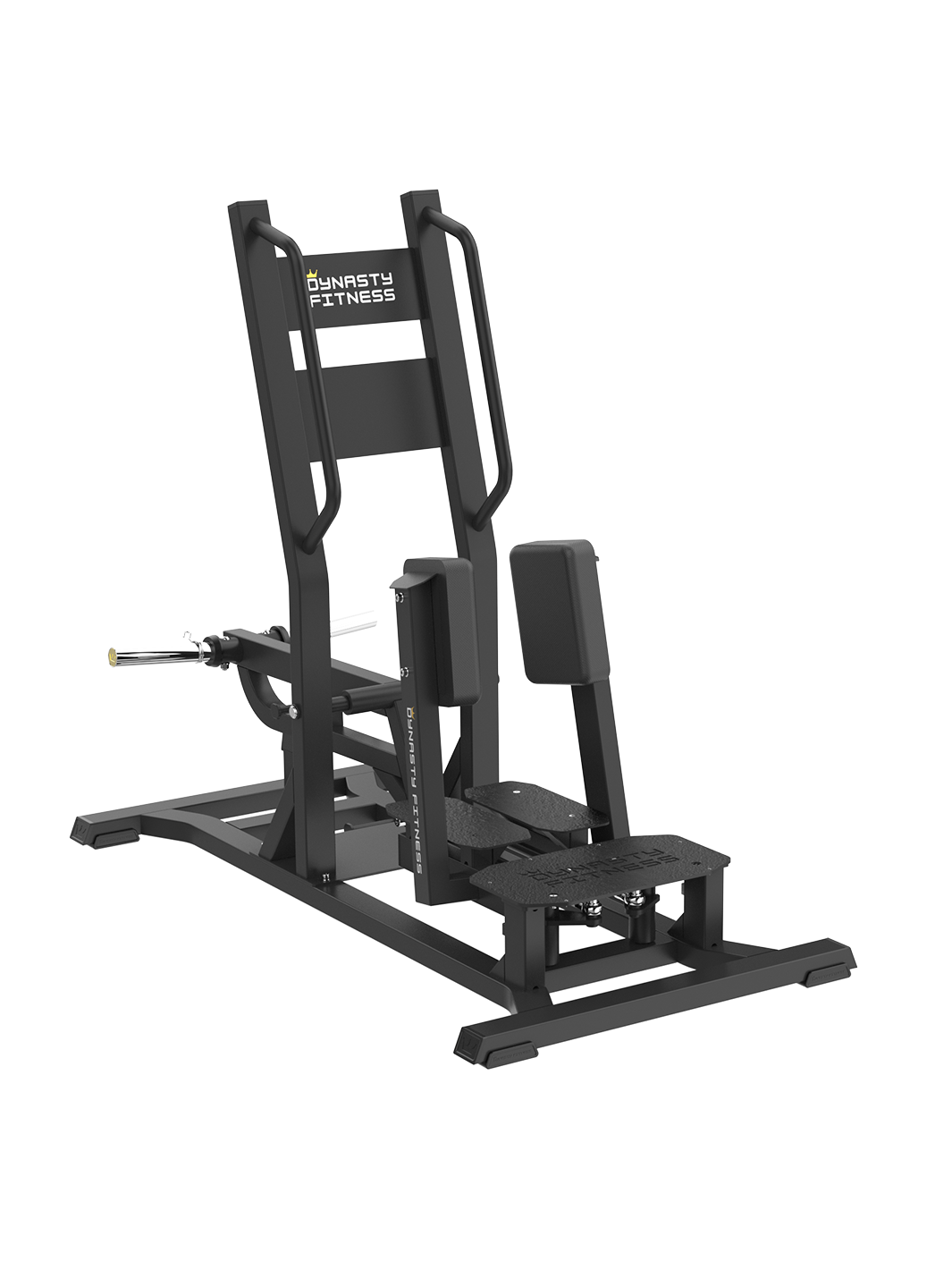

Dynasty Standing Abductor, black, with padded rests and footplates, angled view.

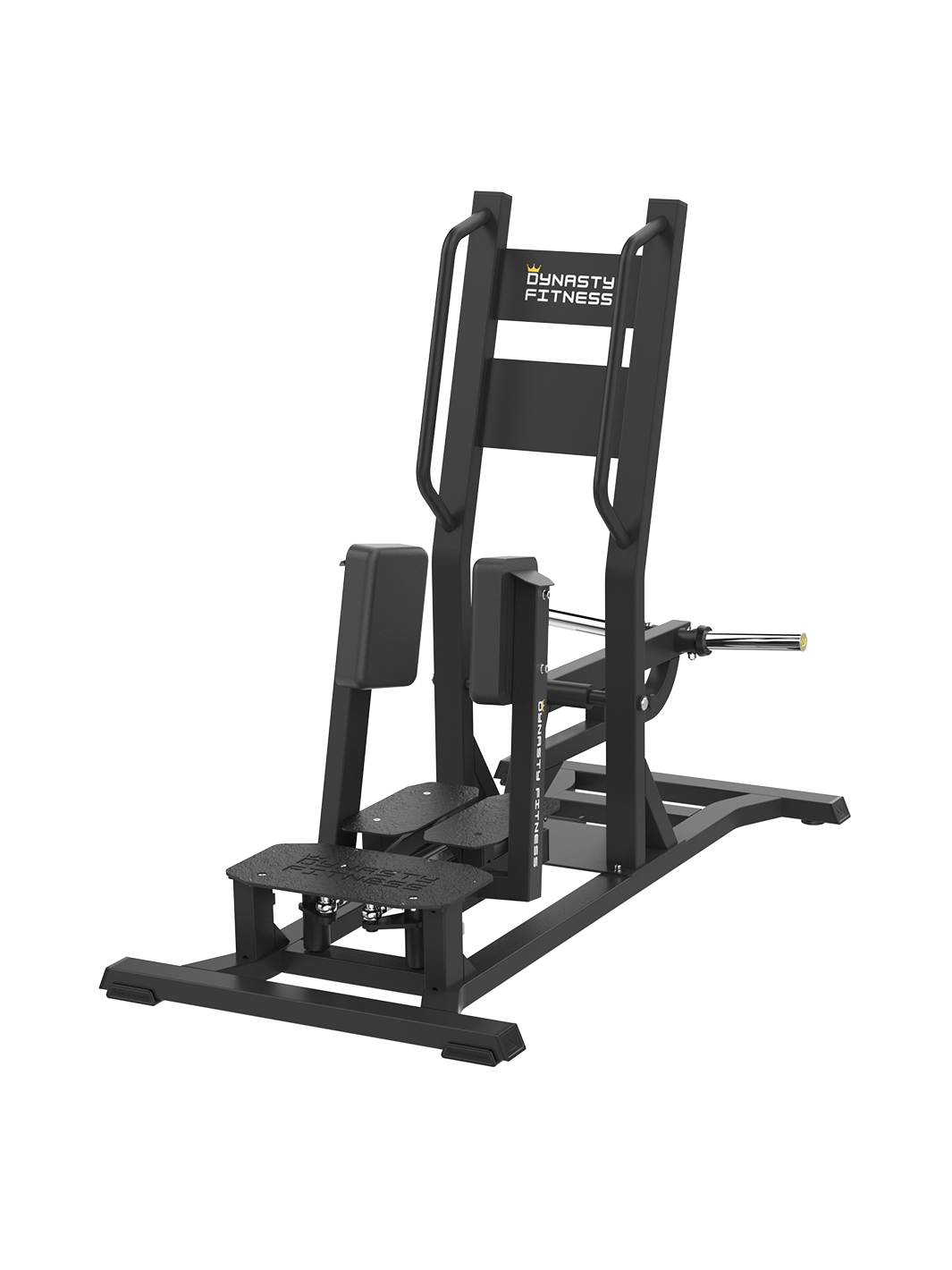

Dynasty Standing Abductor, black, padded rests, footplates, resistance bar, angled.

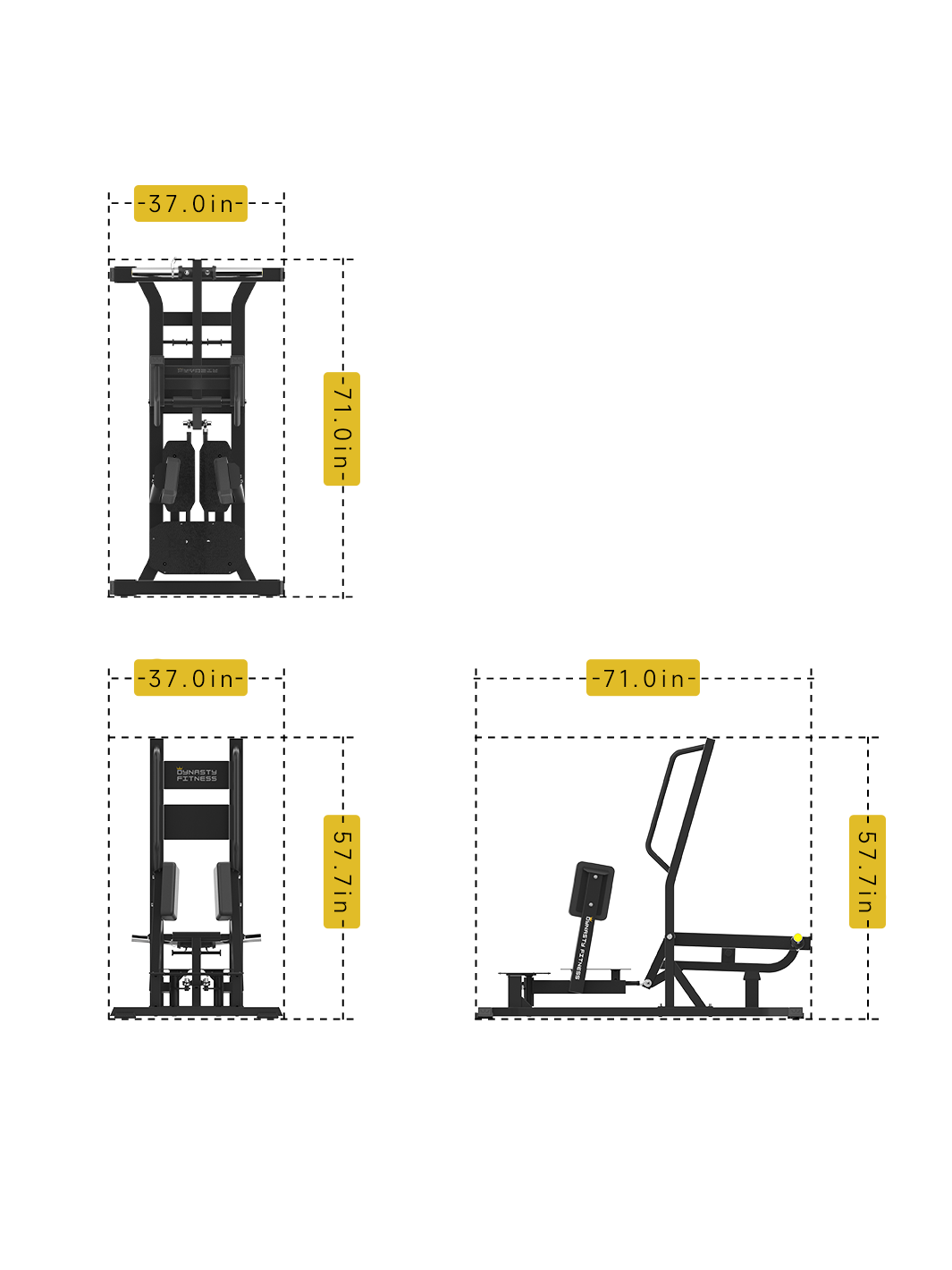

Dynasty Standing Abductor dimensions: top, front, and side views with labeled measurements.

Exercises and muscles targeted

Exercise	Muscles Targeted
Standing Hip Abduction	Gluteus Medius (primary — full abduction range), Gluteus Minimus (primary), Tensor Fasciae Latae (secondary), Gluteus Maximus — upper fibres (secondary), Core and Quadratus Lumborum (stabiliser — resists lateral trunk lean)
Standing Hip Abduction with Band Resistance	Gluteus Medius (peak contraction overload at full abduction — primary), Gluteus Minimus (primary), Tensor Fasciae Latae (secondary), Core (stabiliser under variable load)
Hip Abduction Isometric Hold	Gluteus Medius (sustained isometric contraction at peak abduction), Gluteus Minimus, Tensor Fasciae Latae, Quadratus Lumborum (stabiliser), Single-leg balance muscles — Tibialis Anterior, Peroneus Longus (support leg)
Hip Abduction Pulse (partial ROM at peak)	Gluteus Medius (time under tension in the upper range — primary), Gluteus Minimus, Tensor Fasciae Latae (sustained activation), Core (continuous stabiliser load)
Single-Leg Balance Hold (support leg)	Gluteus Medius (support leg — prevents Trendelenburg drop), Tibialis Anterior, Peroneus Longus, Gastrocnemius (balance stabilisers), Core (lateral stabilisers — Obliques, Quadratus Lumborum)

The gluteus medius and minimus are the muscles responsible for lateral hip stability, pelvic levelling during walking and running, and the outer glute shape visible from the front and side. Seated abduction trains these muscles, but standing abduction adds a balance and pelvic control demand that the seated version removes. On the DPB403, the support leg gluteus medius must work throughout the entire set to keep the pelvis level while the working leg drives outward, which means both legs are training simultaneously through different demands.

Who this machine is built for

Serious Home Gym Builders
You are building a complete glute programme and you know that hip thrust and squat movements do not adequately develop the gluteus medius, which is responsible for the upper outer glute shape and lateral hip stability. The DPB403 fills that gap in a 71.1" × 37.0" footprint using the same Olympic plates as the rest of your DPB setup. It is a single-function machine that does its one thing — standing hip abduction — more effectively than any cable attachment or resistance band alternative.

Bodybuilders and Physique Athletes
The gluteus medius contributes to the rounded, lifted upper glute appearance that is a judging criterion in physique categories from bikini through to classic. Plate-loaded standing abduction at progressive weights creates the overload required for hypertrophy in this muscle group, which light band work and seated machine abduction at conservative loads cannot consistently deliver. The band pegs on the DPB403 allow peak contraction intensity to be increased beyond what plates alone produce at the top of the abduction arc.

Commercial Gym Owners and Operators
Hip abduction machines are among the most consistently used lower body isolation stations in commercial facilities, particularly among members focused on glute development. The DPB403 offers the standing variation that complements or stands alongside the seated Hip Abductor/Adductor DRE8020, covering a different movement pattern and muscle activation emphasis from an upright posture. The two together give a facility complete hip abduction coverage across both sitting and standing positions.

Private Personal Training Studios
Standing abduction on the DPB403 trains balance, pelvic stability, and lateral glute strength simultaneously, which makes it practical for a wider range of training goals than pure aesthetic work. A trainer can use it for physique-focused glute development with bodybuilders, for hip stability work with athletes, and for functional lower body strengthening with general fitness clients — all on the same machine with different load selections.

University and College Athletic Departments
Gluteus medius strength is directly linked to knee tracking, hip stability during landing mechanics, and lateral change-of-direction ability. S&C programmes for court sports, field sports, and athletics address the gluteus medius specifically because weakness in this muscle is associated with valgus knee collapse and hip drop during cutting and landing movements. The DPB403 trains it in a standing position that transfers more directly to athletic movement patterns than seated alternatives.

Physical Therapists and Sports Medicine Practitioners
Gluteus medius strengthening is a standard component of knee rehabilitation protocols, IT band syndrome management, and hip instability programmes. The standing position of the DPB403 adds a functional balance and pelvic stability demand that seated abduction machines do not create, making it relevant for progression from early-stage seated isolation into more functional loading. Exercise selection and load progression should always follow the clinical programme for each patient's specific condition and recovery stage.

How to setup and use

Setting Up the DPB403 Standing Abductor

Load Olympic plates evenly onto both barbell tubes, keeping amounts equal on each side. Hip abductor muscles are typically not trained with heavy loads — start with one or two small plates per tube and prioritise controlled movement quality over load for the first sessions.
Stand with the support foot flat on the main anti-slip footplate (516×285×5mm) with the body facing forward and the torso upright. The support foot should feel stable and centred on the plate before beginning.
Position the working leg so the outer thigh rests against the inward-curved leg pad. The pad should contact the outer thigh with firm, even pressure. Confirm the pad is at the correct height — it should sit in the mid-thigh region, not near the knee or hip.
Grip both extended anti-slip handles firmly. The handles are a stability reference point throughout the set, not a pulling surface. Hold them to keep the torso centred without leaning away from the working leg.
Confirm the adjustable levelling foot is set so the frame sits flat before beginning. An unlevel frame causes the abduction arc to track off-axis, which shifts the resistance away from the intended glute targets.
For band resistance, attach resistance bands symmetrically through both front-mounted pegs and loop them to the working leg or lever before stepping into position.

Performing the Exercise

From the starting position with the outer thigh resting against the leg pad, drive the working leg outward and upward through the abduction arc, keeping the pad in continuous contact with the outer thigh throughout the movement.
Initiate the drive from the hip rather than by swinging the leg or leaning the torso away from the working side. If the torso leans during the drive, reduce the plate load and focus on hip-initiated movement before adding more weight.
Drive to peak abduction where the gluteus medius reaches its strongest contraction, holding for one to two seconds before beginning the return. If band resistance has been added, the peak tension arrives at the top of the arc, so the hold maximises the accommodating resistance stimulus.
Return the working leg to the starting position under control over at least two seconds, maintaining pad contact through the full eccentric return rather than allowing the leg to drop passively.
Complete all reps on one side before switching to the opposite leg, confirming the body position and pad contact are correct before beginning the second side. Track the load and rep count per side to identify any left-right strength difference across sessions.
For isometric hold sets, drive to peak abduction and hold the position under sustained load for three to five seconds per rep, focusing on keeping the pelvis level and the torso centred without grip compensation from the handles.

Owner's Manual

Access the complete assembly guide, parts list, and maintenance schedule below.

Download Owners Manual

Shipping & Delivery

All Dynasty Fitness equipment ships free across the 48 contiguous US states via freight carrier. If the product description says preorder, we'll send you an estimated delivery date via email.

Estimated delivery: 7–14 business days from order confirmation. You will receive a tracking number and a delivery window confirmation call before your shipment arrives. Deliveries are curbside standard, white glove delivery to room of choice is available at checkout.

Returns: Free within 30 days of delivery. Items must be in original condition and packaging. Refunds processed within 5 business days of return receipt.

Questions? Contact our team at:
📧Email: info@thedynastyfitness.com
📞Call: +1 (213)-584-0858

Need a buying guide?

Looking for one to one support before making final decision?
Feel free to contact us. Our expert support team would love to assist you.

Need Installation Help?

We have partnered with another company to help provide installation around the country. Please use the link below to see the price per machine for installation
See Installation Rates

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Save 11%

Standing Abductor DPB403

$1,599.00

$1,599.00 ~~$1,799.00~~ 11% off (Save$200.00 )

Commercial Grade
Pay With HFA/FSA

Free Shipping

Color: Black

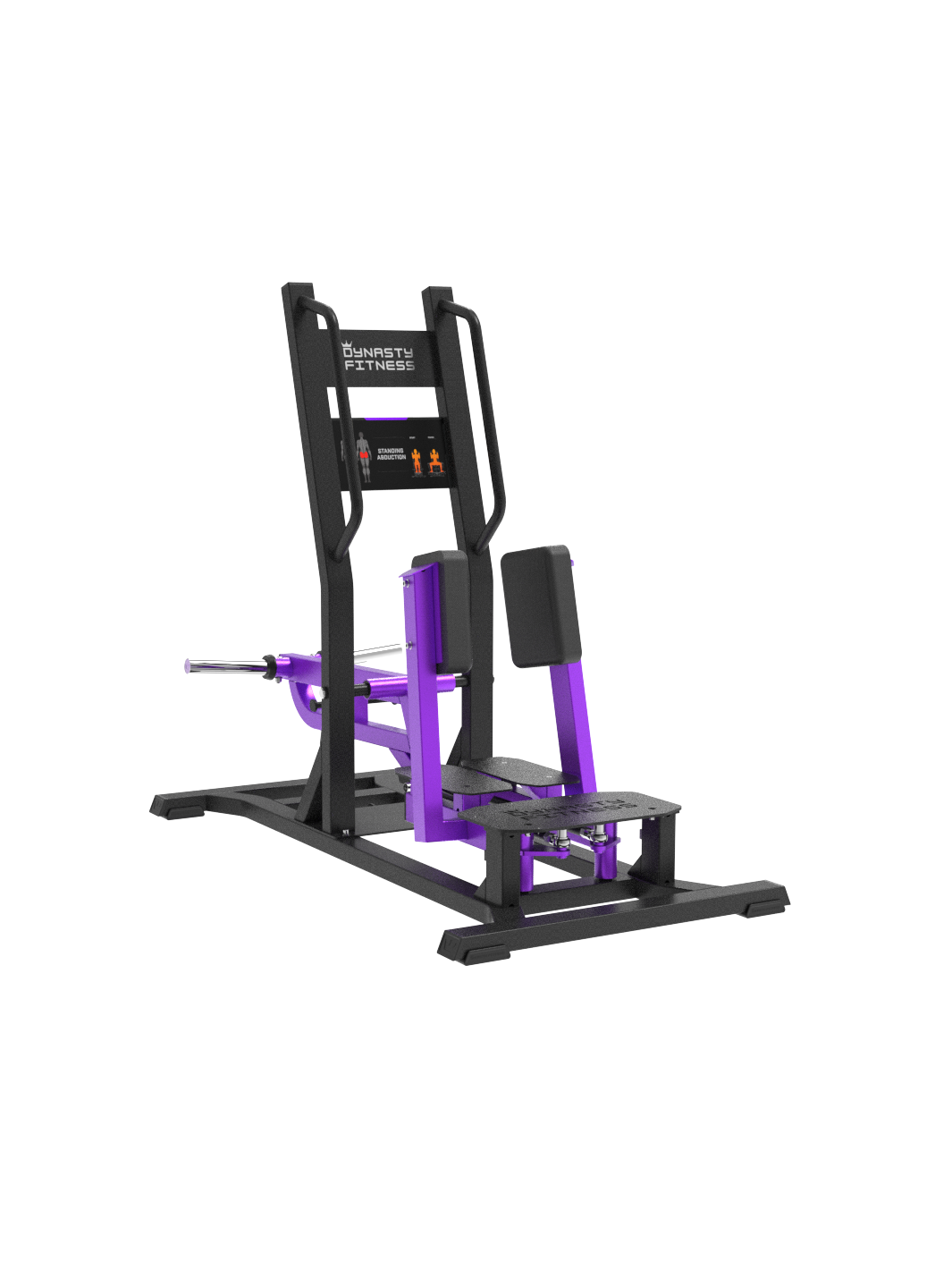

PLEASE NOTE, Purple color is pre-order only, contact us to get the wait time

The Dynasty Fitness DPB403 Standing Abductor is a plate-loaded hip abduction machine that trains the gluteus medius and gluteus minimus in a standing position, where the support leg must stabilise the pelvis throughout the set alongside the working leg driving outward, creating a simultaneous bilateral lateral glute demand that seated abduction machines remove by fixing the pelvis against the seat. A biomechanically optimised lever system on six 6005-2Z bearings and four joint bearings guides the working leg through a smooth, consistent abduction arc, and two inward-curved leg pads maintain continuous outer thigh contact through the full movement range rather than losing pad contact at peak abduction as flat-surface alternatives do. Dual barbell tubes accept Olympic plates for progressive loading, front-mounted band attachment pegs add accommodating resistance at peak abduction for peak contraction overload, and extended anti-slip handles keep the torso upright and stable so lateral trunk compensation does not take over from the glutes during heavy sets. Built at 71.1" × 37.0" × 59.8" at 282 lbs, available in standard black with purple as a pre-order custom option, the DPB403 is built for commercial gyms, glute-focused training studios, and serious home gym setups where progressive plate-loaded standing hip abduction for gluteus medius and minimus development is a lateral glute programming priority.

Plate-loaded standing hip abductor that trains the gluteus medius and minimus in a standing position, which activates the lateral glute and pelvic stabilisers more directly than seated abduction
Inward-curved leg pads maintain continuous contact with the thigh through the full abduction arc, preventing the leg from losing pad contact mid-rep and breaking the resistance transfer
Dual barbell tubes accept Olympic plates for progressive loading, and front-mounted band pegs add accommodating resistance at peak abduction for deeper peak contraction
Extended anti-slip handles provide stable upper body support throughout each rep so the effort goes entirely into the hip abduction rather than managing balance

Limited time offer

Get 20% off when you order 4 or more pieces of equipment!

Exercises and muscles targeted

Exercise	Muscles Targeted
Standing Hip Abduction	Gluteus Medius (primary — full abduction range), Gluteus Minimus (primary), Tensor Fasciae Latae (secondary), Gluteus Maximus — upper fibres (secondary), Core and Quadratus Lumborum (stabiliser — resists lateral trunk lean)
Standing Hip Abduction with Band Resistance	Gluteus Medius (peak contraction overload at full abduction — primary), Gluteus Minimus (primary), Tensor Fasciae Latae (secondary), Core (stabiliser under variable load)
Hip Abduction Isometric Hold	Gluteus Medius (sustained isometric contraction at peak abduction), Gluteus Minimus, Tensor Fasciae Latae, Quadratus Lumborum (stabiliser), Single-leg balance muscles — Tibialis Anterior, Peroneus Longus (support leg)
Hip Abduction Pulse (partial ROM at peak)	Gluteus Medius (time under tension in the upper range — primary), Gluteus Minimus, Tensor Fasciae Latae (sustained activation), Core (continuous stabiliser load)
Single-Leg Balance Hold (support leg)	Gluteus Medius (support leg — prevents Trendelenburg drop), Tibialis Anterior, Peroneus Longus, Gastrocnemius (balance stabilisers), Core (lateral stabilisers — Obliques, Quadratus Lumborum)

Who this machine is built for

How to setup and use

Setting Up the DPB403 Standing Abductor

Load Olympic plates evenly onto both barbell tubes, keeping amounts equal on each side. Hip abductor muscles are typically not trained with heavy loads — start with one or two small plates per tube and prioritise controlled movement quality over load for the first sessions.
Stand with the support foot flat on the main anti-slip footplate (516×285×5mm) with the body facing forward and the torso upright. The support foot should feel stable and centred on the plate before beginning.
Position the working leg so the outer thigh rests against the inward-curved leg pad. The pad should contact the outer thigh with firm, even pressure. Confirm the pad is at the correct height — it should sit in the mid-thigh region, not near the knee or hip.
Grip both extended anti-slip handles firmly. The handles are a stability reference point throughout the set, not a pulling surface. Hold them to keep the torso centred without leaning away from the working leg.
Confirm the adjustable levelling foot is set so the frame sits flat before beginning. An unlevel frame causes the abduction arc to track off-axis, which shifts the resistance away from the intended glute targets.
For band resistance, attach resistance bands symmetrically through both front-mounted pegs and loop them to the working leg or lever before stepping into position.

Performing the Exercise

From the starting position with the outer thigh resting against the leg pad, drive the working leg outward and upward through the abduction arc, keeping the pad in continuous contact with the outer thigh throughout the movement.
Initiate the drive from the hip rather than by swinging the leg or leaning the torso away from the working side. If the torso leans during the drive, reduce the plate load and focus on hip-initiated movement before adding more weight.
Drive to peak abduction where the gluteus medius reaches its strongest contraction, holding for one to two seconds before beginning the return. If band resistance has been added, the peak tension arrives at the top of the arc, so the hold maximises the accommodating resistance stimulus.
Return the working leg to the starting position under control over at least two seconds, maintaining pad contact through the full eccentric return rather than allowing the leg to drop passively.
Complete all reps on one side before switching to the opposite leg, confirming the body position and pad contact are correct before beginning the second side. Track the load and rep count per side to identify any left-right strength difference across sessions.
For isometric hold sets, drive to peak abduction and hold the position under sustained load for three to five seconds per rep, focusing on keeping the pelvis level and the torso centred without grip compensation from the handles.

Owner's Manual

Access the complete assembly guide, parts list, and maintenance schedule below.

Download Owners Manual

Shipping & Delivery

All Dynasty Fitness equipment ships free across the 48 contiguous US states via freight carrier. If the product description says preorder, we'll send you an estimated delivery date via email.

Returns: Free within 30 days of delivery. Items must be in original condition and packaging. Refunds processed within 5 business days of return receipt.

Questions? Contact our team at:
📧Email: info@thedynastyfitness.com
📞Call: +1 (213)-584-0858

Need a buying guide?

Looking for one to one support before making final decision?
Feel free to contact us. Our expert support team would love to assist you.

Need Installation Help?

We have partnered with another company to help provide installation around the country. Please use the link below to see the price per machine for installation
See Installation Rates

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Standing Abductor DPB403

$1,599.00

$1,599.00 ~~$1,799.00~~ 11% off (Save$200.00 )

Key Features

Biomechanically Optimized Standing Abduction Lever System

The lever mechanism uses six 6005-2Z bearings and four joint bearings (M16×φ16) to guide the working leg through a smooth abduction arc that follows the natural path of hip abduction rather than a linear or cable-driven path. The bearing arrangement allows the lever to pivot through the movement with minimal friction at any point in the arc, which means resistance stays consistent through the full range rather than feeling stiff or loose at different positions. This mechanical quality matters at heavier plate loads where any unevenness in the resistance becomes disruptive to the movement pattern.

Inward-Curved Leg Pads

Two leg pads (300×210×70mm each) are shaped with an inward curve that follows the contour of the outer thigh. A flat pad makes contact at a single line along the leg and loses contact as the leg moves through the abduction arc, which reduces resistance transfer and allows the leg to compensate using momentum at the outer range. The curved surface maintains continuous contact from the start to the peak of the abduction, keeping the resistance line consistent and preventing the joint from swinging rather than driving. This is the feature that makes the DPB403 a genuine isolation machine rather than a guided swing.

Dual Plate Loading Tubes

Two barbell tubes (φ48×3.0×345mm each) are positioned on the weight frame for Olympic plate loading. The dual tube layout distributes plate weight symmetrically, which keeps the lever balanced through the abduction arc rather than creating a lateral pull on the pivot point. Both tubes accept standard Olympic plates and their combined capacity provides meaningful resistance headroom for progressive loading well beyond what selectorized or band-based abduction options can offer.

Front-Mounted Resistance Band Pegs

Two elastic rope rod pegs are integrated into the front frame to allow resistance bands to be attached and looped into the movement. Plate resistance through the abduction arc is highest at the bottom of the movement where the lever arm is longest and decreases as the leg reaches peak abduction. Adding a band through the pegs creates accommodating resistance that increases at the top of the arc where the gluteus medius is most contracted, filling the tension gap that plates alone leave at the peak. This technique is used in advanced glute programming to maximise the peak contraction stimulus per set.

Main Anti-Slip Standing Footplate

The main standing footplate (516×285×5mm) provides a stable base for the support leg throughout the set. The textured surface prevents the support foot from sliding during the abduction drive, which is the primary cause of balance disruption on hip abduction machines. A stable support foot is what allows the gluteus medius of the working leg to do its job without the upper body compensating laterally to maintain balance. The footplate dimensions accommodate different foot sizes and stance positions without the support foot approaching the plate edge.

Extended Anti-Slip Handles

The handle assembly provides support at the armrest bracket, giving the user two stable grip points throughout each set. The handles allow the user to maintain an upright, centred torso position during the abduction drive without leaning away from the working leg — a compensation pattern that shifts work away from the gluteus medius and onto the lateral trunk muscles. The grip surface is textured to prevent hand slip during heavier loaded sets where the support demand increases.

Product Information
Product Name	Standing Abductor
Model	DPB403
Series	DPB Plate Loaded Series
Product Type	Plate-Loaded Standing Hip Abductor Machine
Function	Standing unilateral hip abduction — lateral glute and pelvic stabiliser training
Target Muscles	Gluteus Medius, Gluteus Minimus (primary), Tensor Fasciae Latae, upper Gluteus Maximus fibres (secondary)
Grade	Commercial
Standard Colour	Black
Custom Colour Option	Purple — pre-order only, contact Dynasty Fitness for lead time
Dimensions and Weight
Length	71.1 in (180.5 cm)
Width	37.0 in (93.9 cm)
Height	59.8 in (151.8 cm)
Net Weight	282 lbs (128 kg)
Load and Resistance
Loading System	Plate-loaded — Olympic plates, dual barbell tubes
Barbell Tubes	2 x φ48×3.0×345mm
Band Attachment Pegs	2 — front-mounted, peak-phase progressive resistance
Pads, Footplates and Handles
Leg Pads	2 x 300×210×70mm — inward-curved, high-density
Main Standing Footplate	516×285×5mm — anti-slip textured surface
Secondary Footplates	2 x 382×175×5mm
Handles	Extended anti-slip — armrest bracket and support grip
Lever Bearings	6005-2Z (x6), Joint bearings M16×φ16 (x2), M16(L)×φ16 (x2)
Floor Mats	3 x rubber mats, 120×33×90mm
Levelling Foot	1 x adjustable, φ60×57mm
Indoor Use Only	Yes

Q: How does standing abduction differ from seated abduction for glute development?
A: In seated abduction the pelvis is fixed by the seat, which removes the pelvic stability demand and isolates the hip abductor muscles in a shortened position for most of the range. In standing abduction on the DPB403, the pelvis is free and must be stabilised by the gluteus medius of the support leg throughout the entire set while the working leg drives outward. Both legs are therefore training simultaneously through different demands. The standing position also trains the muscle through a longer effective range, which is generally more productive for hypertrophy than the same exercise performed seated. The two positions are complementary rather than interchangeable.

Q: How do I position myself correctly on the machine?
A: Stand with your support foot flat on the main footplate and your working leg's outer thigh resting against the inward-curved leg pad. Your torso should stay upright throughout — if you are leaning away from the working leg during the drive, you are compensating with the lateral trunk rather than driving purely from the hip. Hold the handles firmly and initiate the movement from the hip, not by swinging the leg. The pad should maintain contact with the outer thigh through the entire arc. If it loses contact at the top of the movement, reduce the load and focus on keeping the leg controlled against the pad through the full range.

Q: What does adding resistance bands to the pegs change?
A: Plate resistance at the start of the abduction arc is relatively high because the lever arm between the load and the pivot is longest at the bottom. As the leg reaches peak abduction, the lever shortens and the effective resistance drops, which means the gluteus medius is least challenged at the exact point where it is most contracted. Attaching a band to the front pegs adds tension that increases as the leg moves outward, which raises the resistance at peak abduction. This keeps the muscle under meaningful load at the moment of peak contraction rather than allowing the set to feel easier right where the stimulus should be highest.

Q: How much plate weight should I start with?
A: Because hip abductor muscles are not typically trained with heavy loads, most users find that even modest plate loading — one or two 10 lb plates per tube — creates a challenging stimulus initially. The gluteus medius and minimus are endurance-oriented muscles in most people due to their postural role, which means higher rep ranges with moderate loads often produce better results than heavy low-rep sets. Start lighter than you expect, focus on controlling the leg pad contact through the full range, and increase load only when you can perform clean, controlled reps without lateral trunk compensation.

Q: Does the machine need to be bolted to the floor?
A: No anchoring is required. Three rubber floor mats are included and position under the frame contact points to prevent the machine from sliding on smooth flooring. At 282 lbs before plates are loaded the machine stays grounded under normal single-leg abduction loading. The adjustable levelling foot allows the frame to be set level on uneven gym flooring, which keeps the lever arc tracking correctly through the movement.

Q: What Dynasty Fitness machines pair with the DPB403 for a complete glute training area?
A: The DPB403 covers lateral glute work through standing hip abduction. For a complete glute programme, pairing it with the Hip Abductor/Adductor DRE8020 adds the seated abduction and adduction complement in both directions from a single selectorized machine. The Hip Thruster DPB401 or Hip Thruster DSH031 covers horizontal hip extension for the gluteus maximus. The Rear Kick DSH007 or Standing Rear Kick DRE8032 adds isolated glute kickback work. Together these four stations cover hip extension, hip abduction in standing and seated positions, and adduction, which represents the full range of movement patterns needed for complete lateral and posterior glute development.
