Exercises and muscles targeted

Exercise	Muscles Targeted
Pulldown - Wide Overhand (bilateral)	Latissimus Dorsi - Upper and Outer Fibres (lat width and sweep, primary), Teres Major (primary), Posterior Deltoid (secondary), Rhomboids (secondary), Biceps Brachii (secondary)
Pulldown - Narrow Underhand (bilateral)	Latissimus Dorsi - Lower Fibres (lower lat thickness, primary), Biceps Brachii (significantly increased in supinated position, secondary), Teres Major, Rhomboids (secondary)
Pulldown - Neutral Grip (bilateral)	Latissimus Dorsi (balanced engagement across upper and lower fibres, primary), Teres Major (primary), Biceps Brachii (secondary), Brachialis (secondary), Middle Trapezius (secondary)
Pulldown - Unilateral Single Arm	Latissimus Dorsi (unilateral - one lat working to failure independently), Teres Major, Serratus Anterior (increased single-arm engagement), Core and Obliques (anti-rotation stabiliser)
Pulldown - Slow Eccentric	Latissimus Dorsi (eccentric stretch through full overhead arm extension, maximum hypertrophy stimulus), Teres Major (eccentric), Biceps Brachii (eccentric), Serratus Anterior (stabiliser through return)

The universal adaptive handles on the DSH029 allow the grip to rotate naturally through overhand to underhand across a single set or between sets, giving access to meaningfully different lat fibre emphases without changing attachments. Wide overhand grip recruits the upper and outer lat fibres for sweep development. Narrow underhand grip targets the lower lat fibres and increases bicep contribution for thickness and arm development within the same machine session. Neutral grip provides a balanced stimulus across the full lat with reduced wrist strain compared to fixed overhand alternatives.

Who this machine is built for

Serious Home Gym Builders
The DSH029 covers overhand, neutral, and underhand vertical pulling from a single plate-loaded station using the same Olympic plates as the rest of the setup. At 65.7" × 52.6" it occupies a manageable footprint for a machine that delivers the grip variety that would otherwise require a cable machine with multiple attachment changes across a back training session.

Bodybuilders and Physique Athletes
Lat width from overhand wide grip and lat thickness from underhand narrow grip are both developed from the DSH029's universal handles without swapping attachments mid-session. The independent bilateral arm design ensures both lats develop equally across the training cycle. The slow eccentric stretch from the fully extended overhead position on each rep produces the lengthened-position lat stimulus that contributes most directly to lat mass development, and the eight-bearing arm system keeps the travel smooth at any plate load through the full arc.

Powerlifters and Strength Athletes
Lat strength through vertical pulling supports the scapular stability and shoulder control demands of the competition deadlift and bench press. The DSH029 builds this at progressive plate loads in an ISO-lateral format, with the underhand narrow grip option providing a bicep-reinforced pull that adds arm pulling strength development alongside lat work within the same session.

Commercial Gym Owners and Operators
A universal pulldown machine covers the full range of vertical pulling styles that members want from overhand wide through to underhand narrow from one machine position. This replaces the need for multiple lat pulldown attachments, reducing the maintenance demand of cable attachment systems and keeping the vertical pulling station clean and immediately usable. The 661 lb bilateral capacity and eight-bearing arm system communicate premium quality to members who train back seriously.

Private Personal Training Studios
The pneumatic seat and three-position leg pad adjust between clients of different heights quickly, and the universal handle rotation removes grip angle setup from the trainer's pre-set checklist. The chest pad and front support allow the trainer to run unilateral lat isolation sets where each side works independently, which is useful for identifying and programming around left-right lat strength asymmetries during back training sessions.

University and College Athletic Departments
ISO-lateral vertical pulling addresses the left-right pulling asymmetries that develop in sport athletes through throwing, swimming, and racket sport mechanics. The DSH029 provides a plate-loaded format for this at loads appropriate for collegiate athletes, with the universal handle rotation accommodating different grip preferences across a diverse athlete roster without requiring multiple pull-up or pulldown setups.

How to setup and use

Setting Up the DSH029 Universal Pulldown

Load Olympic plates evenly onto all four barbell bars, keeping amounts equal across left and right sides for balanced bilateral load through the independent arm frames.
Sit facing the machine and use the pneumatic seat lever to adjust height until both arms can extend fully overhead to the handles without the shoulder rising or the torso leaning backward.
Slide the leg pad (regulating rack) to one of three positions using the elastic latch until the pad rests firmly across the tops of both thighs, anchoring the lower body through the pulling set.
Grip both universal adaptive handles in the orientation that suits the target of the set: overhand for wide lat width emphasis, underhand for lower lat and bicep emphasis, or neutral for a balanced pull. The handles will rotate to follow the wrist naturally once the pull begins.
For unilateral single-arm training, place the non-working hand on the front chest pad support, grip one handle, and proceed with strict single-arm reps while keeping the chest against the pad.
Load with Dynasty Fitness Urethane Grip Plates across all four barbell bars for a clean, balanced bilateral setup.

Performing the Exercise

From the seated starting position with arms extended overhead gripping the handles, initiate the pulldown by driving the elbows downward and toward the hips while pulling the handles toward the upper chest.
Allow the universal handles to rotate naturally during the pull rather than fighting the rotation — the adaptive mechanism is designed to follow the forearm's natural position through the full arc.
Pull to peak lat contraction where the elbows reach the sides of the torso, holding for one to two seconds before beginning the return.
Return both handles to the fully overhead extended position under control over at least two to three seconds, allowing the lat to stretch completely at the top before each rep.
Keep the chest against the chest pad throughout the pull to prevent the torso from rocking backward, which would convert the pulldown into a partial rowing movement.

Owner's Manual

Access the complete assembly guide, parts list, and maintenance schedule below.

Download Owners Manual

Shipping & Delivery

All Dynasty Fitness equipment ships free across the 48 contiguous US states via freight carrier. If the product description says preorder, we'll send you an estimated delivery date via email.

Estimated delivery: 7–14 business days from order confirmation. You will receive a tracking number and a delivery window confirmation call before your shipment arrives. Deliveries are curbside standard, white glove delivery to room of choice is available at checkout.

Returns: Free within 30 days of delivery. Items must be in original condition and packaging. Refunds processed within 5 business days of return receipt.

Questions? Contact our team at:
📧Email: info@thedynastyfitness.com
📞Call: +1 (213)-584-0858

Need a buying guide?

Looking for one to one support before making final decision?
Feel free to contact us. Our expert support team would love to assist you.

Need Installation Help?

We have partnered with another company to help provide installation around the country. Please use the link below to see the price per machine for installation
See Installation Rates

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Save 10%

Universal Pulldown DSH029

$2,339.00

$2,339.00 ~~$2,599.00~~ 10% off (Save$260.00 )

Commercial Grade
Pay With HFA/FSA

Free Shipping

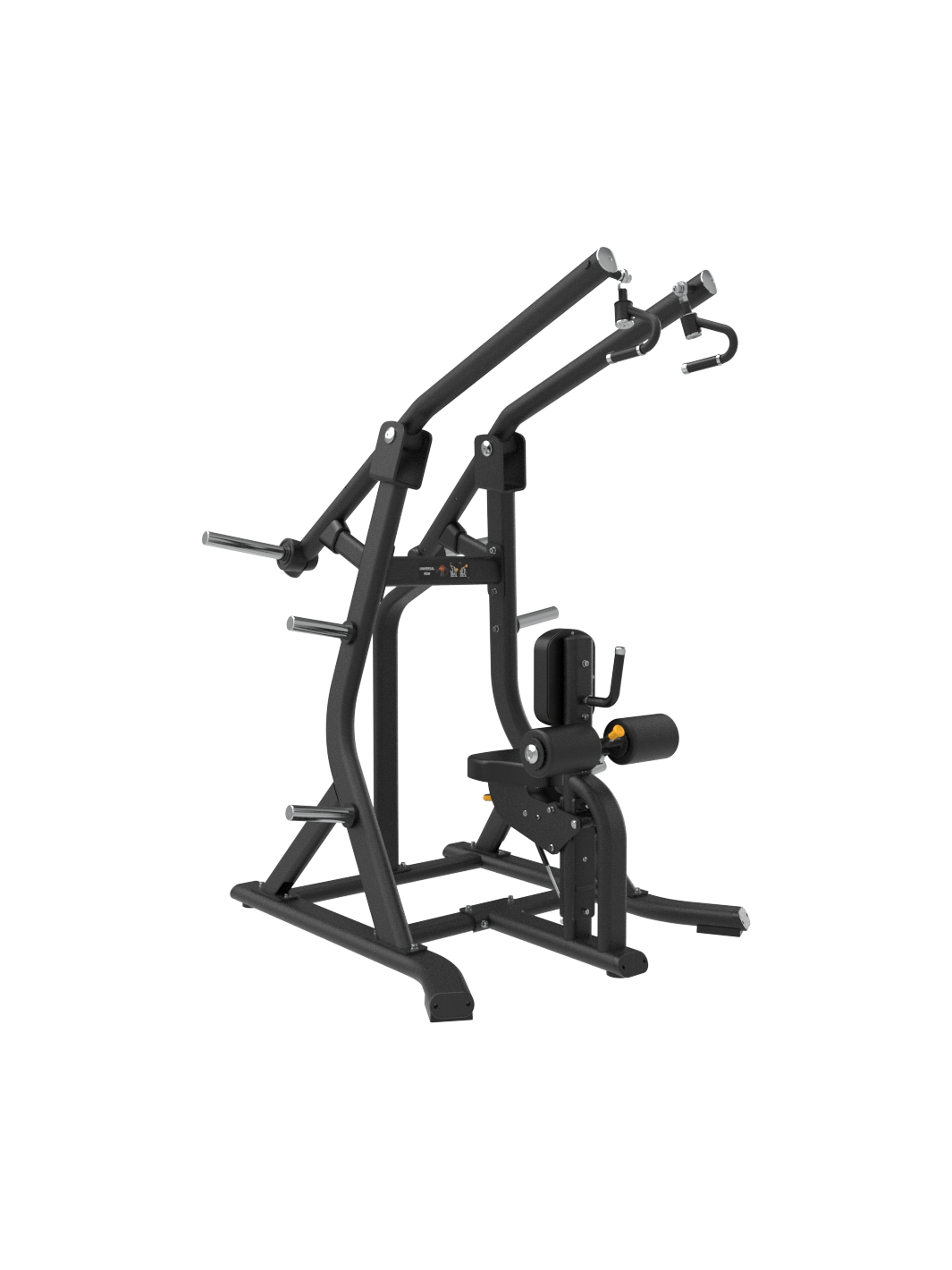

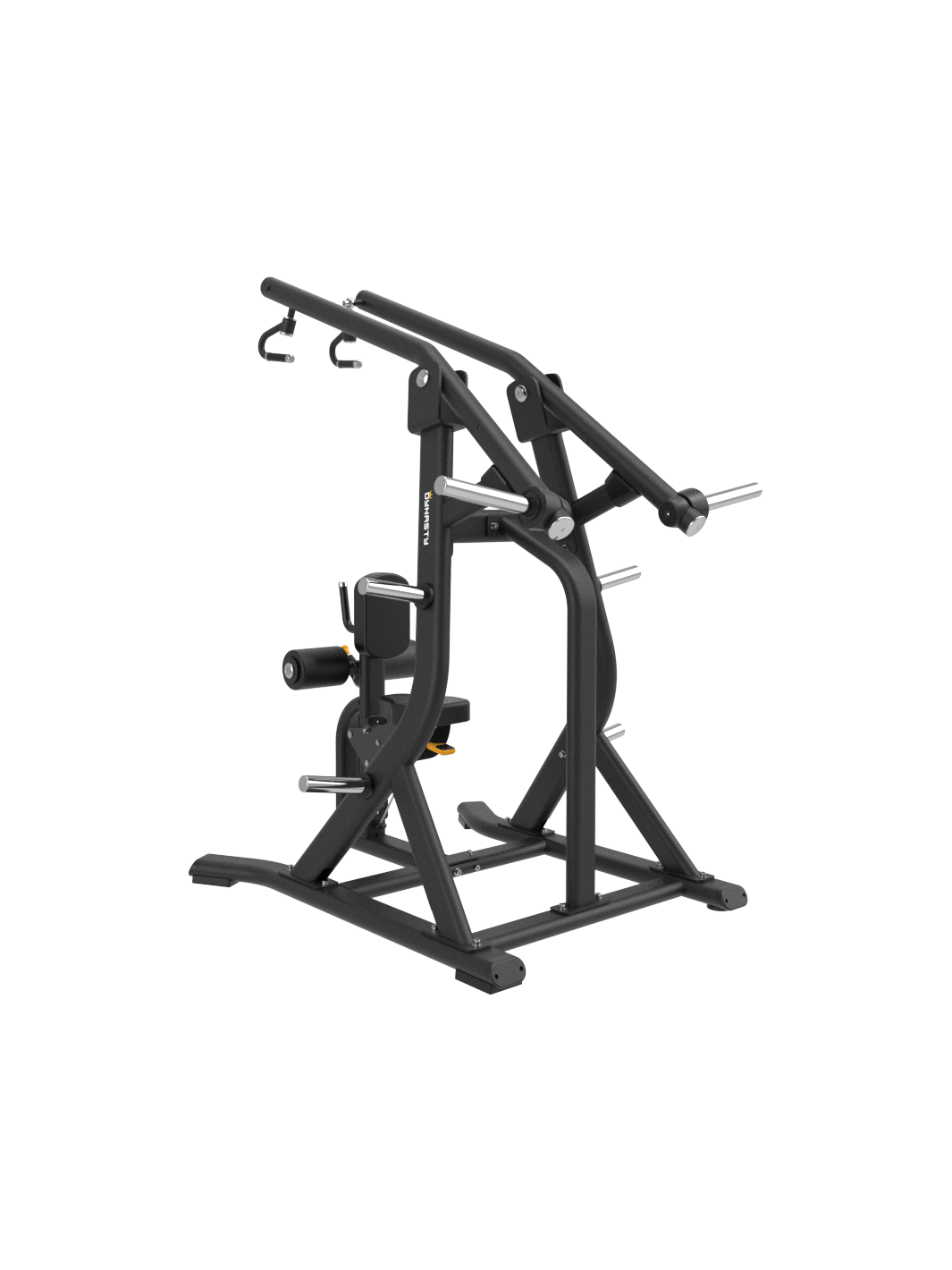

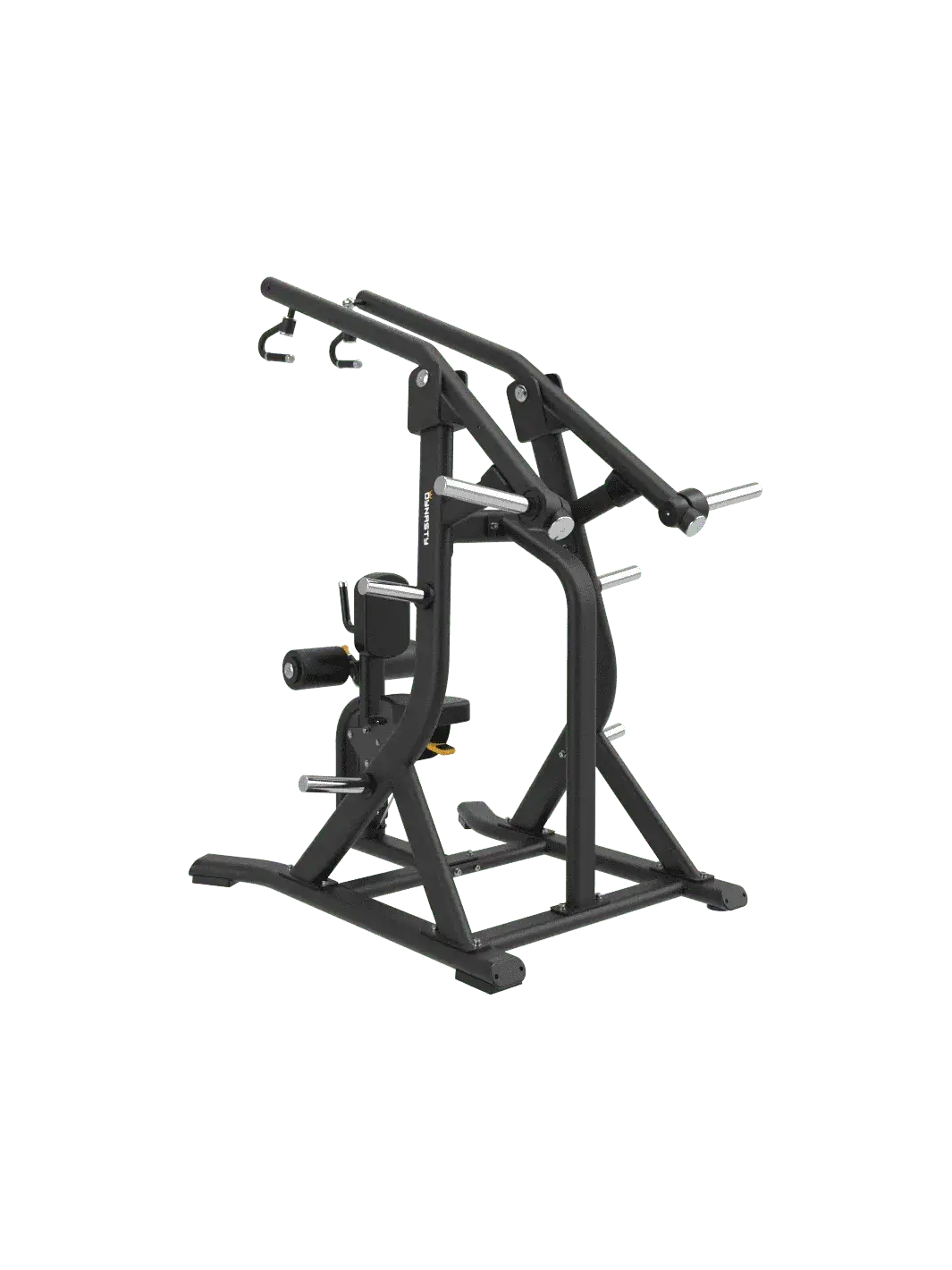

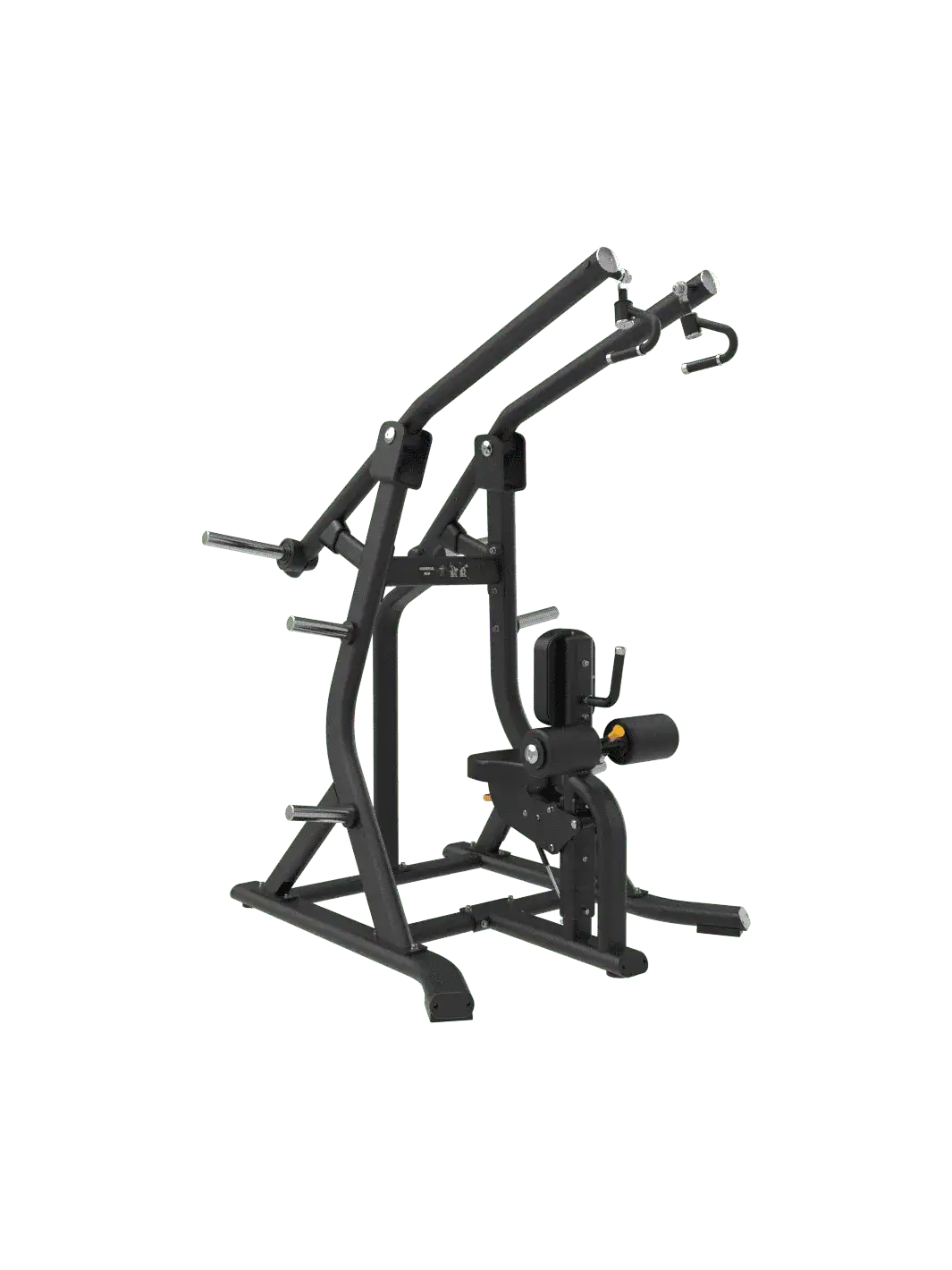

The Dynasty Fitness DSH029 Universal Pulldown is a plate-loaded ISO-lateral lat pulldown machine with universal adaptive handles that rotate freely through the full range from overhand to underhand during the pull, allowing the wrist to settle into its natural position at every point in the arc without the user managing grip angle manually. Independent bilateral arm force racks on eight bearing contacts — including four 6206 bearings, two 6004 bearings, two tapered roller bearings, and two knuckle bearings — train each lat independently without compensation, and the machine supports both bilateral ISO-lateral and unilateral single-arm pulldown training via the chest pad and front support system. A three-position adjustable leg pad with elastic latch anchors users of different heights through maximum-effort sets, and a pneumatic infinite seat positions each user at the precise shoulder-to-pivot alignment needed for an effective vertical pull. Built from PT60×120×2.5mm steel with a 661 lb bilateral capacity in matte black, the DSH029 is built for commercial gyms, serious training studios, and home gym setups where versatile plate-loaded lat pulldown training is a back programming priority.

Plate-loaded ISO-lateral pulldown with universal adaptive rotating handles that freely follow the wrist from overhand through to underhand during the pull arc, covering every grip style from a single handle without switching attachments
Independent bilateral arm force racks on eight bearing contacts train each lat separately at up to 661 lbs bilateral so the stronger side cannot assist the weaker one across any rep of any set
Chest pad and front support enable strict unilateral single-arm pulldowns so each lat can be isolated to failure independently, with the torso anchored to prevent rotation under asymmetric single-arm loading
Three-position adjustable leg pad with elastic latch anchors users across different heights through maximum-effort bilateral sets, preventing the body from rising off the seat when the plate load creates upward force on the arms

Limited time offer

Get 20% off when you order 4 or more pieces of equipment!

Exercises and muscles targeted

Exercise	Muscles Targeted
Pulldown - Wide Overhand (bilateral)	Latissimus Dorsi - Upper and Outer Fibres (lat width and sweep, primary), Teres Major (primary), Posterior Deltoid (secondary), Rhomboids (secondary), Biceps Brachii (secondary)
Pulldown - Narrow Underhand (bilateral)	Latissimus Dorsi - Lower Fibres (lower lat thickness, primary), Biceps Brachii (significantly increased in supinated position, secondary), Teres Major, Rhomboids (secondary)
Pulldown - Neutral Grip (bilateral)	Latissimus Dorsi (balanced engagement across upper and lower fibres, primary), Teres Major (primary), Biceps Brachii (secondary), Brachialis (secondary), Middle Trapezius (secondary)
Pulldown - Unilateral Single Arm	Latissimus Dorsi (unilateral - one lat working to failure independently), Teres Major, Serratus Anterior (increased single-arm engagement), Core and Obliques (anti-rotation stabiliser)
Pulldown - Slow Eccentric	Latissimus Dorsi (eccentric stretch through full overhead arm extension, maximum hypertrophy stimulus), Teres Major (eccentric), Biceps Brachii (eccentric), Serratus Anterior (stabiliser through return)

Who this machine is built for

How to setup and use

Setting Up the DSH029 Universal Pulldown

Load Olympic plates evenly onto all four barbell bars, keeping amounts equal across left and right sides for balanced bilateral load through the independent arm frames.
Sit facing the machine and use the pneumatic seat lever to adjust height until both arms can extend fully overhead to the handles without the shoulder rising or the torso leaning backward.
Slide the leg pad (regulating rack) to one of three positions using the elastic latch until the pad rests firmly across the tops of both thighs, anchoring the lower body through the pulling set.
Grip both universal adaptive handles in the orientation that suits the target of the set: overhand for wide lat width emphasis, underhand for lower lat and bicep emphasis, or neutral for a balanced pull. The handles will rotate to follow the wrist naturally once the pull begins.
For unilateral single-arm training, place the non-working hand on the front chest pad support, grip one handle, and proceed with strict single-arm reps while keeping the chest against the pad.
Load with Dynasty Fitness Urethane Grip Plates across all four barbell bars for a clean, balanced bilateral setup.

Performing the Exercise

From the seated starting position with arms extended overhead gripping the handles, initiate the pulldown by driving the elbows downward and toward the hips while pulling the handles toward the upper chest.
Allow the universal handles to rotate naturally during the pull rather than fighting the rotation — the adaptive mechanism is designed to follow the forearm's natural position through the full arc.
Pull to peak lat contraction where the elbows reach the sides of the torso, holding for one to two seconds before beginning the return.
Return both handles to the fully overhead extended position under control over at least two to three seconds, allowing the lat to stretch completely at the top before each rep.
Keep the chest against the chest pad throughout the pull to prevent the torso from rocking backward, which would convert the pulldown into a partial rowing movement.

Owner's Manual

Access the complete assembly guide, parts list, and maintenance schedule below.

Download Owners Manual

Shipping & Delivery

All Dynasty Fitness equipment ships free across the 48 contiguous US states via freight carrier. If the product description says preorder, we'll send you an estimated delivery date via email.

Returns: Free within 30 days of delivery. Items must be in original condition and packaging. Refunds processed within 5 business days of return receipt.

Questions? Contact our team at:
📧Email: info@thedynastyfitness.com
📞Call: +1 (213)-584-0858

Need a buying guide?

Looking for one to one support before making final decision?
Feel free to contact us. Our expert support team would love to assist you.

Need Installation Help?

We have partnered with another company to help provide installation around the country. Please use the link below to see the price per machine for installation
See Installation Rates

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Universal Pulldown DSH029

$2,339.00

$2,339.00 ~~$2,599.00~~ 10% off (Save$260.00 )

Key Features

Universal Adaptive Rotating Handles

Rotating frames with φ30×φ22×265mm grips allow the handles to freely rotate through overhand to underhand during the pull. The wrist settles into its natural position at every point in the arc without being locked into a single orientation. Unlike fixed-angle handles that require grip changes between overhand and underhand sets, the universal handles cover the full grip range continuously within a single set or between sets from the same machine setup.

Eight-Bearing Arm System

Each independent arm force rack runs on four 6206 bearings, one 6004 bearing, one tapered roller bearing, and one knuckle bearing — four bearing contacts per arm, eight total. The tapered roller bearings handle the combined radial and axial load of the pulldown force vector. The knuckle bearings allow the rotating frame to articulate through the multi-plane movement of the universal handle rotation. This bearing combination keeps both arm travel and handle rotation smooth across every grip orientation and plate load.

Independent Bilateral Arm Frames

Left and right arm force racks pivot on separate axles with counterweight frames offsetting each arm's mechanical weight. Each arm works completely independently so neither side can assist the other during bilateral sets. The counterweight frames keep the effective resistance at the starting overhead position matched to the plate load rather than plates plus arm weight, keeping programming load targets accurate across every session.

Chest Pad and Front Support

The chest pad on the cushion rack provides an anterior torso anchor for unilateral single-arm pulldown training. Without torso anchoring, the body rotates toward the pulling arm as the single-arm load increases, which shifts the movement from a pure lat exercise into a partial rowing pattern. Gripping the front support with the non-working hand while pressing the chest against the pad eliminates this rotation and makes strict unilateral lat isolation practical.

Three-Position Leg Pad and Pneumatic Seat

The regulating rack adjusts to three positions via elastic latch for thigh anchoring across different user leg lengths. The seat travels on inner and outer slides with three idler wheels through a pneumatic lever for single-hand infinite height adjustment. Correct seat height aligns the shoulder with the arm pivot for an effective overhead-to-lower chest pull path — the pneumatic seat finds this alignment precisely for each user rather than approximating it from the nearest fixed position.

Product Information
Product Name	Universal Pulldown
Model	DSH029
Series	DSH Plate Loaded Series
Product Type	Plate-Loaded ISO-Lateral Universal Pulldown Machine
Primary Function	ISO-lateral vertical pulling with universal grip rotation — lat width and thickness development
Target Muscles	Latissimus Dorsi, Teres Major (primary), Rhomboids, Biceps Brachii, Posterior Deltoid (secondary)
Training Mode	Bilateral ISO-lateral or unilateral single-arm
Grade	Commercial
Colour	Matte Black

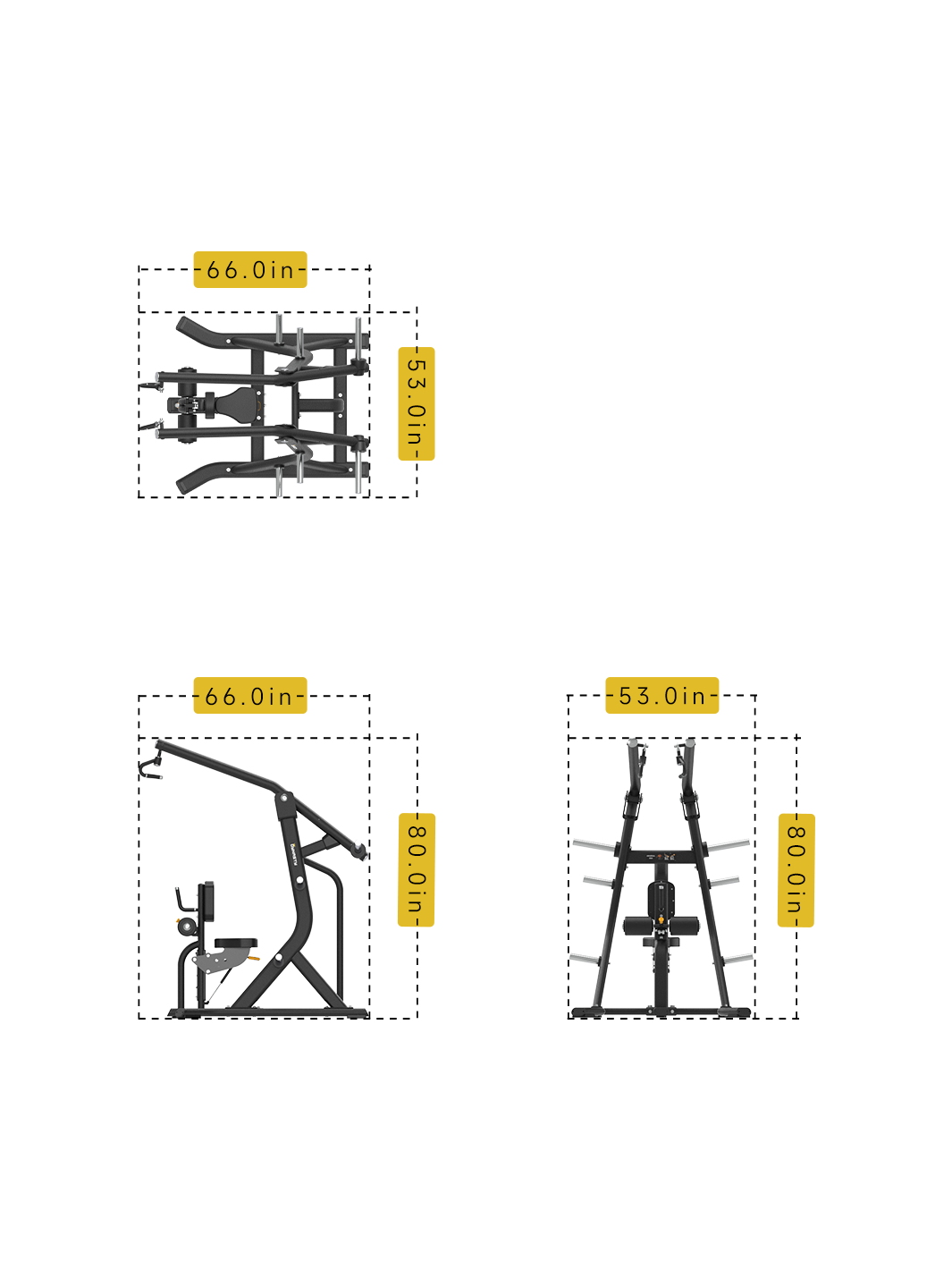

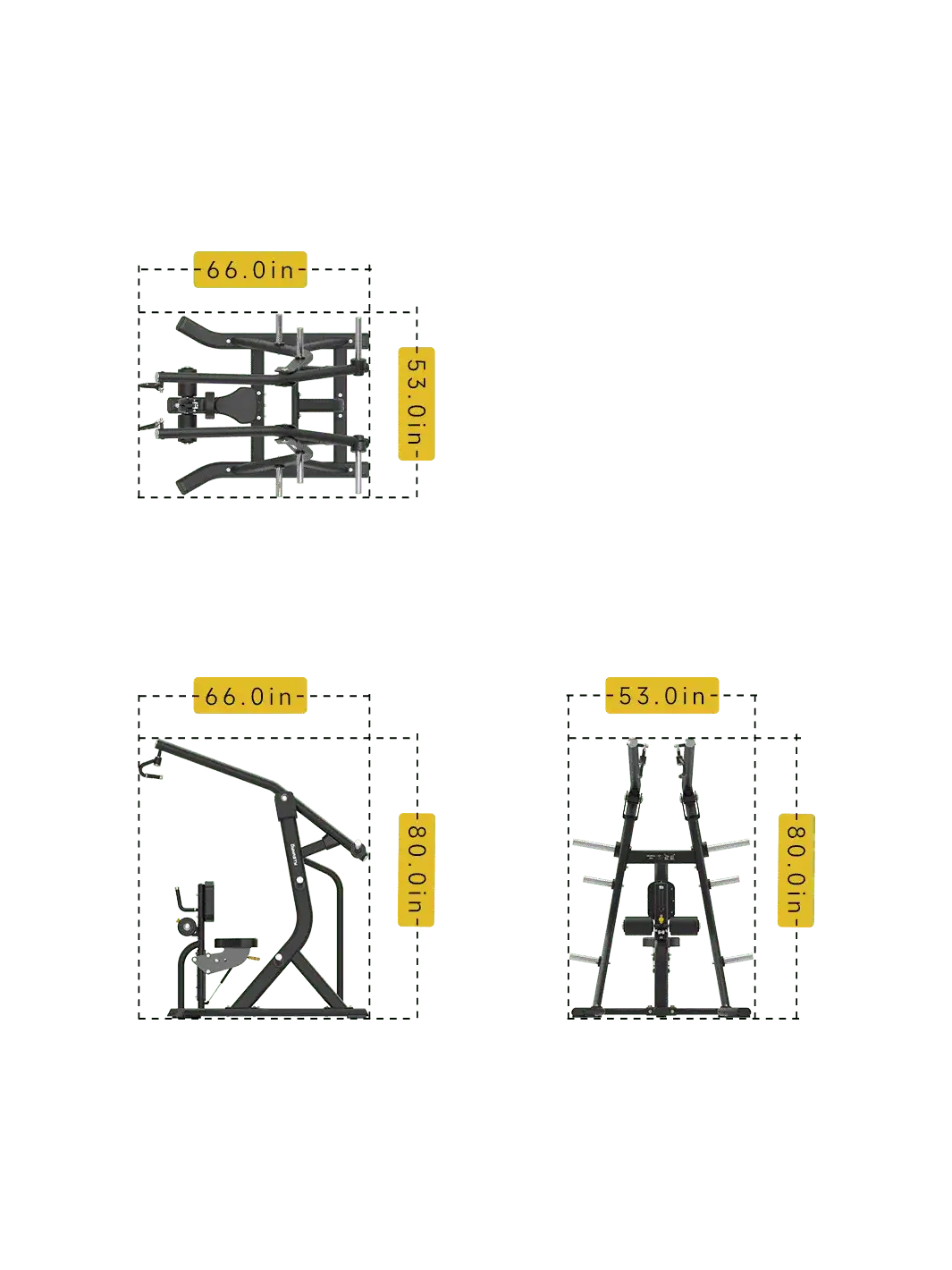

Dimensions and Weight
Length	65.7 in (167.0 cm)
Width	52.6 in (133.5 cm)
Height	80.2 in (203.7 cm)
Net Weight	355 lbs (161 kg)
Load Capacity
Maximum Load Capacity	661 lbs (300 kg) — 330 lbs (150 kg) per side
Loading System	Plate-loaded — Olympic plates, 4 barbell bars across 2 independent arm frames
Arm and Bearing System
Arm Frames	2 x independent ISO-lateral arm force racks with counterweight frames
Bearing System	6206 bearings x4, 6004 bearings x2, tapered roller bearings x2, knuckle bearings x2 (8 total)
Handles	Universal adaptive rotating — φ30×φ22×265mm x2 and φ30×φ22×240mm x1, overhand to underhand rotation
Adjustability and Support
Seat Adjustment	Pneumatic infinite — single-hand, 3 idler wheel slide system
Leg Pad Positions	3 positions — elastic latch regulating rack
Chest Pad	Anterior torso anchor — supports unilateral single-arm training
Frame and Construction
Main Frame Tubing	PT60×120×2.5mm rectangular steel
Floor Feet	3 x rubber feet
Finish	Matte black powder coat
Indoor Use Only	Yes

Q: How do the universal adaptive handles differ from standard pulldown handles?
A: Standard pulldown handles fix the wrist in one orientation for the entire set. The universal adaptive handles on the DSH029 rotate freely through the full range from overhand to underhand, allowing the wrist to settle into its natural position at each point in the arc rather than holding a forced angle. This means the forearm, elbow, and shoulder can all align naturally through the pull, which reduces joint stress and allows the lat to carry the full effort without wrist or elbow discomfort interrupting the set.

Q: Can I switch between overhand and underhand within the same set?
A: Yes. Because the handles rotate freely, the grip orientation can change within a set as the user naturally rotates the forearms during the pull. Some users start each rep with a slightly overhand orientation at the top and arrive at a neutral or underhand position at peak contraction, which is the natural forearm supination pattern of the pulling movement. The handles accommodate this automatically without the user consciously managing it.

Q: How does this machine differ from the Front Pulldown DSH026?
A: Both are ISO-lateral plate-loaded pulldown machines with independent bilateral arms. The DSH026 uses fixed extended handles where the user selects a grip position at the handle before the set begins. The DSH029 uses universal adaptive rotating handles that change grip orientation during the pull arc, covering overhand through underhand continuously from a single handle setup. The DSH029's handle rotation also produces a different arm movement path through the pull due to the rotating frame mechanism and the knuckle bearing articulation.

Q: What grip style produces the best lat width development?
A: Wide overhand grip with the hands toward the outer section of the handles, elbows driving downward and outward during the pull. This creates the greatest shoulder abduction at the start of the pull and targets the upper and outer lat fibres that produce the V-taper width when viewed from the front. For lower lat thickness and depth that complements width, rotate to underhand narrow grip where the elbows track closer to the body and the lower lat and teres major carry more of the load.

Q: How do I perform a clean single-arm pulldown on the DSH029?
A: Sit with the chest pressed against the chest pad and grip the front support handle with the non-working hand. This anchors the torso so it cannot rotate toward the working arm as load increases. Grip one universal handle at your chosen position and pull the arm down as in a bilateral set, keeping the chest against the pad throughout. Complete all reps on one arm before switching. The chest pad contact is the key detail — without it the torso rotates and the movement becomes a partial row.

Q: What Dynasty Fitness machines pair with the DSH029 for a complete back programme?
A: The DSH029 covers ISO-lateral vertical pulling with universal grip rotation. Pair it with the Front Pulldown DSH026 for fixed-handle ISO-lateral pulldowns, the Lat Pulldown DSH006 for standard single-bar vertical pulling variation, and the High Row DSH027 for a high-to-low horizontal pull that complements vertical pulldowns with a different angle. For mid-back horizontal rowing, the Seated Row DSH005, Low Row DSH004, and Smith Row DSH059 provide the full horizontal pull spectrum alongside the vertical work from the DSH029.
